© 2014 TE Connectivity family of companies
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
TOOLING ASSISTANCE CENTER
1-800-722-1111
PRODUCT INFORMATION
1-800-522-6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Application Specification
114-25003
22 DEC 14 Rev N
NOTE
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and inches].
Unless otherwise specified, dimensions have a tolerance of ±0.13 [±.005] and angles have a tolerance of ±2°. Figures and
illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of AMPMODU MOD IV, IV1/2, and V Receptacle
Contacts and Housings. These crimp snap-in receptacle contacts with insulation support will accept a wire size
range of 32-20 AWG and mate with 0.64 mm [.025 in.] square or round posts.
The AMPMODU MOD IV contacts represent standard mating pressure, while the AMPMODU MOD IV1/2 and
V contacts represent intermediate and high pressure respectively.
Housing configurations include single- and double-rows on 2.54 mm [.100 in.] centerlines up to 70 positions. All
three types of contacts are used with AMPMODU MOD IV connector housings. Some of the housing options
include detent latching, polarization, and bonded strain relief/pull tabs.
When corresponding with TE Connectivity personnel, use the terminology provided in this specification to
facilitate inquiries for information. Basic terms and features of this product are provided in Figure 1.

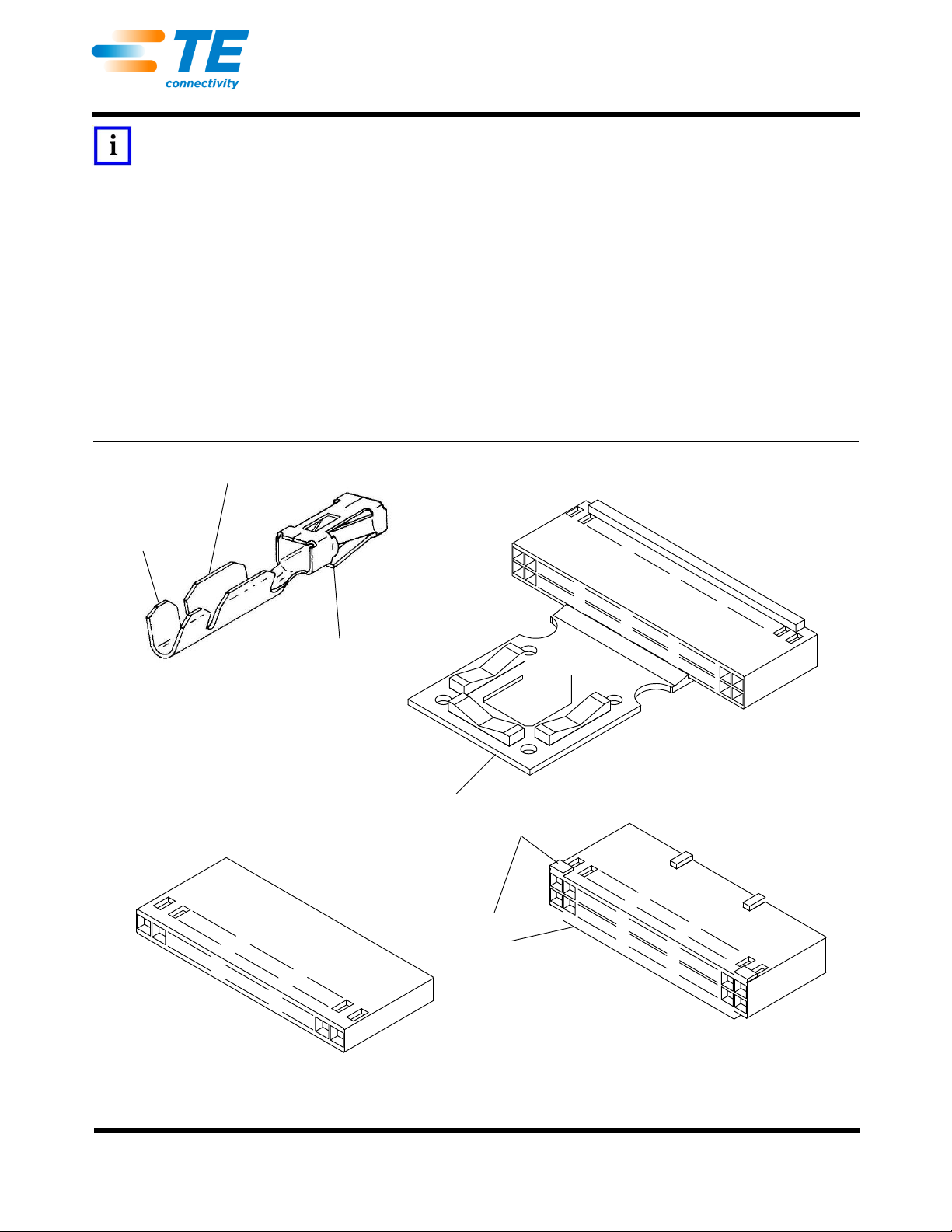

Figure 1
AMPMODU* MOD IV, IV1/2, and V
Receptacles and Housings
Locking Lance
AMPMODU MOD IV
Double-Row Receptacle
Polarized Housing with
Strain Relief/Pull Tab (Typ)
AMPMODU MOD IV
Single-Row
Receptacle Housing
(Non-Polarized) (Typ)
Wire Barrel
Insulation Barrel
AMPMODU MOD IV
Receptacle Contact (Typ)
Strain Relief Pull Tab
Polarization
Features
AMPMODU MOD IV
Double-Row Receptacle
Housing (Polarized) (Typ)
