2SD1628
No.1781-1/6
Applications
•
Strobe DC-DC converters, relay drivers, hammer drivers, lamp drivers, motor drovers
Features
•
Low saturation voltage
•
High h
FE
•
Large current capacity
•
Very small size making it easy to provide highdensity, small-sized hybrid IC’s
•
Halogen free compliance
Specifi cations
Absolute Maximum Ratings
at Ta=25°C
Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage V
CBO
60 V
Collector-to-Emitter Voltage V
CEO
20 V
Emitter-to-Base Voltage V
EBO
6V
Collector Current I
C
5A
Collector Current (Pulse) I
CP
8A
Continued on next page.

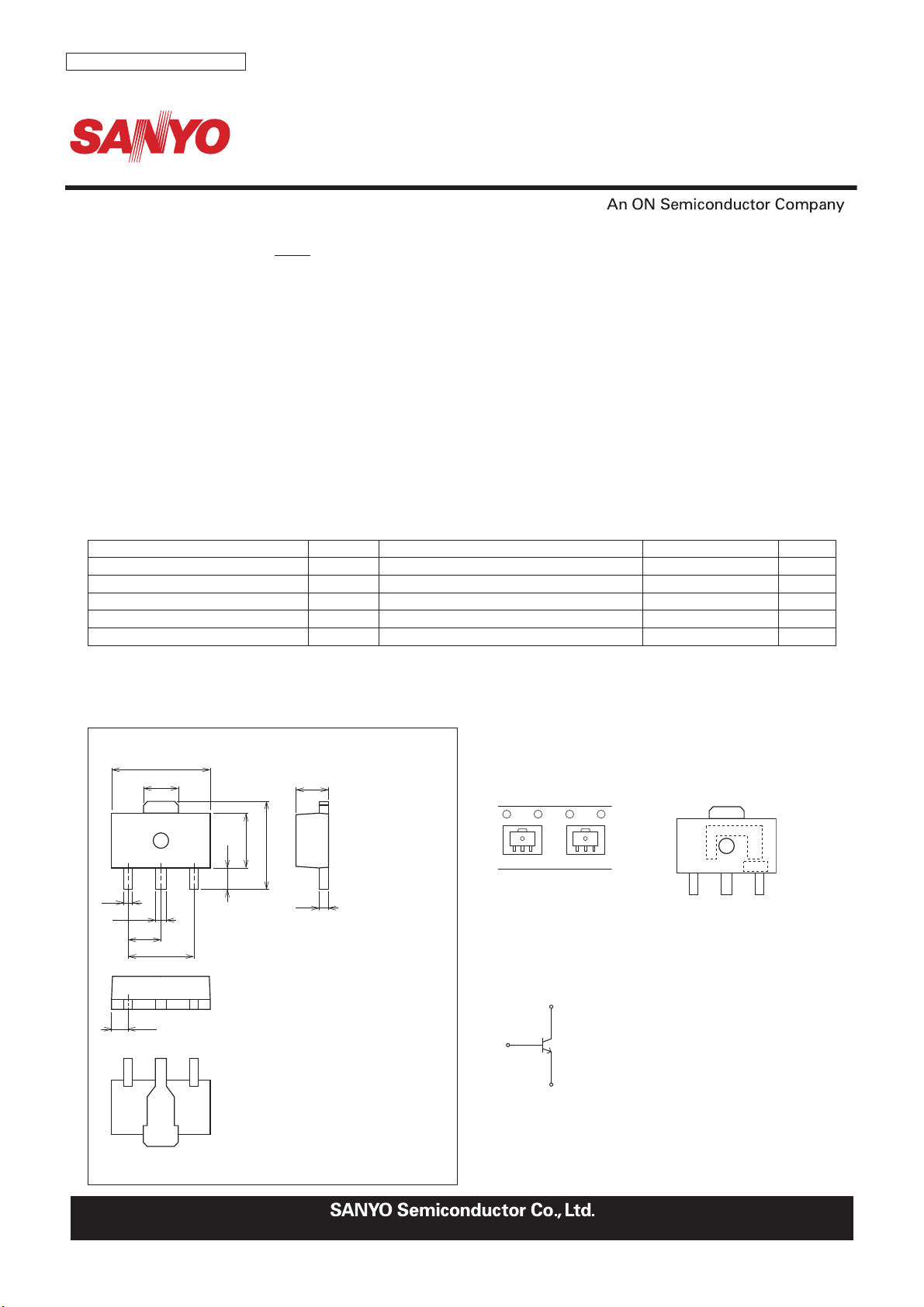

Package Dimensions
unit : mm (typ)
7007B-004
Ordering number : EN1781B
82212 TKIM/21599TH (KT)/5277KI/3045MW, TS
SANYO Semiconductors
DATA SHEET
http://www.sanyosemi.com/en/network/
Product & Package Information
• Package : PCP
• JEITA, JEDEC : SC-62, SOT-89, TO-243
•
Minimum Packing Quantity
: 1,000 pcs./reel
Packing Type: TD Marking
Electrical Connection
TD
1 : Base
2 : Collector
3 : Emitter
SANYO : PCP
2.5
4.0
1.0
1.5
0.5
0.4
3.0
4.5
1.6
0.4
123
1.5
0.75
Top View
Bottom View
2SD1628G-TD-E
2SD1628G-TD-H
2SD1628F-TD-E
2SD1628F-TD-H
DK
LOT No.
RANK
2
3
1
2SD1628
NPN Epitaxial Planar Silicon Transistor
High-Current Switching Applications
