74AUP1G34
Document number: DS35155 Rev. 5 - 2
1 of 16
www.diodes.com
March 2015
© Diodes Incorporated
74AUP1G34
SINGLE BUFFER GATE
Description
The Advanced,
Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP1G34 is a single buffer gate with a standard push-
pull
output designed for operation over a power supply range of 0.8
V to
3.6V.
The device is fully specified for partial power down applications
using I
OFF
. The I
OFF
circuitry disables the output preventing dama
ging
current backflow when the device is powered down.
The gate performs the positive Boolean function:
AY =
Features
• Advanced Ultra Low Power (AUP) CMOS
• Supply Voltage Range from 0.8V to 3.6V
• ±4mA Output Drive at 3.0V
• Low Static Power Consumption
I
CC
< 0.9µA
• Low Dynamic Power Consumption
C
PD
= 6.3pF (Typical at 3.6V)
• Schmitt Trigger Action at all inputs makes the circuit t
olerant for
slower input rise and fall time.
The hysteresis is typically
250mV at V
CC
= 3.0V.
• I
OFF
Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114)
• Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Leadless Packages Named per JESD30E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

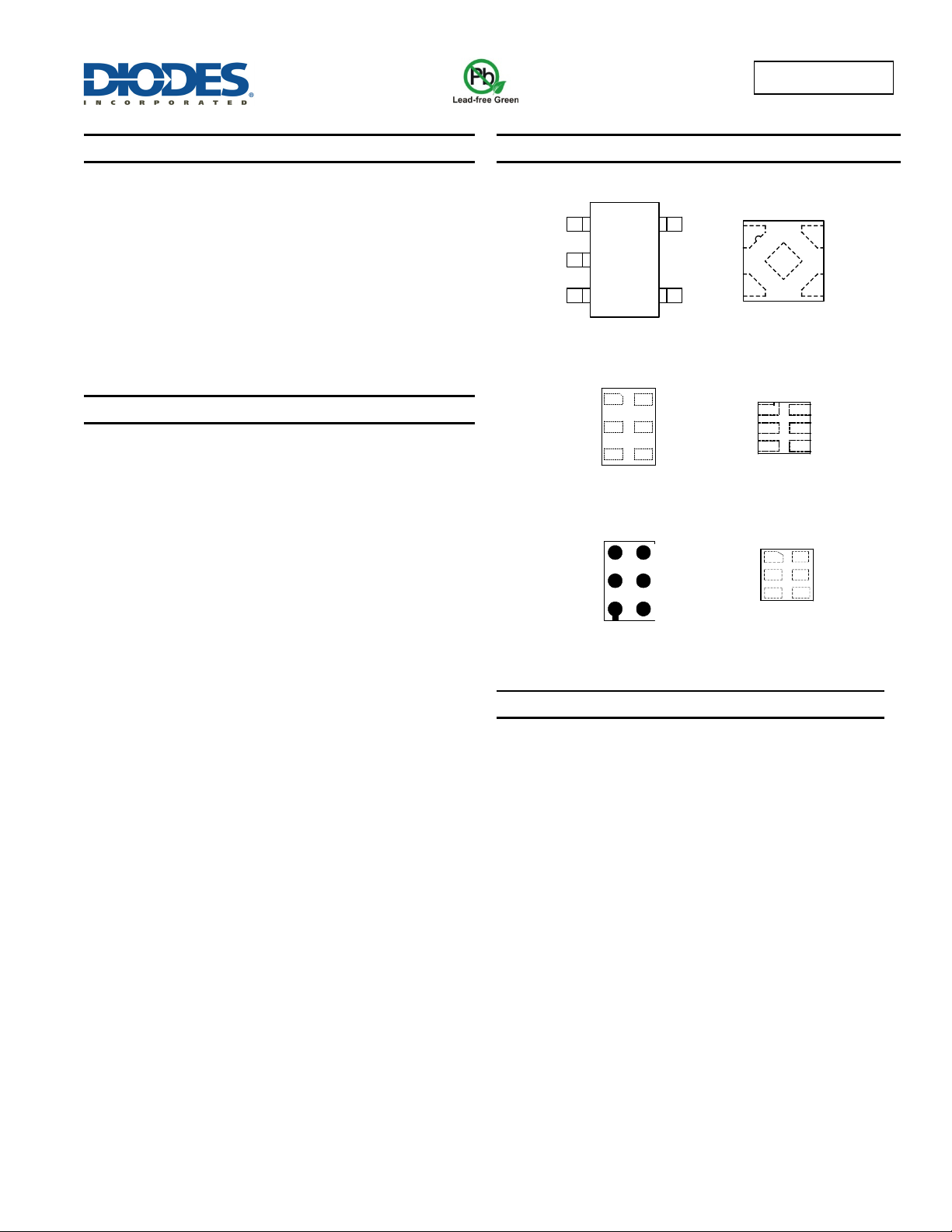

Pin Assignments
NC
Y
Vcc
SOT353
A
Packages not to scale
X2-DFN1409-6
Chip Scale
Alternative
(
Bottom View
)
GND
X1-DFN1010-6
X2-DFN0808-4
1
2
3
4
5
GND
A
NC
Vcc
Y
X2-DFN1010-6
1
2
3
4
5
(
Top View
)
(
Top View
)
(
Top View
)
(
Top View
)
GND
A
Y
NC
NC
Vcc1
6
5
4
3
2
NC
GND
Vcc
Y
NC
A
1
2
3 4
5
6
NC
GND
Vcc
Y
NCA
1
2
3 4
5
6
2
4
5
6
3
1
( Top View )
X2-DFN1410-6
A
GND
Vcc
Y
NC
NC
Applications
• Suited for Battery and Low Power Needs
• Wide Array of Products Such As:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4 Y
5 NC
6 Vcc
