74AUP2G126
Document number: DS36145 Rev. 1 - 2
1 of 11
www.diodes.com
January 2015
© Diodes Incorporated
NEW PROD UCT
74AUP2G126
NEW PROD UCT
DUAL 3-STATE BUFFER
Description
The Advanced Ultra Low Power (AUP) CMOS logic family is
designed for low power and extended battery life in portable
applications.
The 74AUP2G126 is a dual 3-State Buffer. Each buffer has an
individual output enable pin while asserted LOW will place the output
in a high impedance state. The device is designed for operation over
a power supply range of 0.8V to 3.6V. The device is fully specified
for partial power down applications using I
OFF
. The I
OFF
circuitry
disables the output preventing damaging current backflow when the
device is powered down.
Features
Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption
I
CC
< 0.9µA
Low Dynamic Power Consumption
C
PD
= 6pF Typical at 3.6V
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for
Slower Input Rise and Fall Time. The hysteresis is typically
250mV at V
CC
= 3.0V
I
OFF
Supports Partial-Power-Down Mode Operation
ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages per JESD30E
DFN1210 Denoted as X2-DFN1210-8
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

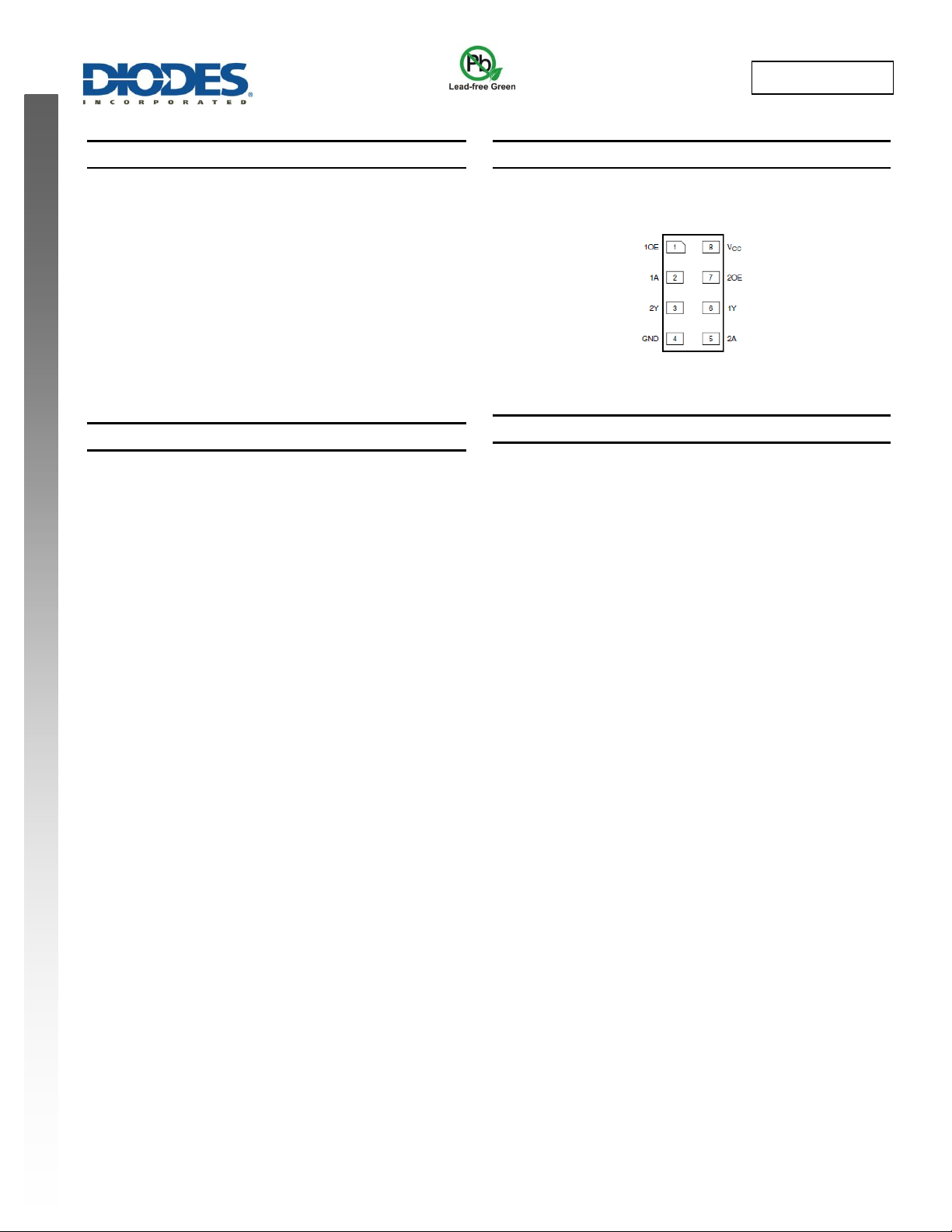

Pin Assignments
(Top View)
X2-DFN1210-8
Applications
Suited for Battery and Low Power Needs
Wide Array of Products Such as:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSD, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
