Semiconductor Components Industries, LLC, 2012
October, 2012 − Rev. 8
1 Publication Order Number:
MC74LCX125/D
MC74LCX125
Low-Voltage CMOS
Quad Buffer
With 5 V−Tolerant Inputs and Outputs
(3−State, Non−Inverting)
The MC74LCX125 is a high performance, non−inverting quad
buffer operating from a 2.3 to 3.6 V supply. High impedance TTL
compatible inputs significantly reduce current loading to input drivers
while TTL compatible outputs offer improved switching noise
performance. A V
I
specification of 5.5 V allows MC74LCX125 inputs
to be safely driven from 5.0 V devices. The MC74LCX125 is suitable
for memory address driving and all TTL level bus oriented transceiver
applications.
Current drive capability is 24 mA at the outputs. The Output Enable
(OE
n) inputs, when HIGH, disable the outputs by placing them in a
HIGH Z condition.
Features
Designed for 2.3 to 3.6 V V
CC
Operation
5.0 V Tolerant − Interface Capability With 5.0 V TTL Logic
Supports Live Insertion and Withdrawal
I
OFF
Specification Guarantees High Impedance When V
CC
= 0 V
LVTTL Compatible
LVCMOS Compatible
24 mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current in all Three Logic States (10 mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds 500 mA
ESD Performance: Human Body Model >2000 V
Machine Model >200 V
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant

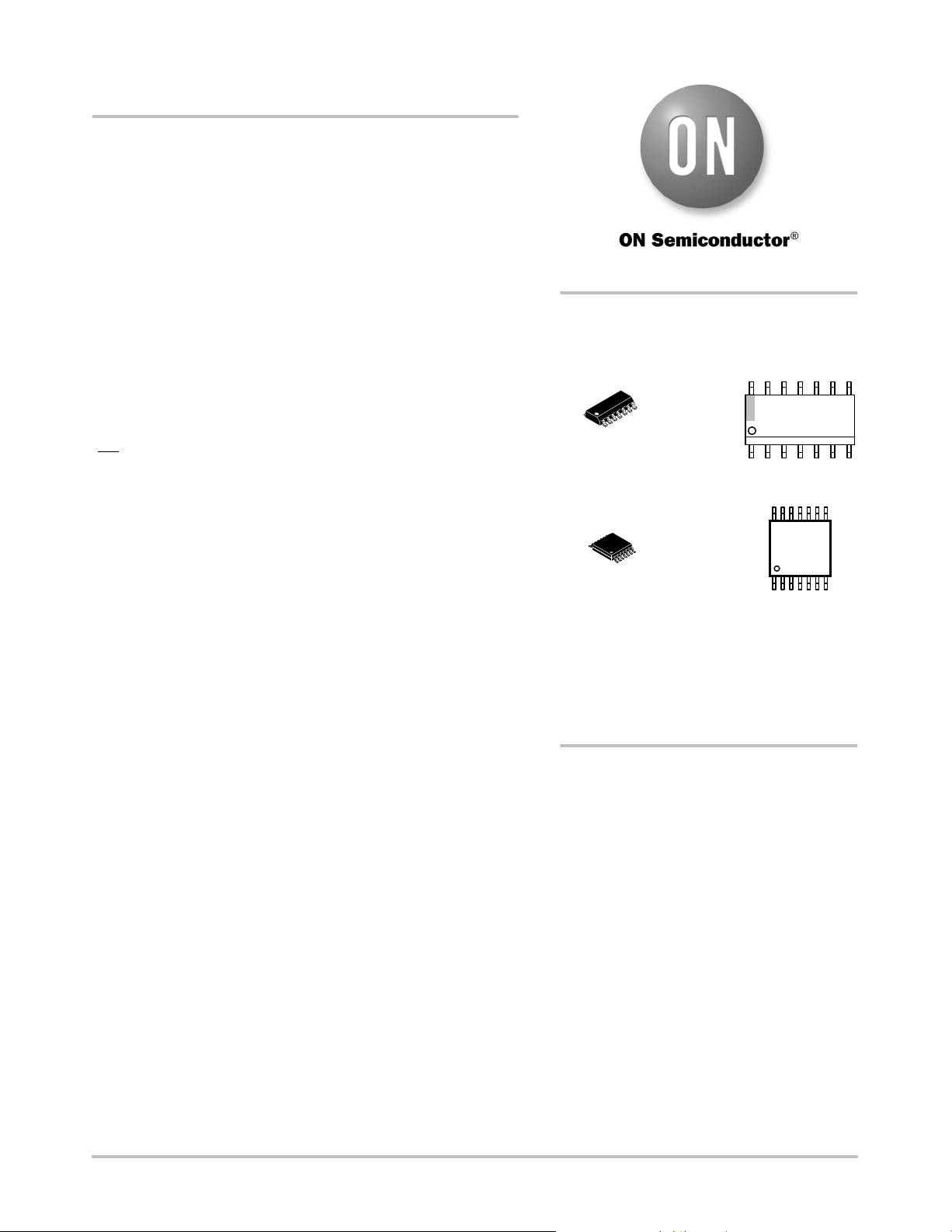

MARKING
DIAGRAMS
TSSOP−14
DT SUFFIX
CASE 948G
14
1
SOIC−14
D SUFFIX
CASE 751A
14
1
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
LCX125G
AWLYWW
1
14
LCX
125
ALYWG
G
1
14
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G or G = Pb−Free Package
(Note: Microdot may be in either location)
