AP1695-20C
Document number: DS37538 Rev. 1 - 2
1 of 15
www.diodes.com
March 2015
© Diodes Incorporated
AP1695-20C
NEW PROD UCT
OFFLINE, HIGH PF, HIGH EFFICIENCY DIMMABLE LED DRIVER IC
Description
The AP1695-20C is a high performance AC/DC power factor corrector
for mains dimmable LED driver applications. The device uses Pulse
Frequency Modulation (PFM) technology to regulate output current
while achieving high power factor and low THD. It operates as a BCM
(Boundary Conduction Mode) which is good for EMI.
The AP1695-20C internally integrates a high voltage MOSFET which
can realize a lower BOM cost. The AP1695-20C provides accurate
constant current (CC) regulation while removing the opto-coupler and
secondary control circuitry. It also eliminates the need of loop
compensation circuitry while maintaining stability. It can meet the
requirement of IEC6100-3-2 harmonic standard.
The AP1695-20C features low start-up current, low operation current.
It adopts valley on switching mode to achieve high efficiency. It also
has rich protection features including over voltage, short circuit, over
temperature protection.
The AP1695-20C provides the dimmable LED driver with a wide
dimmer compatibility including leading edge and trailing edge dimmer.
The AP1695-20C can achieve deep dimming down to 1%, while the
dimming curve is compliant with the standard of NEMA SSL6.
The AP1695-20C is available in SO-7 package.
Features
Boundary Conduction Mode (BCM) Operation to Achieve High-
efficiency
High PF and Low THD (PF>0.9, THD<30%)
High Efficiency without Dimmer
Wide Range of Dimmer Compatibility
Dimming Curve Compliant with NEMA SSL6
Low Start-up Current
Tight LED Current
Tight LED Open Voltage
Valley-mode Switching to Minimize the Transition Loss
Easy EMI
Internal Protections:
Under Voltage Lock Out (UVLO)
Leading-edge Blanking (LEB)
Output Short Protection
Output Open Protection
Over Temperature Protection
Flexible for Design with Small Form Factor and Very Low BOM
Cost
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

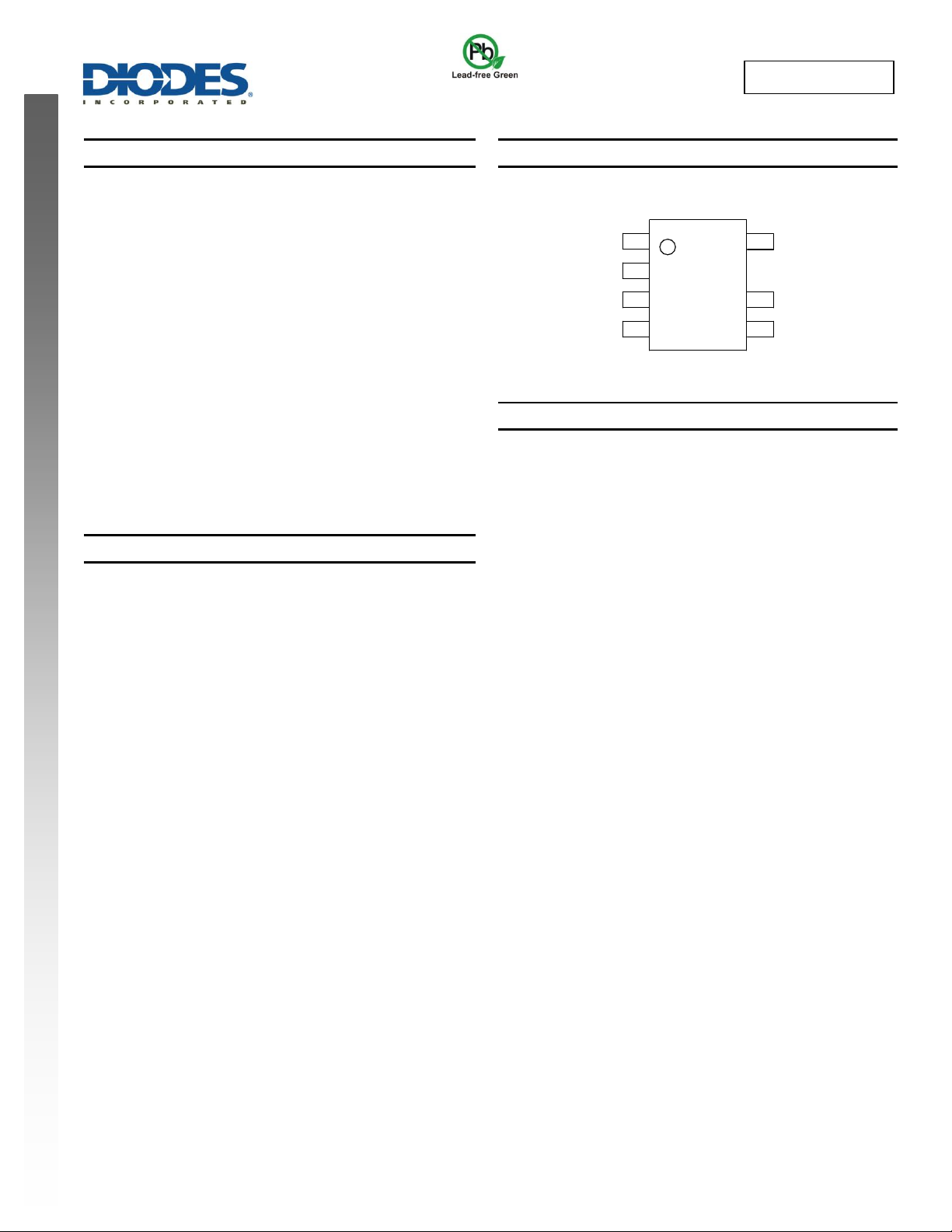

Pin Assignments
(Top View)
1
2
3
4
7
6
5
S
CS
RI
GND
FB
VCC
Drain
SO-7
Applications
Mains Dimmable LED Lighting
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
