1
Features
• Utilizes the AVR
®
RISC Architecture
• AVR – High-performance and Low-power RISC Architecture
– 118 Powerful Instructions – Most Single Clock Cycle Execution
– 32x8GeneralPurposeWorkingRegisters
– Up to 10 MIPS Throughput at 10 MHz
• Data and Non-volatile Program Memory
– 2K Bytes of In-System Programmable Flash
Endurance 1,000 Write/Erase Cycles
– 128 Bytes of SRAM
– 128 Bytes of In-System Programmable EEPROM
Endurance: 100,000 Write/Erase Cycles
– Programming Lock for Flash Program and EEPROM Data Security
• Peripheral Features
– One 8-bit Timer/Counter with Separate Prescaler
– One 16-bit Timer/Counter with Separate Prescaler,
Compare, Capture Modes and 8-, 9-, or 10-bit PWM
– On-chip Analog Comparator
– Programmable Watchdog Timer with On-chip Oscillator
– SPI Serial Interface for In-System Programming
–FullDuplexUART
• • Special Microcontroller Features
– Low-power Idle and Power-down Modes
– External and Internal Interrupt Sources
• • Specifications
– Low-power, High-speed CMOS Process Technology
– Fully Static Operation
• Power Consumption at 4 MHz, 3V, 25°C
– Active: 2.8 mA
– Idle Mode: 0.8 mA
– Power-down Mode: <1 µA
• I/O and Packages
– 15 Programmable I/O Lines
– 20-pin PDIP and SOIC
• Operating Voltages
– 2.7 - 6.0V (AT90S2313-4)
– 4.0 - 6.0V (AT90S2313-10)
• Speed Grades
– 0 - 4 MHz (AT90S2313-4)
– 0 - 10 MHz (AT90S2313-10)

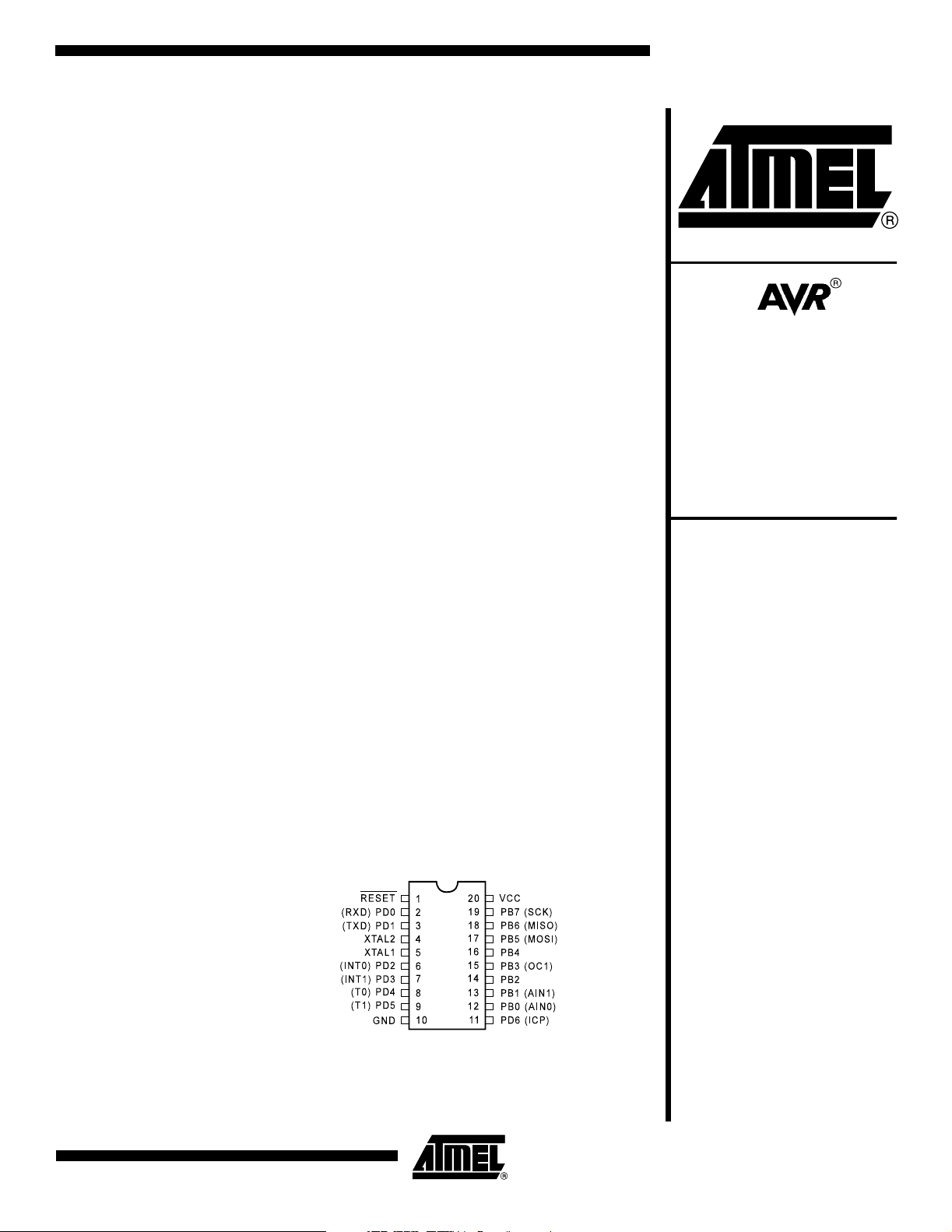

Pin Configuration
PDIP/SOIC
8-bit
Microcontroller
with 2K Bytes
of In-System
Programmable
Flash
AT90S2313
Rev. 0839I–AVR–06/02
