8738A–SMEM–3/11
Atmel CryptoAuthentication Starter Kit
Atmel AT88CK101STK8
Quick Start Guide
Features
Installing Atmel CryptoAuthentication Evaluation
Studio (ACES)
Powering the board
Reading the device configuration information
Atmel ATSHA204 device
Contents
Atmel AT88CK101BK8 daughter board
Atmel AT88Microbase – AVR base module
6” USB cable
Atmel ATSHA204 samples
Introduction
Atmel
®
AT88CK101STK8 is an Atmel CryptoAuthentication starter kit, which can be used as a reference design
for an USB application requiring the Atmel CryptoAuthentication product family.

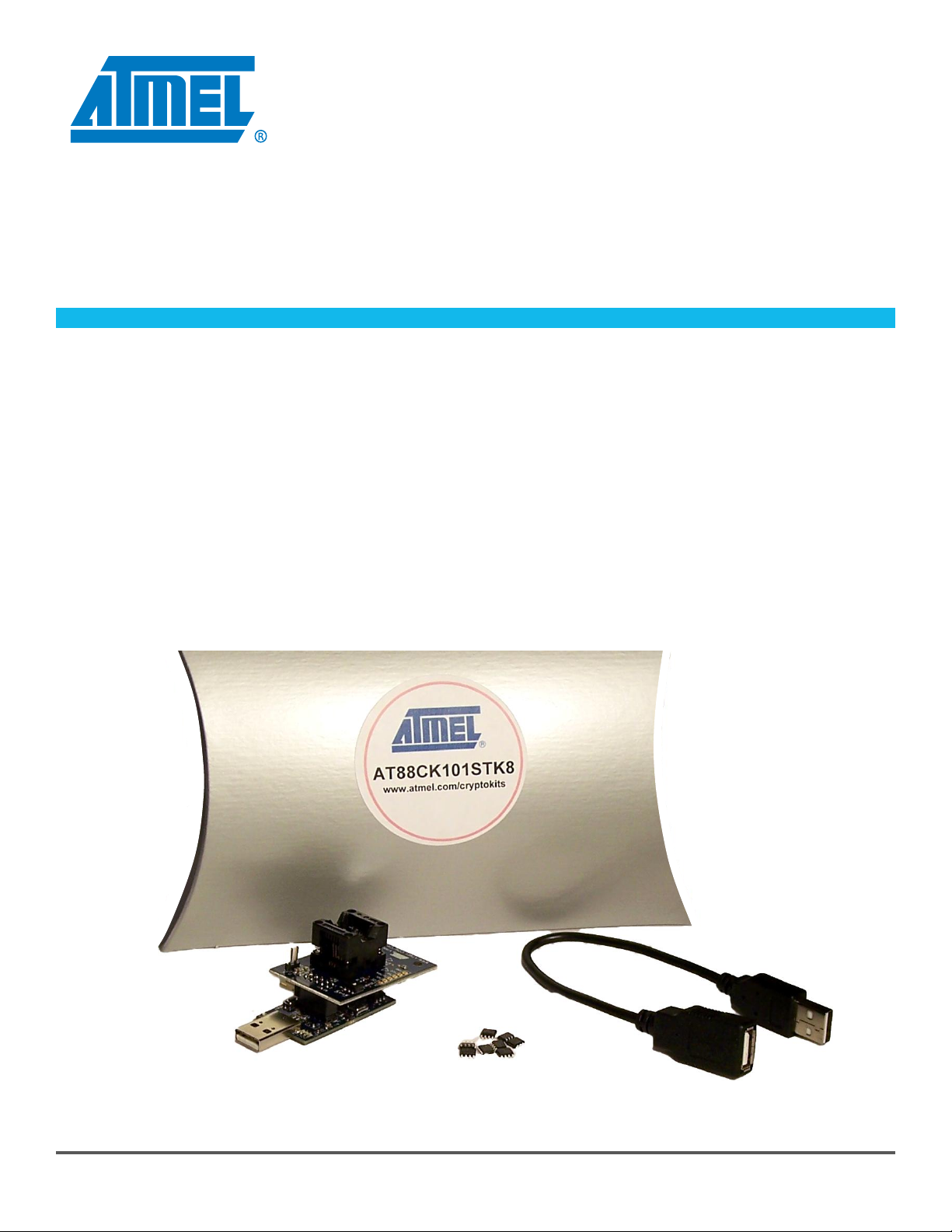

Figure 1. Atmel AT88CK101STK8 starter kit
