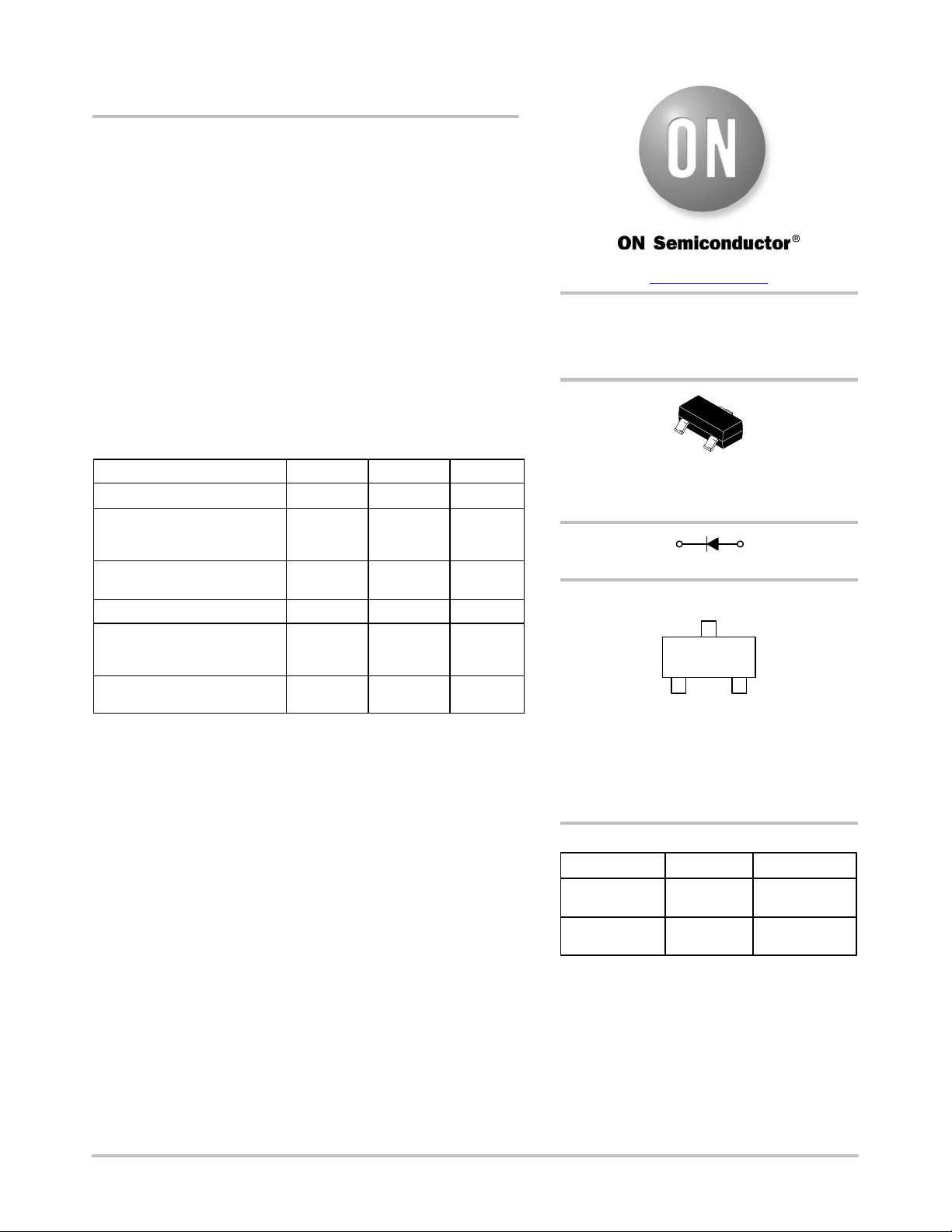

BAS40L, SBAS40L
Schottky Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
Features
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating Symbol Value Unit
Reverse Voltage V
R
40 V
Forward Power Dissipation
@ T
A
= 25°C
Derate above 25°C
P
F
225
1.8
mW
mW/°C
Operating Junction and Storage
Temperature Range
T
J,
T
stg
−55 to +150 °C
Forward Continuous Current I
F
120 mA
Forward Surge Current
t v 1 s
t v 10 ms
I
FSM
200
600
mA
Thermal Resistance (Note 1)
Junction−to−Ambient (Note 2)
R
q
JA
508
311
°C/W
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR−4 @ minimum pad.
2. FR−4 @ 1.0 x 1.0 in pad.
Device Package Shipping
†
ORDERING INFORMATION
SOT−23 (TO−236)
CASE 318
STYLE 8
40 VOLTS
SCHOTTKY BARRIER DIODES
MARKING DIAGRAM
3
CATHODE
1
ANODE
B1 M G
G
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
s
Brochure, BRD8011/D.
BAS40LT1G,
SBAS40LT1G
SOT−23
(Pb−Free)
3,000 /
Tape & Reel
B1 = Specific Device Code
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may vary
depending upon manufacturing location.
BAS40LT3G,
SBAS40LT3G
SOT−23
(Pb−Free)
10,000 /
Tape & Reel
www.onsemi.com
