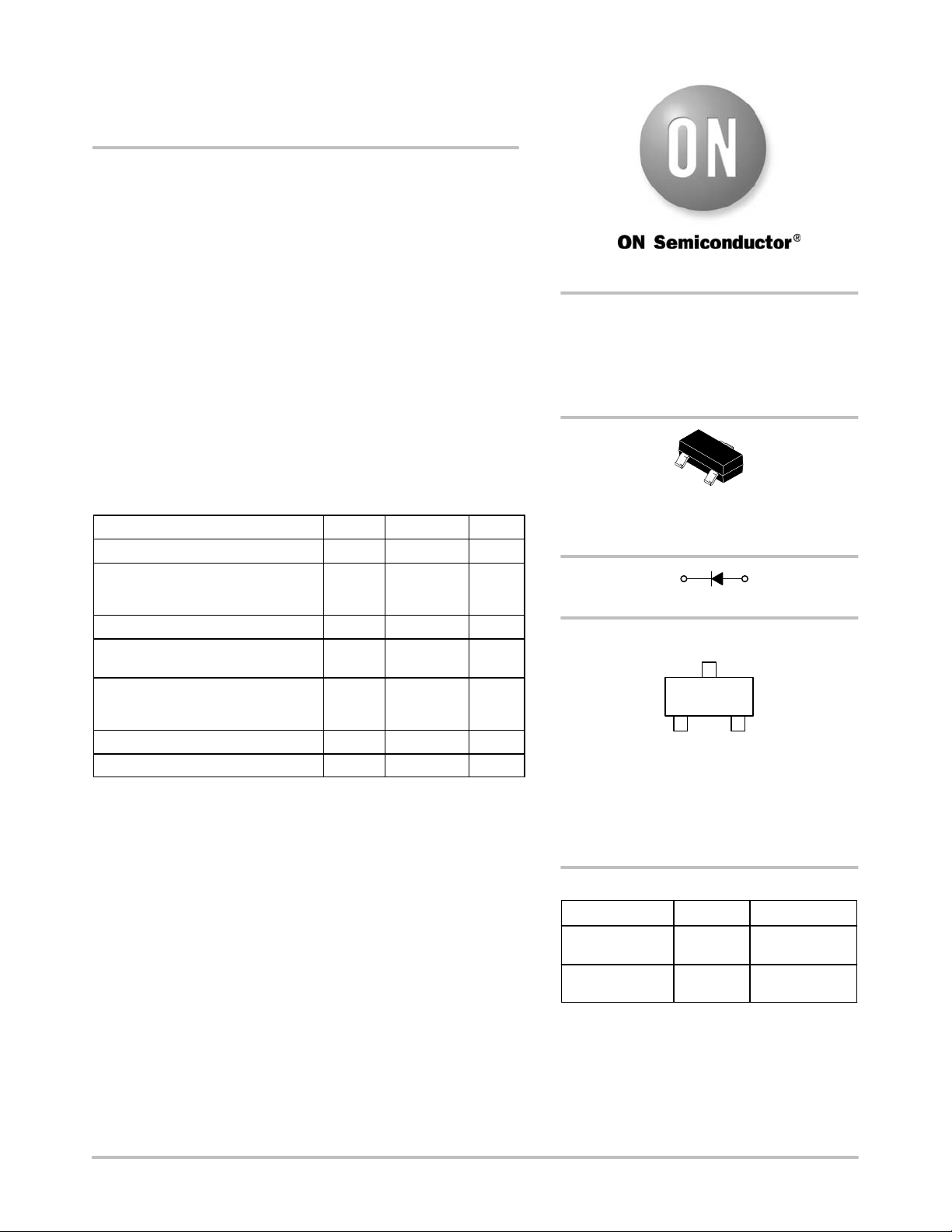

BAT54LT1G,
NSVBAT54LT1G
Schottky Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 Volts (Typ) @ I
F
= 10 mAdc
• AEC Qualified and PPAP Capable
• NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS (T
J
= 125°C unless otherwise noted)
Rating
Symbol Value Unit
Reverse Voltage V
R
30 Volts
Forward Power Dissipation
@ T
A
= 25°C
Derate above 25°C
P
F
200
2.0
mW
mW/°C
Forward Current (DC) I
F
200 Max mA
Non−Repetitive Peak Forward Current
t
p
< 10 msec
I
FSM
600
mA
Repetitive Peak Forward Current
Pulse Wave = 1 sec,
Duty Cycle = 66%
I
FRM
300
mA
Junction Temperature T
J
−55 to +125 °C
Storage Temperature Range T
stg
−55 to +150 °C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
30 VOLTS
SILICON HOT−CARRIER
DETECTOR AND SWITCHING
DIODES
MARKING DIAGRAM
3
CATHODE
1
ANODE
SOT−23 (TO−236)
CASE 318
STYLE 8
(Note: Microdot may be in either location)
Device Package Shipping
†
ORDERING INFORMATION
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
BAT54LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
http://onsemi.com
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
JV3 = Device Code
M = Date Code
G = Pb−Free Package
1
JV3 M G
G
NSVBAT54LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
