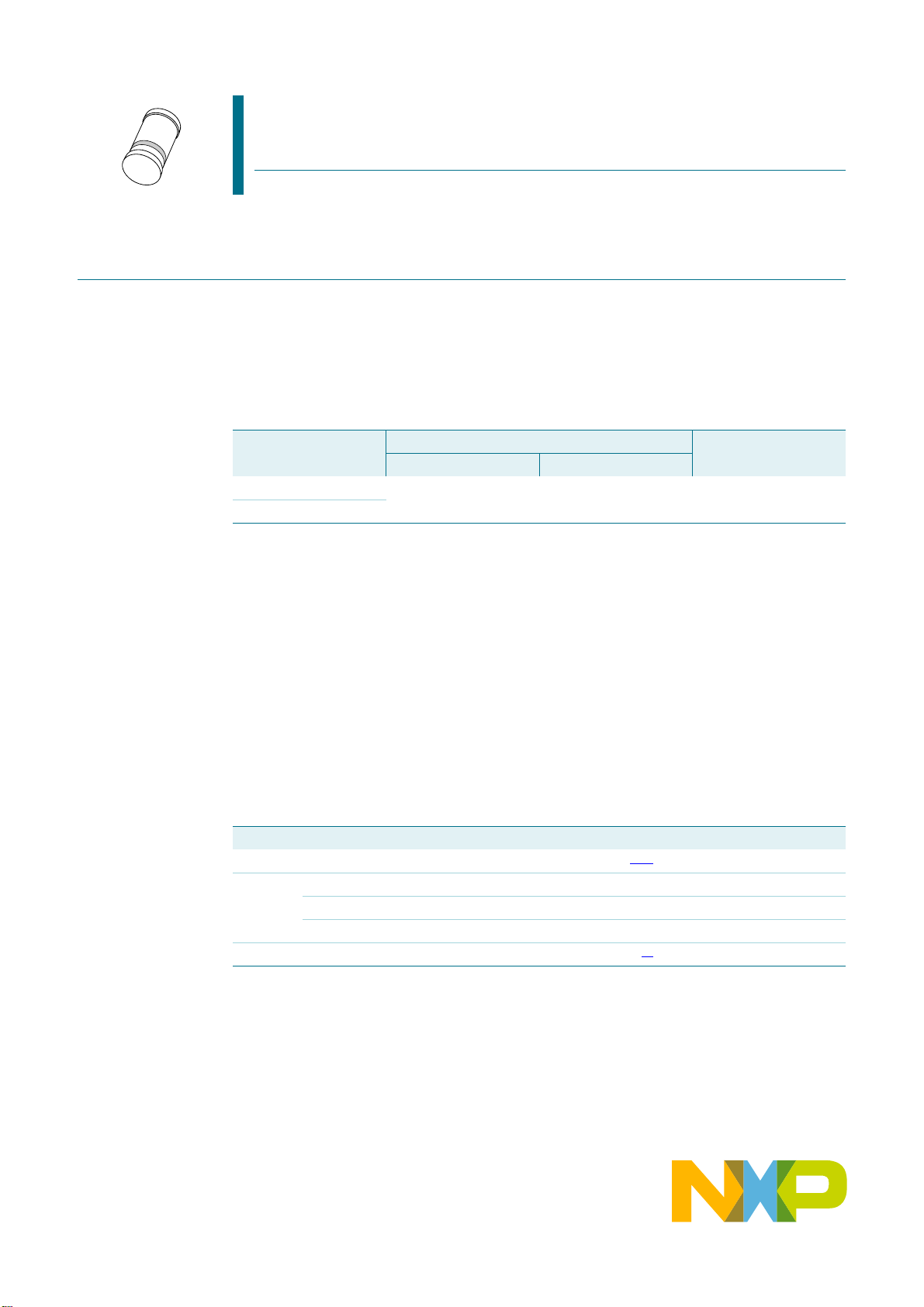

1. Product profile
1.1 General description
Single general-purpose switching diodes, fabricated in planar technology, and
encapsulated in small hermetically sealed glass SOD80C Surface-Mounted
Device (SMD) packages.
1.2 Features and benefits
1.3 Applications
1.4 Quick reference data
[1] Pulse test: t
p
≤ 300 μs; δ≤0.02.
[2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
[3] When switched from I
F
= 30 mA to I
R
=30mA; R
L
= 100 Ω; measured at I
R
=3mA.
BAV102; BAV103
Single general-purpose switching diodes
Rev. 4 — 6 August 2010 Product data sheet
Table 1. Product overview
Type number Package Configuration
NXP JEITA
BAV102 SOD80C - single
BAV103
High switching speed: t
rr
≤ 50 ns Low capacitance: C
d
≤ 5pF
Low leakage current Small hermetically sealed glass
SMD package
High-speed switching Voltage clamping
General-purpose switching Reverse polarity protection
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
I
F
forward current
[1][2]
- - 250 mA
V
R
reverse voltage
BAV102 - - 150 V
BAV103 - - 200 V
t
rr
reverse recovery time
[3]
--50ns
