BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
1 of 7
www.diodes.com
June 2016
© Diodes Incorporated

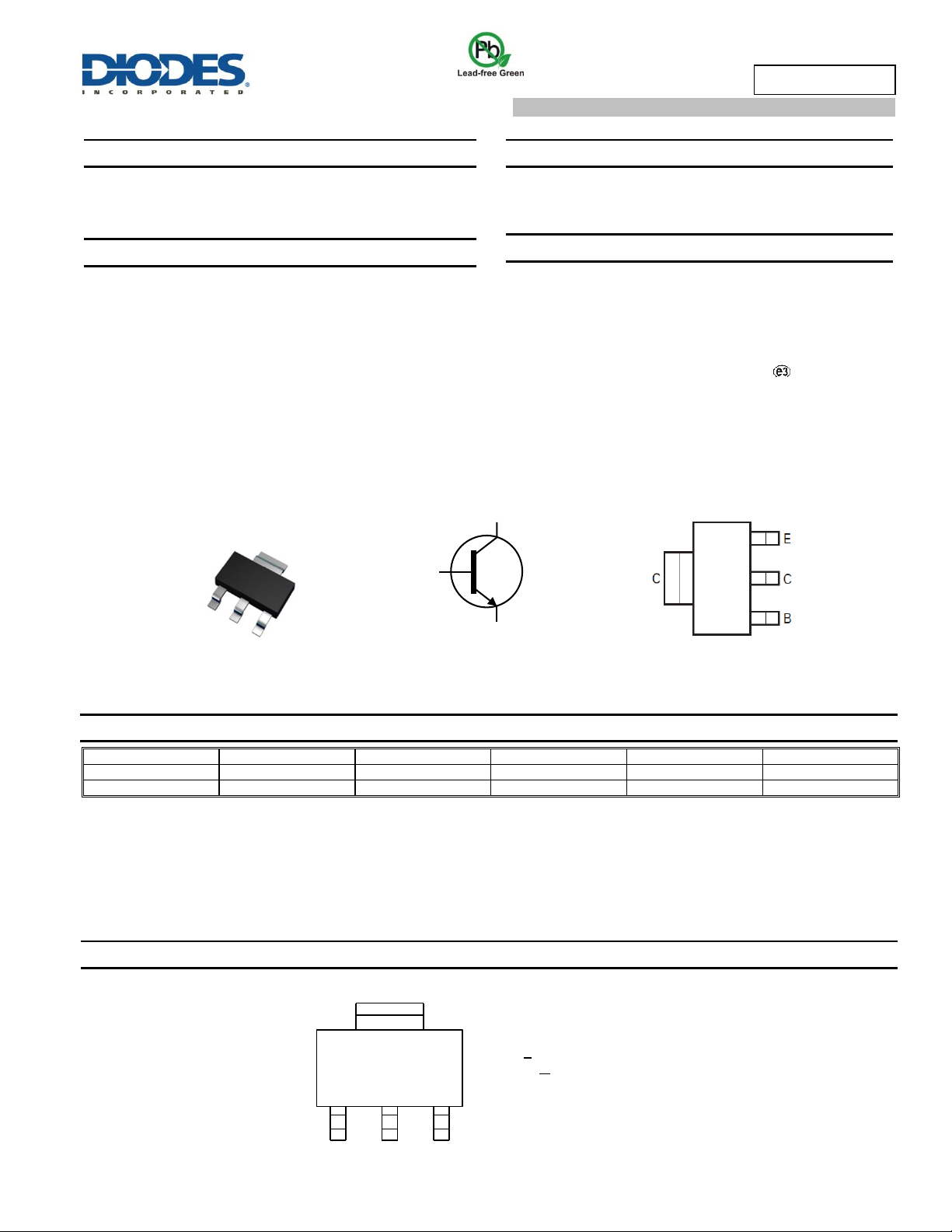

BCP5616Q
80V NPN MEDIUM POWER TRANSISTOR IN SOT223
Description
This Bipolar Junction Transistor (BJT) is designed to meet the
stringent requirements of Automotive Applications.
Features
BV
CEO
> 80V
I
C
= 1A High Continuous Collector Current
I
CM
= 2A Peak Pulse Current
2W Power Dissipation
Low Saturation Voltage V
CE(SAT)
< 500mV @ 0.5A
Complementary PNP Type: BCP5316Q
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Ordering Information (Notes 4 & 5)
Product
Compliance
Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
BCP5616QTA
Automotive
BCP 5616
7
12
1,000
BCP5616QTC
Automotive
BCP 5616
13
12
4,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
C
E
B
Device Symbol
Top View
SOT223
Top View
Pin-Out
BCP 5616 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 6 = 2016)
WW or WW = Week Code (01~53)
YWW
BCP
5616
SOT223
