For more information, samples
and engineering kits,
please visit us at www.kemet.com
or call 1.877.myKEMET.
Copyright © 2014 KEMET
Electronic Components

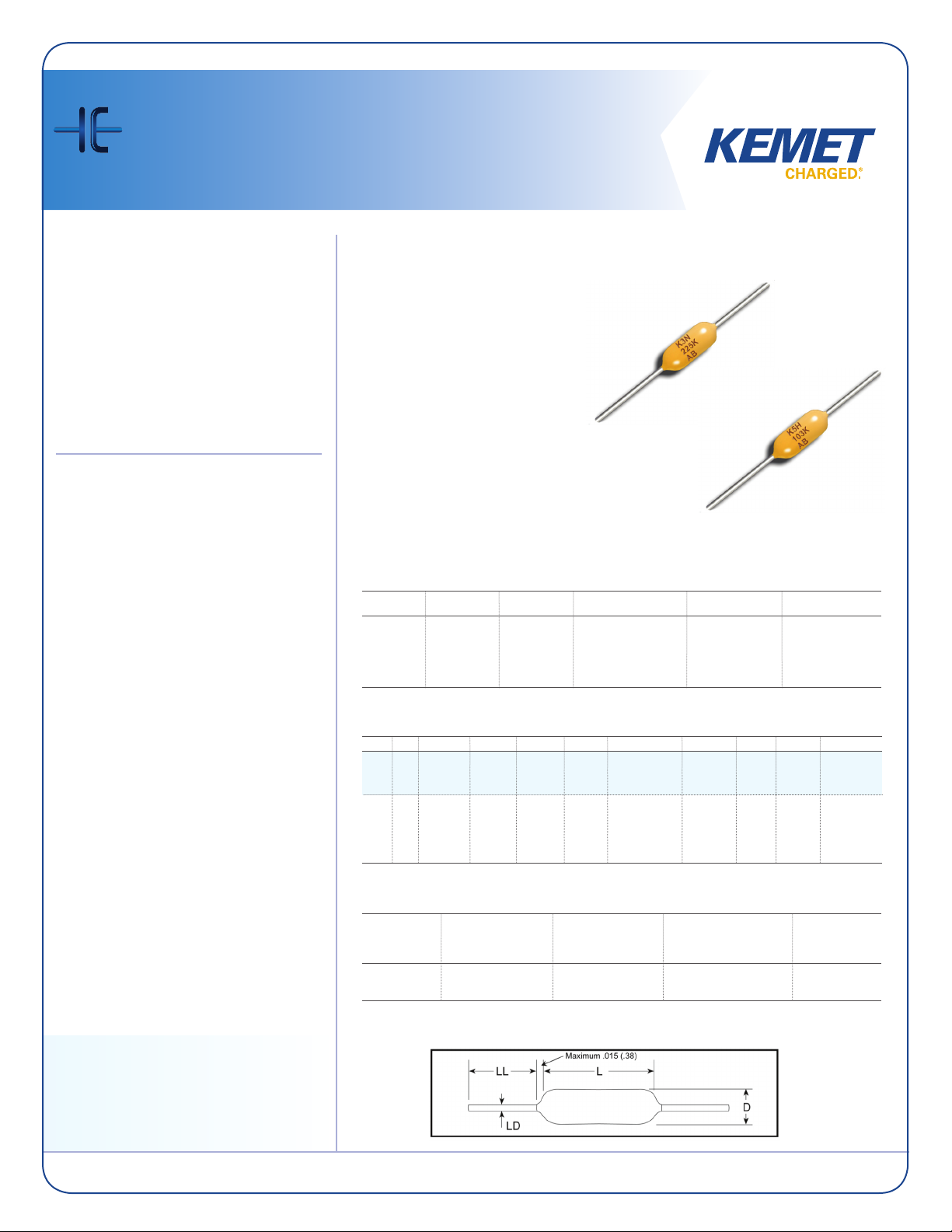

Through-Hole Ceramic
Capacitors
150°C Aximax
Programs Supported
• Power supplies
• Security/alarms
• Consumer appliances
• Automotive
• Medical
• Telecommunications
• Test and industrial equipment
• Bypass
• Signal coupling
• Switching mode power supply
• Decoupling
• Noise filters
• Snubbers
• Down-hole exploration
• Automotive (under-the-hood)
PRODUCTS
SA0914
Aximax X8L
Aximax X8R
Electrical/Physical Characteristics
410
430
Style/Size
F
G
J
K
M
Tolerances
Ultra-Stable
X8R, X8L
Dielectric
25
50
100
200
Voltage Options
100 pF to 0.82 µF
Values
-55°C to 150°C
Temperature Range
Why Choose KEMET
KEMET Corporation is a leading global supplier of
electronic components. We offer our customers
the broadest selection of capacitor technologies
in the industry, along with an expanding range
of electromechanical devices, electromagnetic
compatibility solutions and supercapacitors. Our
vision is to be the preferred supplier of electronic
component solutions for customers demanding the
highest standards of quality, delivery and service.
Ordering Information
C
Ceramic
410
Style/
Size
410
430
C
Specification/
Series
C = Standard
105
Capacitance
Code (pF)
2 Sig. Digits
+ Number
of Zeros.
K
Capacitance
Tolerance
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
3
Voltage
3 = 25 V
5 = 50 V
1 = 100 V
2 = 200 V
H
Dielectric
H = Ultra-Stable X8R
N = X8L
5
Design
5 = Multilayer
A
Failure Rate
A = N/A
T
Lead
Finish
T = 100%
Matte Sn
H = SnPb
(60/40)
7200
Packaging/
Grade
(C-Spec)
Blank = Bulk
7200 = 12” Reel
AUTO =
Automotive Grade
Features & Benefits
• Automotive Grade available
• Pb-Free and RoHS compliant
• Base metal electrode (BME) dielectric system
• Low ESR and ESL
• High thermal stability
• Flex crack resistance
• Improved piezoelectric properties over surface
mount technology
• SnPb lead finish option available upon request
• Ultra-Stable X8R dielectric:
- No capacitance change with respect to
applied DC voltage
- Negligible capacitance change with
respect to temperature
Product Checklist
• What is the end application?
• Do you require an axial footprint?
• What are the dimensional requirements?
• Is board space constrained?
• Is the application temperature above 125°C?
• Does your application require a voltage and
temperature stable dielectric solution?
• What capacitance is required at operating
temperature?
• What is the application voltage at operating
temperature?
Dimension Table
C410
C430
Style/
Size
0.170 (4.32)
0.240 (6.10)
L
Max.
0.100 (2.54)
0.150 (3.81)
D
Max.
1.0 (25.4)
1.0 (25.4)
LL
Min.
0.020 (0.51)
0.020 (0.51)
LD
+0.001 (0.025)
–0.003 (0.076)
