62012 TKIM/O1106EA SYIM/72602 TSIM TA-100026 No.7225-1/6
http://onsemi.com
Semiconductor Components Industries, LLC, 2013
September, 2013

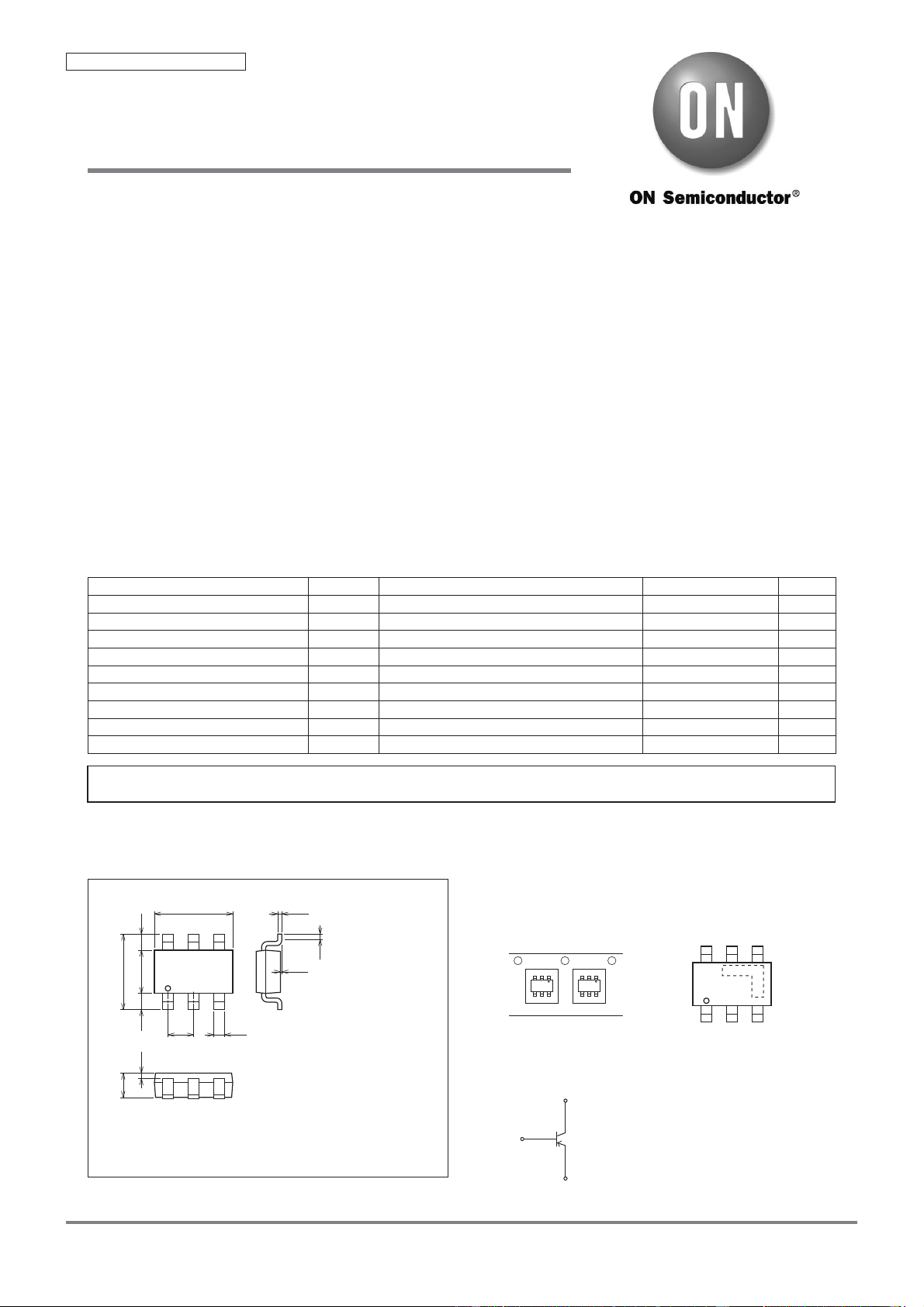

CPH6122
Bipolar Transistor
–
30V,
–
3A, Low V
CE
(
sat
)
, PNP Single CPH6
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Applications
•
Relay drivers, lamp drivers, motor drivers, fl ash
Features
•
Adoption of MBIT process
•
High current capacitance
•
Low collector-to-emitter saturation voltage
•
High-speed switching
•
Ultrasmall package facilitates miniaturization in end products (mounting height : 0.9mm)
•
High allowable power dissipation
Specifi cations
Absolute Maximum Ratings
at Ta=25°C
Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage V
CBO
-30 V
Collector-to-Emitter Voltage V
CEO
-30 V
Emitter-to-Base Voltage V
EBO
-5 V
Collector Current I
C
-3 A
Collector Current (Pulse) I
CP
-5 A
Base Current I
B
-600 mA
Collector Dissipation P
C
Mounted on a ceramic board
(600mm
2
×
0.8mm)
1.3 W
Junction Temperature Tj 150
°
C
Storage Temperature Tstg -55 to +150
°
C
Package Dimensions
unit : mm (typ)
7018A-002
Ordering number : EN7225B
Product & Package Information
• Package : CPH6
• JEITA, JEDEC : SC-74, SOT-26, SOT-457
• Minimum Packing Quantity : 3,000 pcs./reel
Packing Type: TL Marking
Electrical Connection
1, 2, 5, 6
4
3
AW
LOT No.
TL
1 : Collecto
r
2 : Collecto
r
3 : Base
4 : Emitter
5 : Collecto
r
6 : Collecto
r
CPH6
321
645
2.9
0.05
0.4
2.8
1.6
0.2
0.6
0.6
0.9
0.2
0.15
0.95
CPH6122-TL-E
