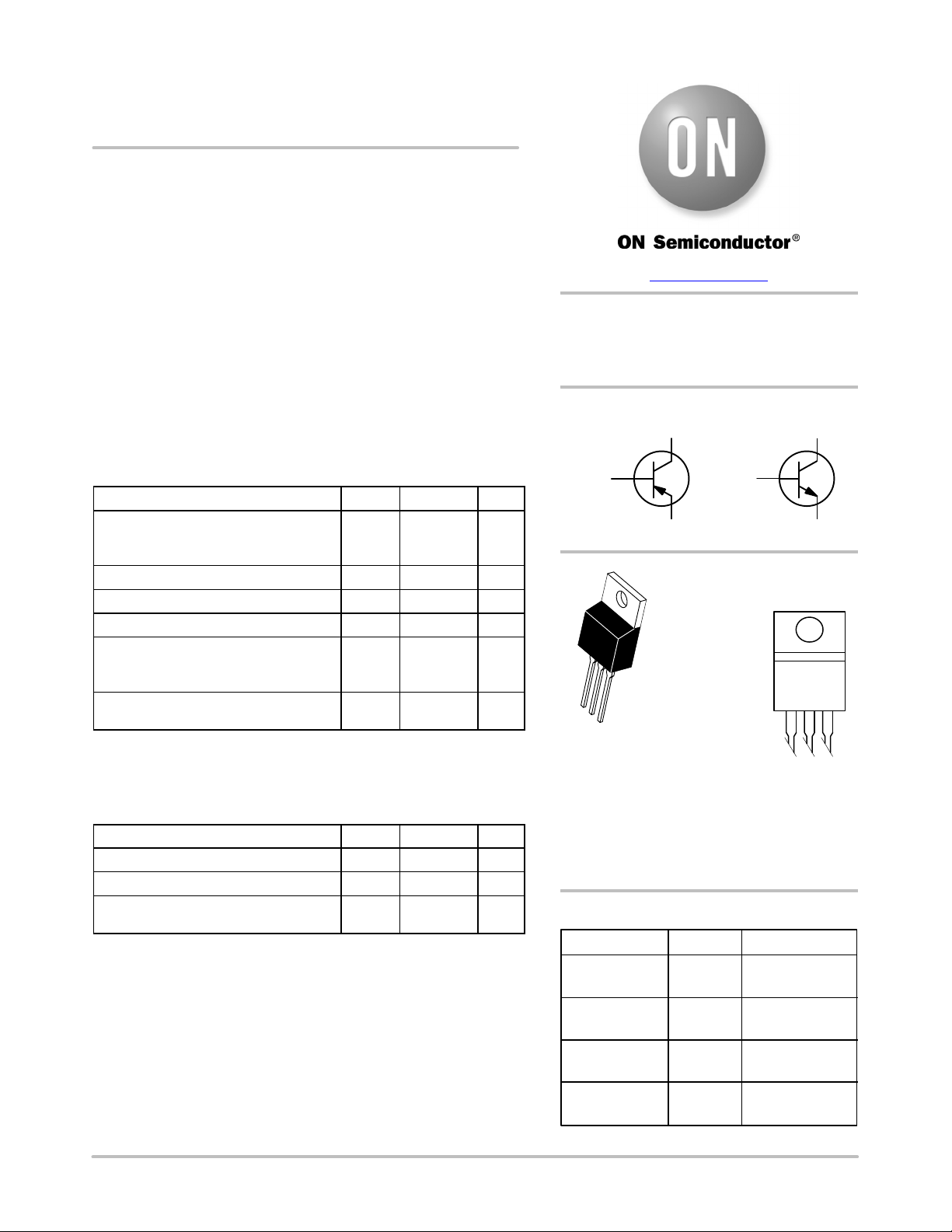

© Semiconductor Components Industries, LLC, 2014
November, 2014 − Rev. 13
1 Publication Order Number:
D44H/D
D44H Series (NPN),
D45HSeries (PNP)
Complementary Silicon
Power Transistors
These series of plastic, silicon NPN and PNP power transistors can
be used as general purpose power amplification and switching such as
output or driver stages in applications such as switching regulators,
converters and power amplifiers.
Features
• Low Collector−Emitter Saturation Voltage
• Fast Switching Speeds
• Complementary Pairs Simplifies Designs
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage
D44H8, D45H8
D44H11, D45H11
V
CEO
60
80
Vdc
Emitter Base Voltage V
EB
5.0 Vdc
Collector Current − Continuous I
C
10 Adc
Collector Current − Peak (Note 1) I
CM
20 Adc
Total Power Dissipation
@ T
C
= 25°C
@ T
A
= 25°C
P
D
70
2.0
W
Operating and Storage Junction
Temperature Range
T
J
, T
stg
−55 to +150 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Pulse Width ≤ 6.0 ms, Duty Cycle ≤ 50%.
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Case
R
q
JC
1.8 °C/W
Thermal Resistance, Junction−to−Ambient
R
q
JA
62.5 °C/W
Maximum Lead Temperature for Soldering
Purposes: 1/8″ from Case for 5 Seconds
T
L
275 °C
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
TO−220
CASE 221A
STYLE 1
3
4
1
10 AMP COMPLEMENTARY
SILICON POWER
TRANSISTORS 60, 80 VOLTS
2
MARKING
DIAGRAM
D4xHyyG
AYWW
www.onsemi.com
D45H8G TO−220
(Pb−Free)
50 Units/Rail
ORDERING INFORMATION
D4xHyy = Device Code
x = 4 or 5
yy = 8 or 11
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
D45H11G TO−220
(Pb−Free)
50 Units/Rail
D44H11G TO−220
(Pb−Free)
50 Units/Rail
D44H8G TO−220
(Pb−Free)
50 Units/Rail
1
BASE
EMITTER 3
COLLECTOR 2, 4
1
BASE
EMITTER 3
COLLECTOR 2, 4
PNP
NPN
