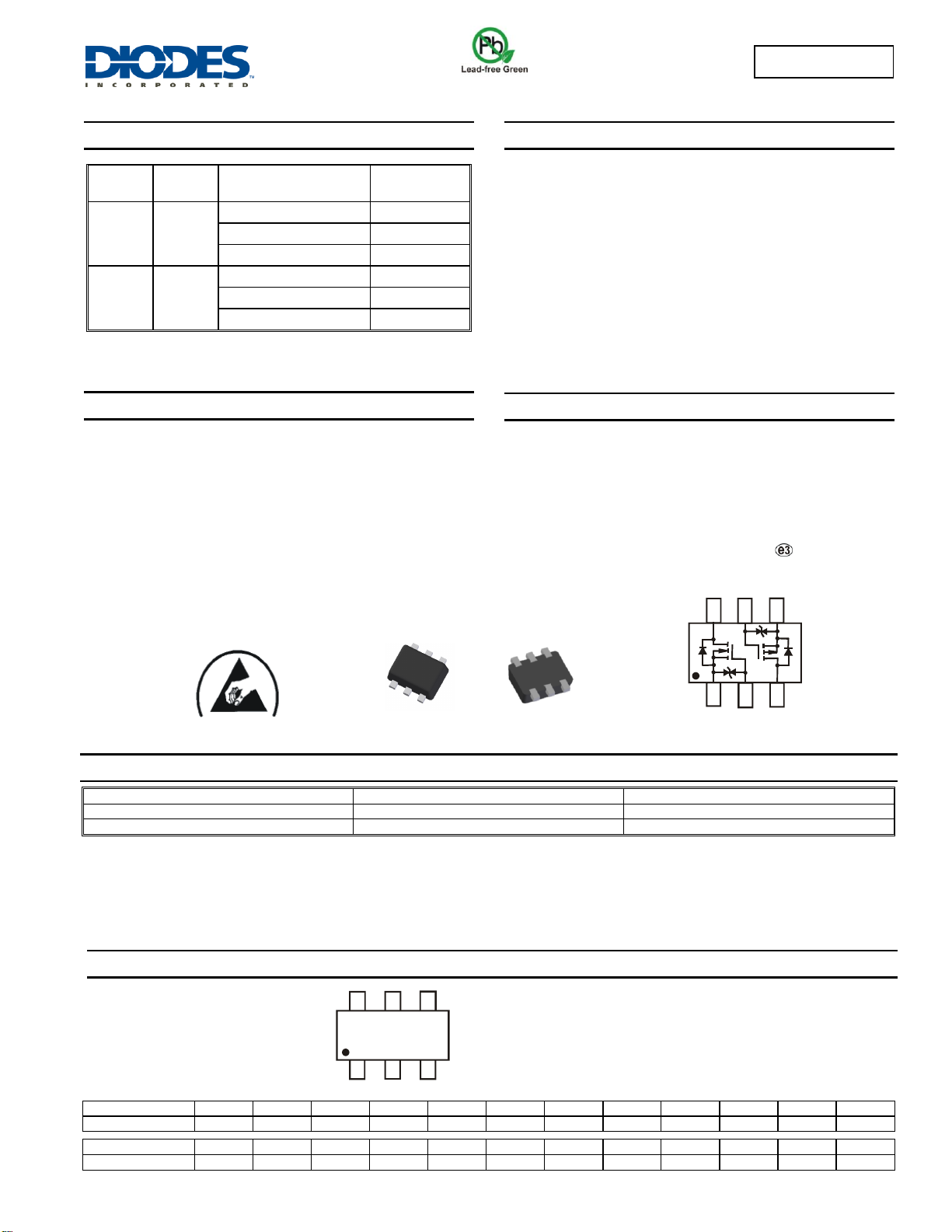

DMG1016VQ
Document number: DS37972 Rev. 2 - 2
1 of 9
www.diodes.com
September 2015
© Diodes Incorporated
DMG1016VQ
NEW PROD UCT
ADVA N C ED I N F ORM ATI O N
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
BV
DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
Q1
20V
0.4Ω @ V
GS
= 4.5V
870mA
0.5Ω @ V
GS
= 2.5V
780mA
0.7Ω @ V
GS
= 1.8V
640mA
Q2
-20V
0.7Ω @ V
GS
= -4.5V
-640mA
0.9Ω @ V
GS
= -2.5V
-580mA
1.3Ω @ V
GS
= -1.8V
-465mA
Description and Applications
This MOSFET is designed to minimize the on-state resistance and yet
maintain superior switching performance, making it ideal for high
efficiency power management applications.
Switches
Features
Low On-Resistance
Low Gate Threshold Voltage V
GS(th)
<1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Complementary Pair MOSFET
Ultra-Small Surface Mount Package
ESD Protected Gate to 2.5kV HBM
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT-563
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
DMG1016VQ-7
SOT-563
3,000/Tape & Reel
DMG1016VQ-13
SOT-563
10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
Code
W
X
Y
Z
A
B
C
D
E
F
G
H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
SOT-563
TOP VIEW
TOP VIEW
Internal Schematic
BOTTOM VIEW
S
2
D
2
Q
1
Q
2
D
1
S
1
G
2
G
1
ESD PROTECTED TO 2.5kV HBM
CA1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)
CA1
YM
