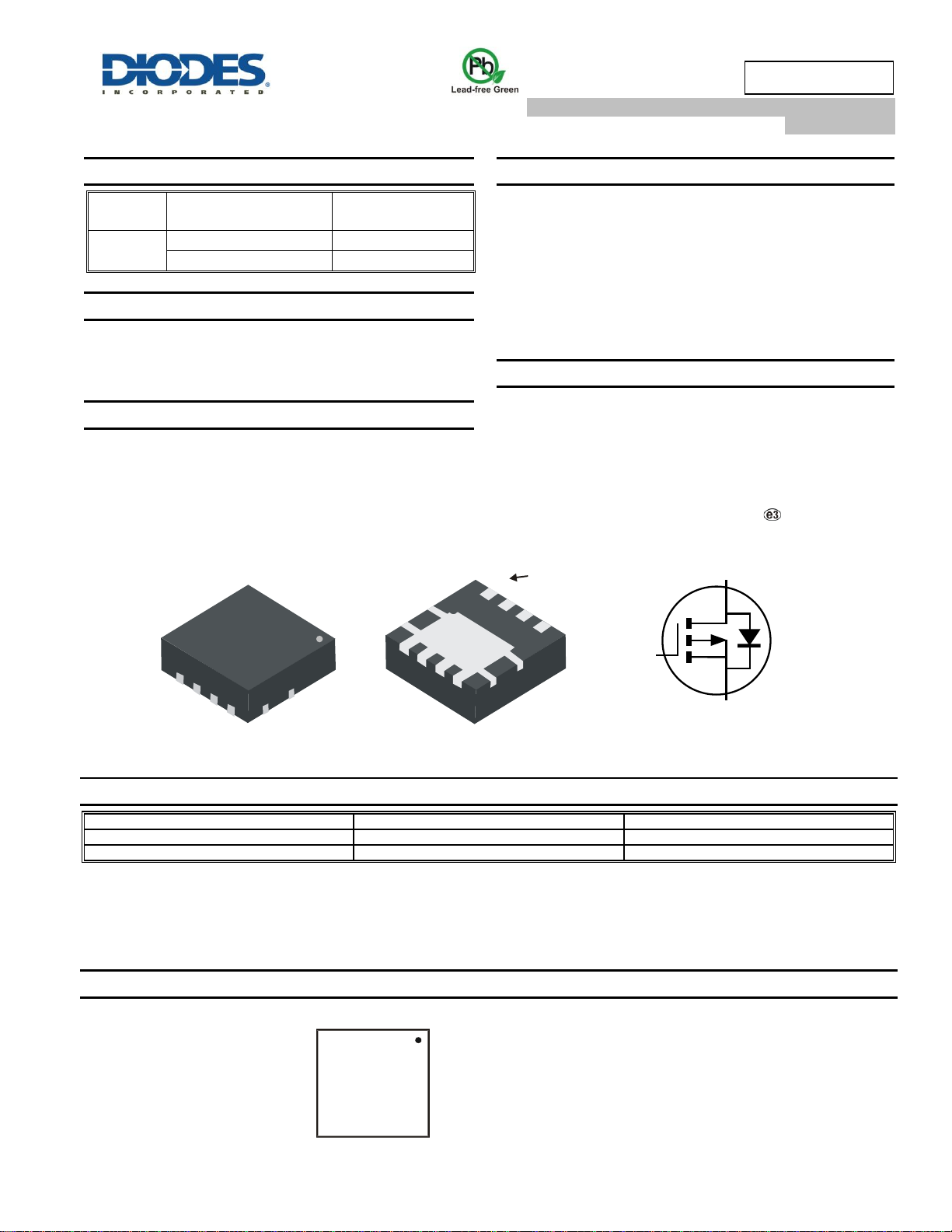

DMP2006UFG
Document number: DS36802 Rev. 5 - 2
1 of 7
www.diodes.com
March 2017
© Diodes Incorporated
DMP2006UFG
20V P-CHANNEL ENHANCEMENT MODE MOSFET
PowerDI3333-8
Product Summary
BV
DSS
R
DS(ON)
max
I
D
max
T
C
= +25°C
-20V
5.5mΩ @ V
GS
= -4.5V
-40A
7.5mΩ @ V
GS
= -2.5V
-40A
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
Load Switch
Power Management Functions
Features
Low R
DS(ON)
– ensures on state losses are minimized
Small form factor, thermally efficient package enables higher
density end products
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: PowerDI
®
3333-8
Case Material: Molded Plastic, "Green" Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.030 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMP2006UFG-7
PowerDI3333-8
2,000/Tape & Reel
DMP2006UFG-13
PowerDI3333-8
3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Bottom View
Equivalent Circuit
S
S
S
G
D
D
D
D
Pin 1
Top View
S47 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 17 = 2017)
WW = Week Code (01 to 53)
PowerDI3333-8
S47
YYWW
D
S
G
PowerDI3333-8
PowerDI is a registered trademark of Diodes Incorporated.
