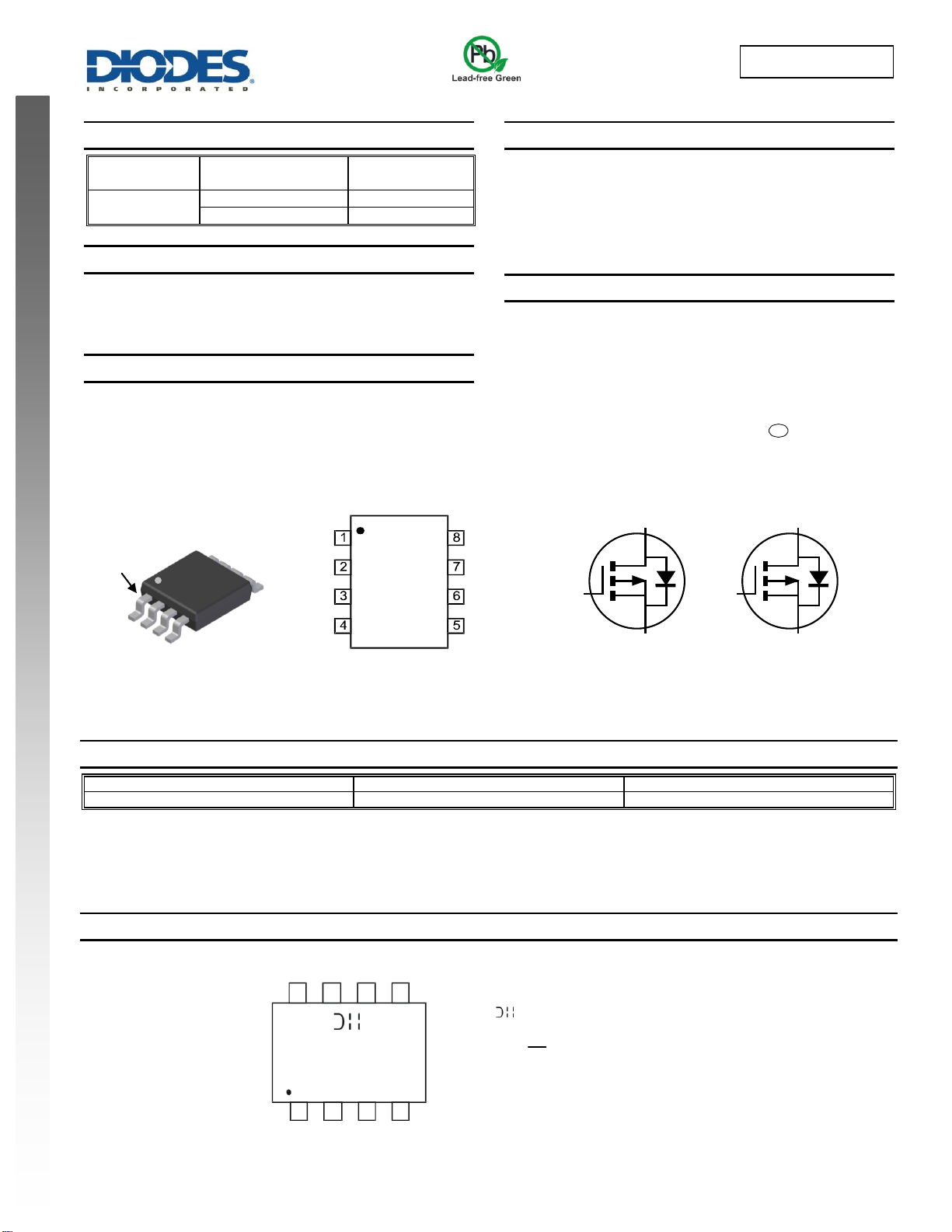

DMP3036SSD
Document number: DS37349 Rev.1 - 2
1 of 6
www.diodes.com
November 2014
© Diodes Incorporated
DMP3036SSD
NEW PROD UCT
NEW PROD UCT
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
C
= +25°C
-30V
20mΩ @ V
GS
= -10V
-18.0A
29mΩ @ V
GS
= -5V
-15.0A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(on)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Backlighting
Features
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMP3036SSD-13
SO-8
2,500 / Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
e3
SO-8
Equivalent Circuit
D1
S1
G1
D2
S2
G2
Top View
SO-8
Top View
Pin Configuration
S1
D2
S2
D1
G2
G1
D1
D2
Pin1
= Manufacturer’s Marking
P3036SD = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 14 = 2014)
WW = Week (01 - 53)
1
4
8
5
P
3036
SD
WW
YY
