DMTH4004LK3Q
Document number: DS37791 Rev. 2 - 2
1 of 7
www.diodes.com
February 2016
© Diodes Incorporated

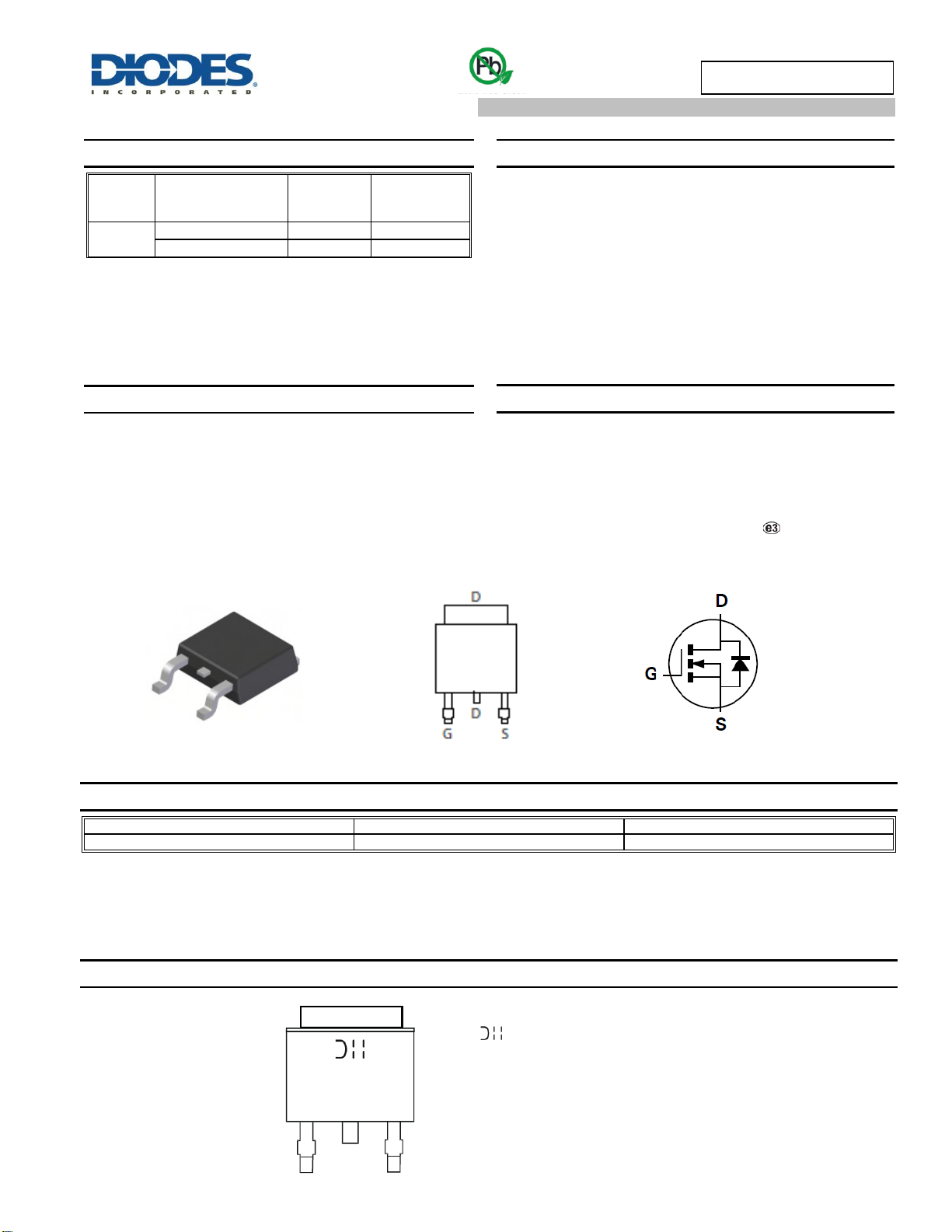

DMTH4004LK3Q
40V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
Max
Q
g
Typ
I
D
Max
T
C
= +25°C
(Note 10)
40V
3mΩ @ V
GS
= 10V
83nC
100A
5mΩ @ V
GS
= 4.5V
35nC
100A
Description and Applications
This MOSFET is designed to meet the stringent requirements of
Automotive applications. It is qualified to AEC-Q101, supported by a
PPAP and is ideal for use in:
Engine Management Systems
Body Control Electronics
DC-DC Converters
Motor Control
Features
Rated to +175°C – Ideal for High Ambient Temperature
Environments
100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
Low R
DS(ON)
– Minimizes Power Losses
Low Q
g
– Minimizes Switching Losses
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: TO252
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.33 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
DMTH4004LK3Q-13
TO252
2,500/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Equivalent Circuit
Pin Out Top View
= Manufacturer’s Marking
T4004L = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 16 = 2016)
WW = Week Code (01 to 53)
Top View
Green
YYWW
T4004L
