(94S-504A113Z)

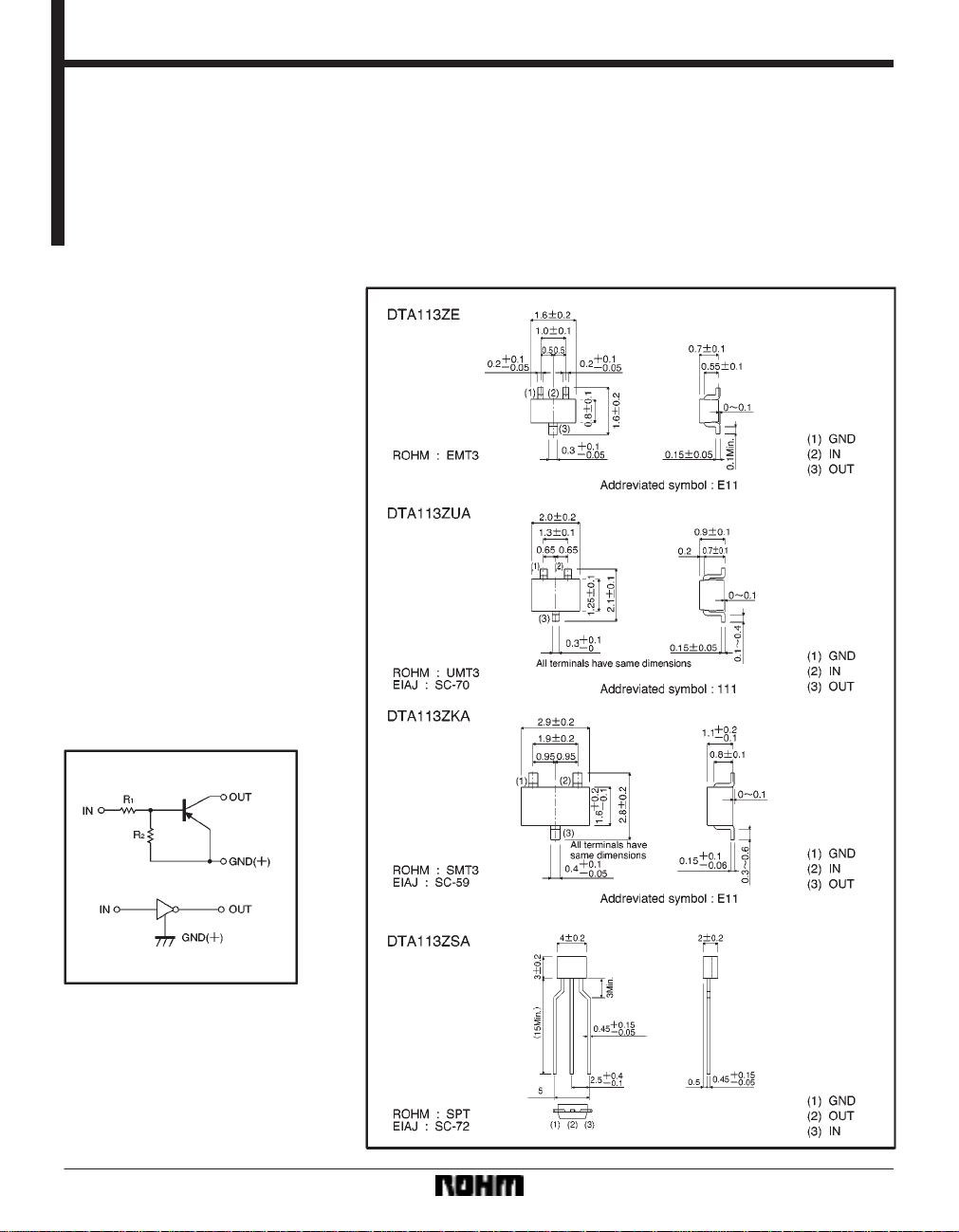

External dimensions (Units: mm)
324
Transistors
Digital transistors (built-in resistors)
DTA113ZE / DTA113ZUA / DTA113ZKA /
DTA113ZSA
Features
1) The built-in bias resistor allows the
configuration of an inverter circuit
without connecting any external in-
put resistors (see Equivalent cir-
cuit).
2) Each bias resistor is a thin-film re-
sistor. Since they are completely in-
sulated, the input can be positively
biased. The insulation also elimi-
nates most of the parastic effects.
3) Circuit design is simplified since
only the OFF and the ON conditions
have to be set.
Structure
PNP digital transistor
(with built in resistors).
Equivalent circuit
