REV APPROVED
Package Dimensions (mm)
ECS-094.9453-CDX-0313 9.49453 MHz
ECS-098.4375-CDX-0314 9.84375 MHz
ECS-120.9375-CDX-0315 12.09375 MHz
ECS-130.625-CDX-0316 13.0625 MHz
ECS-135.60-CDX-0317 13.560 MHz
Electrical Characteristics
Parameters Value
Frequency Tolerance @ +25°C ± 30 PPM Max.
Temperature Stability (-10° to +70°C) ± 50 PPM Max.
Equivalent Series Resistance 30 Ohms Max.
Motional Capacitance 10 fF Typ.
Load Capacitance
Crystal Q 70K Min.
Shunt Capacitance 5 pF Max.
Drive Level 500 µW Max.
Aging (First Year @ +25°C) ± 5 PPM Max.
Operating Temperature -10 to +70°C
Storage Temperature -30 to +85°C
TITLE
SIZE DWG NO REV
A CDX-0313-0317 -
ECS Part Numbers Frequency
Dimensions in mm
9/19/2005
CHK BL 9/19/2005
9/19/2005APP DK
SHEET 1 OF 1
ECS INC. INTERNATIONAL
1105 S. Ridgeview
Olathe, KS 66062
(913) 782-7787 www.ecsxtal.com
CSM-7 SMD Crystal for
Micrel Transmitter IC
CAGE CODE: 1G8B7
DRN RC

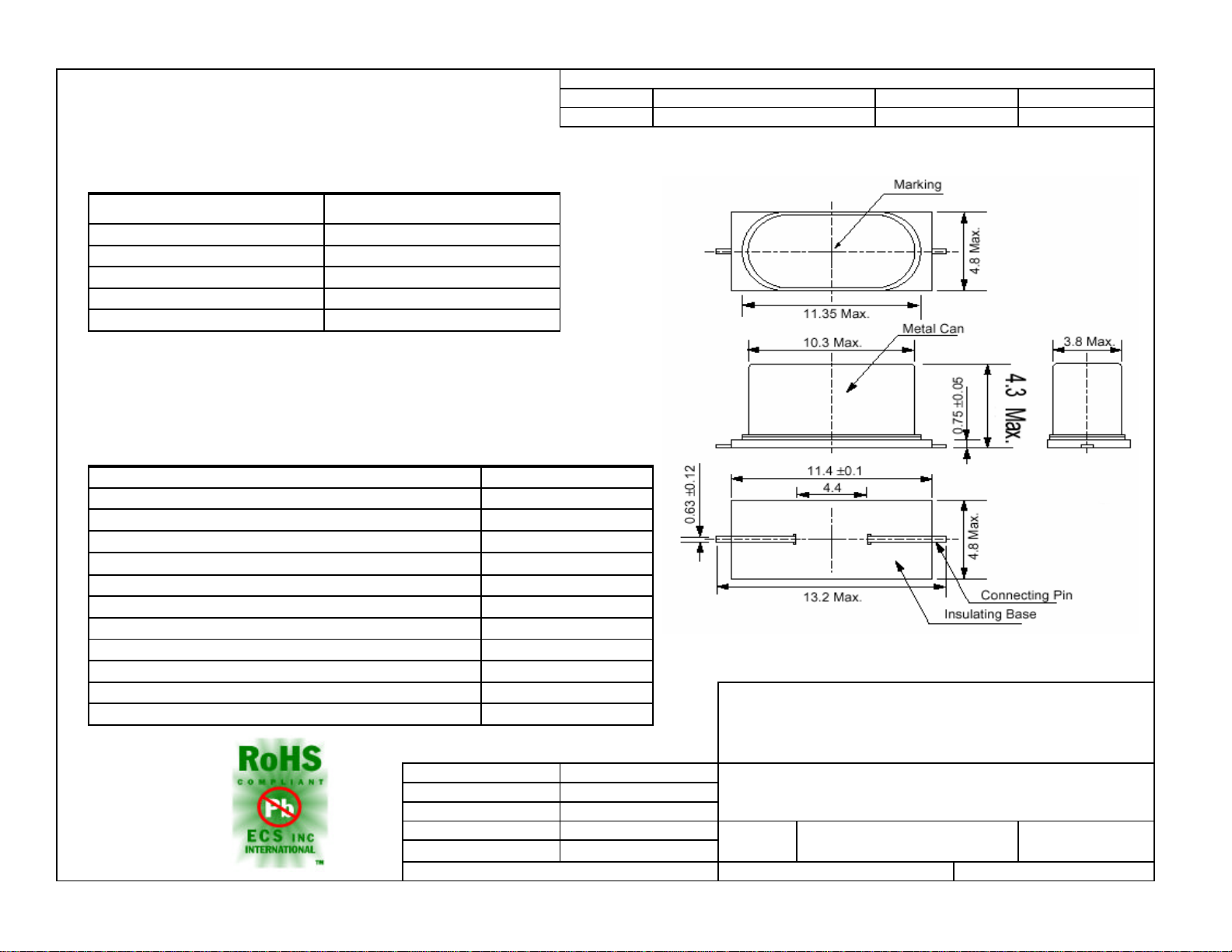

Figure 1) Top, Side, Bottom and End views
REVISIONS
DATEDESCRIPTION
DATE
10 pF
SIGNATURES
