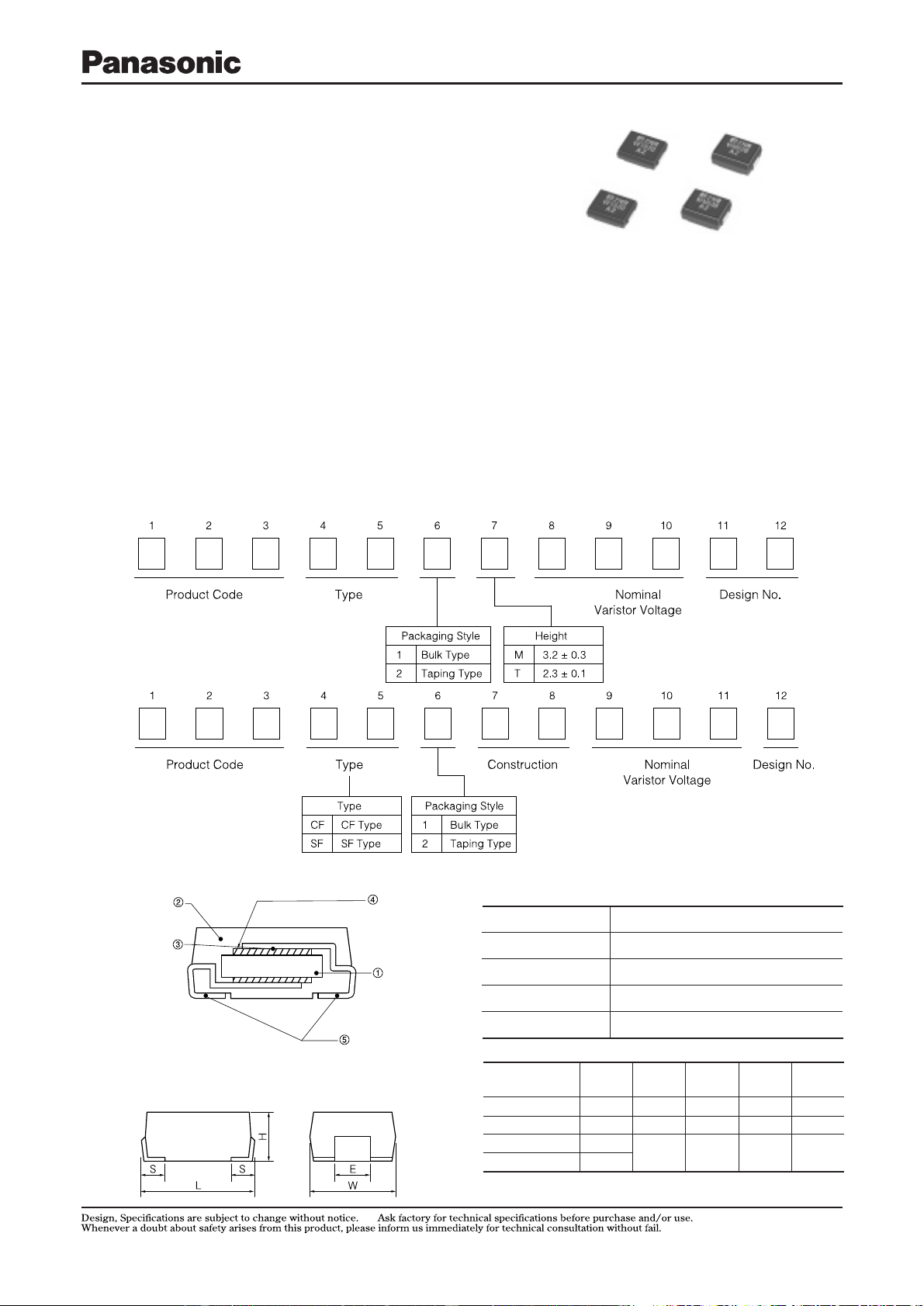

ÒZNRâÓ Surge Absorbers, SMD Mold
ÒZNR
â
Ó Transient/Surge Absorbers,
Type: VF
Type: CF
Type: SF
n Features
compact size
l Excellent response against high steep surge
l Low clamping voltage for better surge protection
n Explanation of Part Numbers
n Construction
n Dimensions in mm (not to scale)
Type W L H S E
VF1M 6.0±0.4 8.0±0.5 3.2±0.3 1.3±0.3 2.5±0.2
VF1T
0
6.0±0.4 8.0±0.5 2.3±0.1 1.3±0.3 2.5±0.2
CF 6.0±0.4
8.0±0.5 3.2±0.3 1.3±0.3 2.5±0.2
SF 6.2±0.4
n Recommended Applications
l Protection of consumer equipment
l Protection of industrial equipment
l Protection of automobile equipment
l Absorption of switching surge from relays
E R Z KFM
1 ZNR element ZnO etc.
2 Resin mold Epoxy Resin(UL94V-0 approved)
3 Silver
4 Electrode Silver
5 Lead terminals Soldered Ni-Fe Alloy
Conductive
adhesive
E R ZVF
SMD Moded Case Type
l Large withstanding surge current capability,
l Designed for flow/reflow soldering
voltages
l Protection of communication module (Modems,
xDSLs, Terminal Adaptes)
n Handling Precautions
See Pages 134 to 136
