ESD7351, SZESD7351
Series
ESD Protection Diode
The ESD7351 Series is designed to protect voltage sensitive
components that require ultra−low capacitance from ESD and
transient voltage events. Excellent clamping capability, low
capacitance, low leakage, and fast response time, make these parts
ideal for ESD protection on designs where board space is at a
premium. Because of its low capacitance, it is suited for use in high
frequency designs such as USB 2.0 high speed and antenna line
applications.
Features
• Low Capacitance (0.6 pF Max, I/O to GND)
• Low Clamping Voltage
• Stand−off Voltage: 3.3 V
• Low Leakage
• Response Time is < 1 ns
• Low Dynamic Resistance < 1 W
• IEC61000−4−2 Level 4 ESD Protection
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applications
• RF Signal ESD Protection
• RF Switching, PA, and Antenna ESD Protection
• Near Field Communications
MAXIMUM RATINGS
Rating Symbol Value Unit
IEC 61000−4−2 (ESD) Contact
Air
±20
±20
kV
Total Power Dissipation on FR−5 Board
(Note 1) @ T
A
= 25°C
°P
D
° 150 mW
Junction and Storage Temperature Range T
J
, T
stg
−55 to +150 °C
Lead Solder Temperature − Maximum
(10 Second Duration)
T
L
260 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR−5 = 1.0 x 0.75 x 0.62 in.
See Application Note AND8308/D for further description of survivability specs.

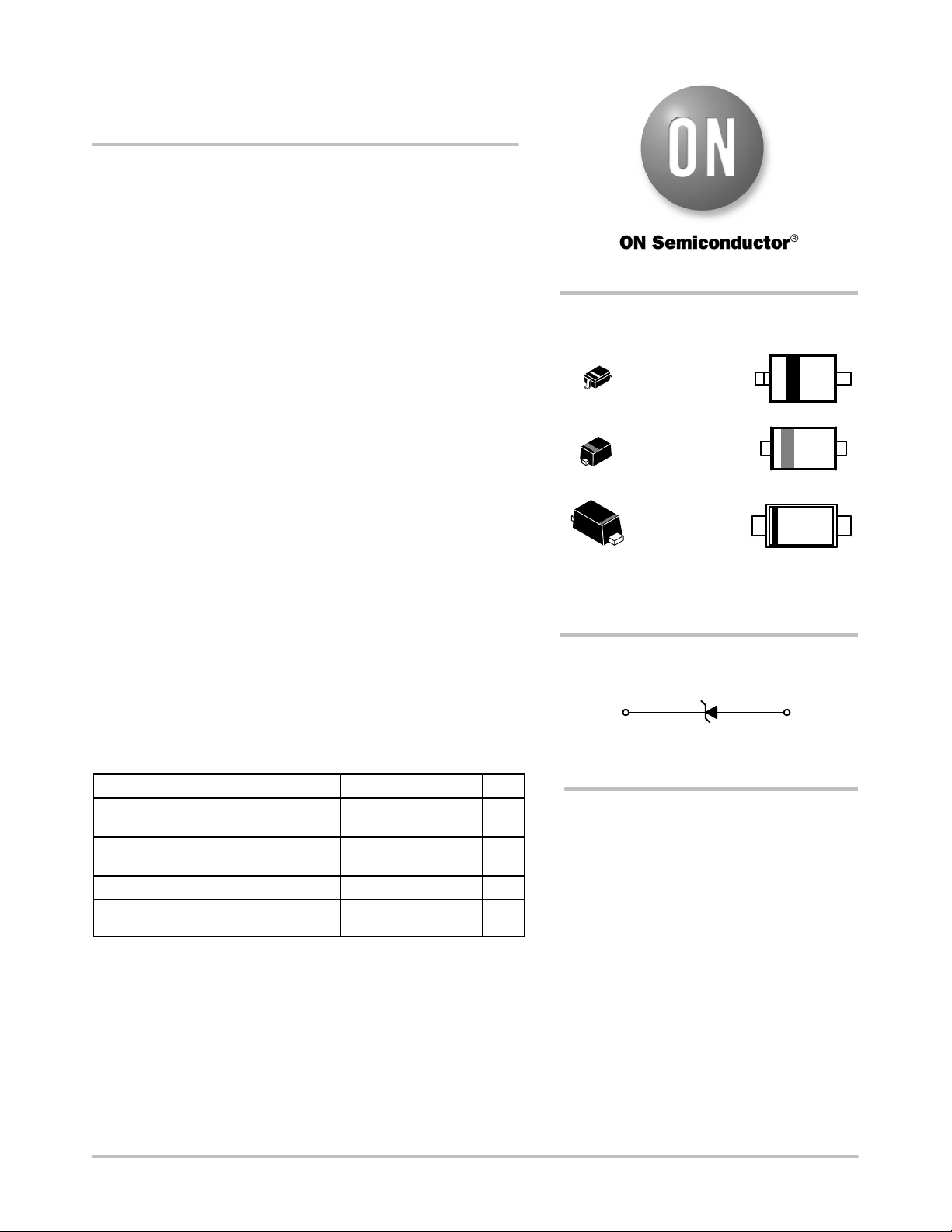

MARKING
DIAGRAMS
PIN CONFIGURATION
AND SCHEMATIC
www.onsemi.com
X, XX = Specific Device Code
M = Date Code
1
Cathode
2
Anode
SOD−323
CASE 477
SOD−523
CASE 502
SOD−923
CASE 514AB
1
2
AF
M
1
2
AE
12
M
AD M
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
ORDERING INFORMATION
