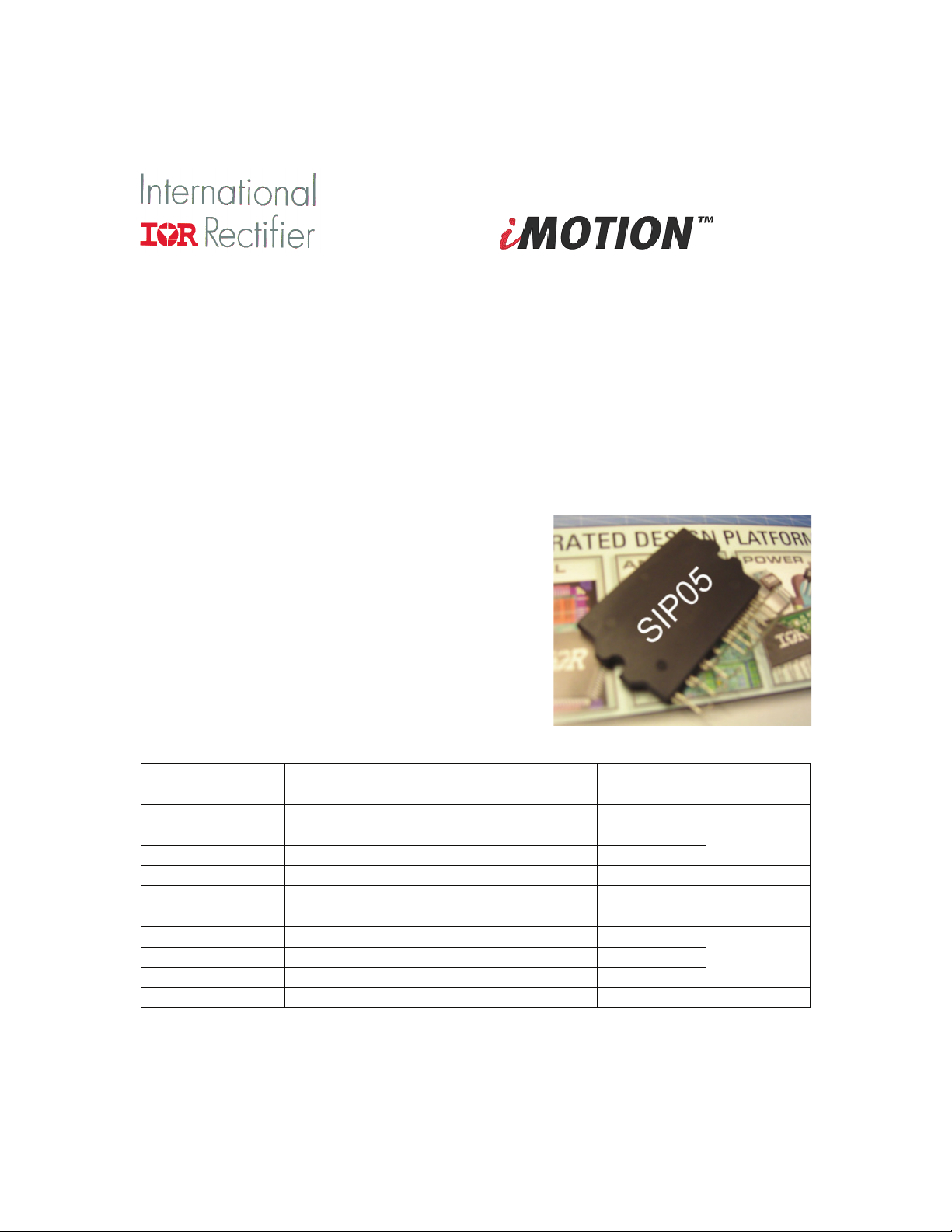

PD-97324 RevA
IRAM136-1060BS
Series
10A, 600V
Integrated Power Hybrid IC for
App
liance Motor Drive A
pp
lications
with Internal Shunt Resistor
Description
International Rectifier's IRAM136-1060BS is a 10A, 600V Integrated Power Hybrid IC designed for advanced
Appliance Motor Drives applications. Typical applications include energy efficient Washing Machine, Fans,
Air Conditions and Refrigerator Compressor Drivers. This module offers an extremely compact, high
performance AC motor-driver in an isolated package that simplifies design. Several built-in protection
features such as over current, temperature monitoring, shoot through prevention and under voltage lockout
makes this a very robust solution. The combination of highly efficient Trench IGBT technology and the
industry benchmark 3-phase HVIC driver (3.3V/5V input compatible) and a fully isolated thermally enhanced
package makes this a highly competitive solution. The compact Single in line (SIP05) package minimizes
PCB space.
Features
x Internal Shunt Resistor and current feedback
x Integrated gate drivers and bootstrap diodes
x Temperature feedback
x Programmable over current protection pin
x High efficiency Trench IGBT technology
x Under-voltage lockout for all channels
x Matched propagation delay for all channels
x 3.3V/5V Schmitt-triggered input logic
x Cross-conduction prevention logic
x Motor Power range 0.25~0.75kW / 85~253 Vac
x Isolation 2000V
RMS
min and CTI> 600
Absolute Maximum Ratings
V
CES
/ V
RRM
IGBT/ FW Diode Blocking Voltage 600
V
+
Positive Bus Input Voltage 450
I
o
@ T
C
=25°C
RMS Phase Current (Note 1) 10
I
o
@ T
C
=100°C
RMS Phase Current (Note 1) 5
I
pk
Maximum Peak Phase Current (Note 2) 13
F
p
Maximum PWM Carrier Frequency 20 kHz
P
d
Maximum Power dissipation per IGBT @ T
C
=25°C
25 W
V
ISO
Isolation Voltage (1min) 2000
V
RMS
T
J
(IGBT & Diode & IC)
Maximum Operating Junction Temperature +150
T
C
Operating Case Temperature Range -20 to +100
T
STG
Storage Temperature Range -40 to +125
T Mounting torque Range (M3 screw) 0.8 to 1.0 Nm
Note 1: Sinusoidal Modulation at V
+
=400V, T
J
=150°C, F
PWM
=16kHz, Modulation Depth=0.8, PF=0.6, See Figure 3.
Note 2: t
P
<100ms, TC=25°C, F
PWM
=16kHz.
V
A
°C
www.irf.com 1
