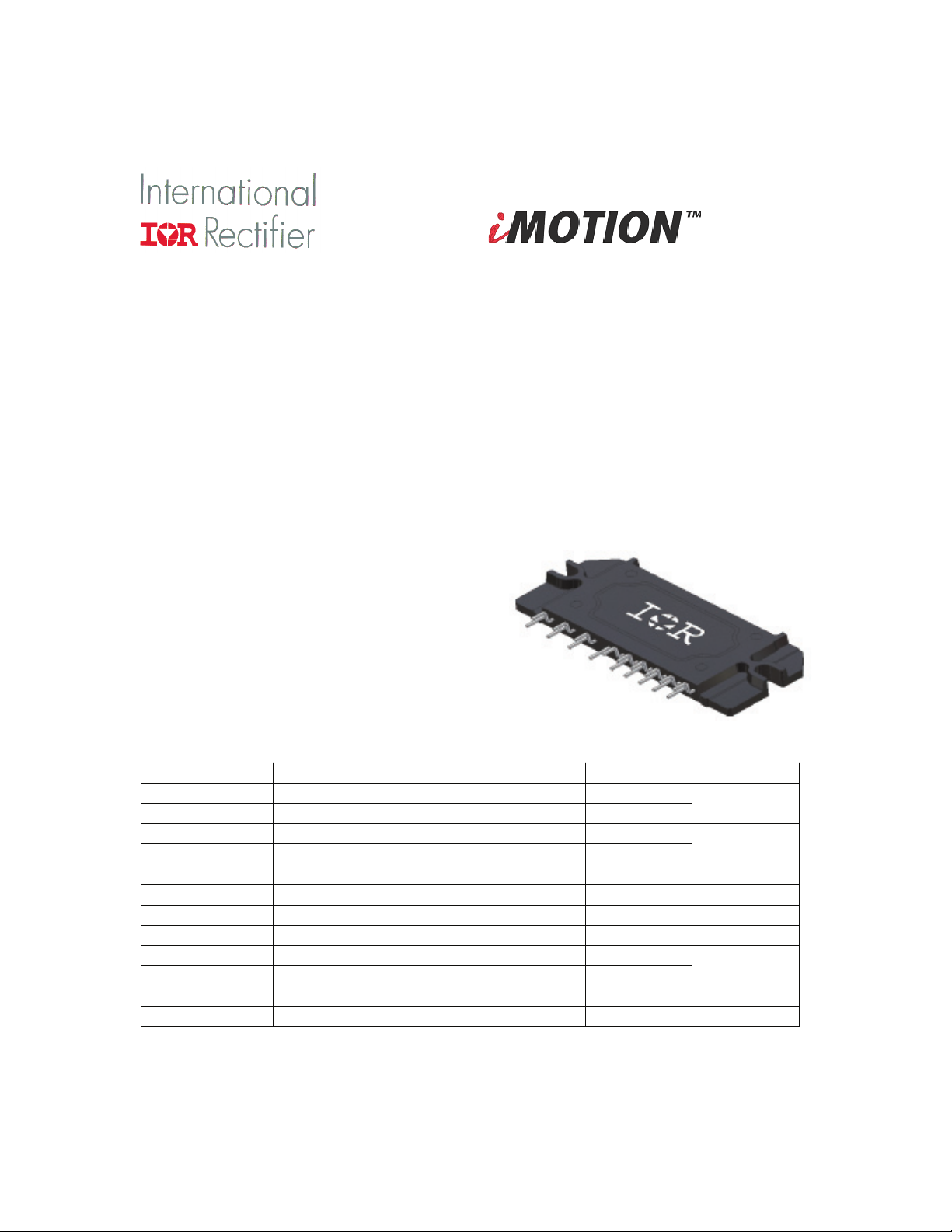

PD-97270 RevA
IRAM136-3023B
Series
30A, 150V
Integrated Power Hybrid IC for
Low Volta
g
e Motor A
pp
lications
with Internal Shunt Resistor
Description
International Rectifier's IRAM136-3023B is a 30A, 150V Integrated Power Hybrid IC with Internal Shunt
Resistor for low voltage Motor Drives applications such as electric vehicles, portable power tools and light
industrial applications. IR's technology offers an extremely compact, high performance AC motor-driver in a
single isolated package to simplify design.
This advanced HIC is a combination of IR's low R
DS(on)
Advance Planar MOSFET Super Rugged technology
and the industry benchmark 3-Phase high voltage, high speed driver in a fully isolated thermally enhanced
package. A built-in temperature monitor and over-current and over-temperature protections and integrated
under-voltage lockout function, deliver high level of protection and fail-safe operation. Using a new
developed single in line package (SiP3) with heat spreader for the power die along with full transfer mold
structure minimizes PCB space and resolves isolation problems to heatsink.
Features
• Integrated Gate Drivers
• Temperature Monitor and Protection
• Overcurrent shutdown
• Low R
DS
(on) Advance Planar Super Rugged Technology
• Undervoltage lockout for all channels
• Matched propagation delay for all channels
• 5V Schmitt-triggered input logic
• Cross-conduction prevention logic
• Lower di/dt gate driver for better noise immunity
• Motor Power up to 4.0kW / 48~100 Vdc
• Fully Isolated Package, Isolation 2000V
RMS
min
Absolute Maximum Ratings
Parameter Description Value Units
V
BR(DSS)
MOSFET Blocking Voltage 150
V
+
Positive Bus Input Voltage 100
I
O
@ T
C
=25°C
RMS Phase Current (Note 1) 30
I
O
@ T
C
=100°C
RMS Phase Current (Note 1) 15
I
O
Pulsed RMS Phase Current (Note 1 and 2) 56
F
PWM
PWM Carrier Frequency 20 kHz
P
D
Power Dissipation per MOSFET @ T
C
=25°C
89 W
V
ISO
Isolation Voltage (1min) 2000
V
RMS
T
J
(MOSFET & IC)
Maximum Operating Junction Temperature +150
T
C
Operating Case Temperature Range -20 to +100
T
STG
Storage Temperature Range -40 to +125
T Mounting Torque (M4 screw) 0.7 to 1.17 Nm
Note 1: Sinusoidal modulation at V
+
=100V, T
J
=150°C, F
PWM
=20kHz, modulation depth=0.8, pf=0.6, see Figure 3
V
A
°C
Note 2: t
P
<100ms; T
C
=25°C; F
PWM
=20kHz, limited by I
BUS-TRIP
, see Table "Inverter Section Electrical Characteristics"
www.irf.com 1
