Reverse Voltage: 50 - 1000 Volts
Forward Current: 10/15/25/35/50 Amp
KBPC Series
Features
Surge overload 200 - 400 Amp peak
Low forward voltage dro
Mounting position: Any
Electrically isolated base - 1800 Volts
Solderable 0.25” FASTON terminals
Materials used carries U/L recognition
Mechanical Data
Case:Epoxy Case with Heat Sink Internally
Mounted in the Bridge Encapsulation
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Mounting: Through Hole for #10 Screw
High Current Bridge RectifierHigh Current Bridge Rectifier
www.comchiptech.com
COMCHIPCOMCHIP
MDS0304007A
Page 1

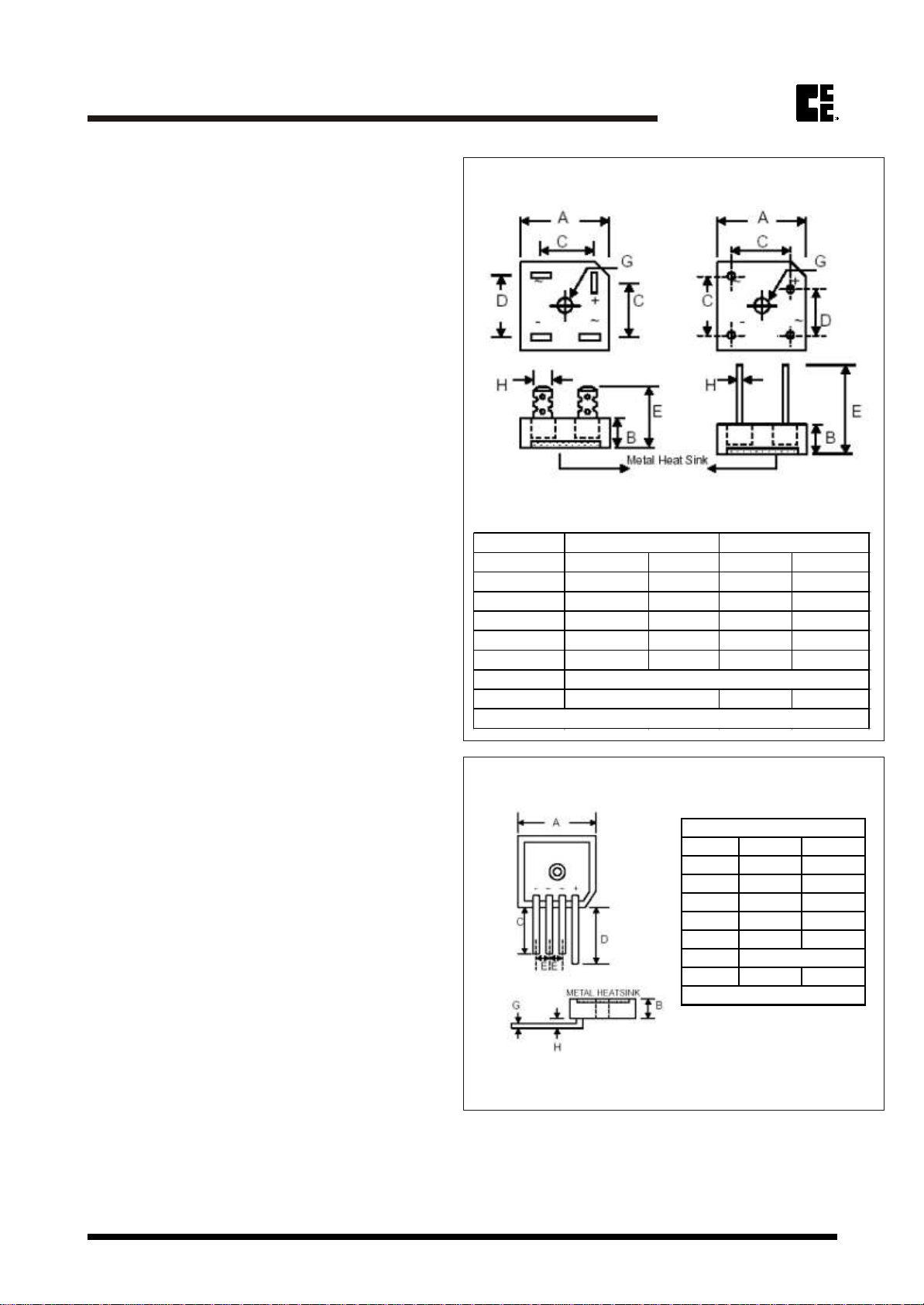

Dim Min Max Min Max
A 28.40 28.70 28.40 28.70
B 10.97 11.23 10.97 11.23
C 15.70 16.70 17.10 19.10
D 17.50 18.50 10.90 11.90
E 22.86 25.40 30.50 -
G
H 0.97Ø 1.07Ø
All Dimension in mm
TERMINALS LEAD
Hole for #10 screw, 5.08Ø Nominal
6.35 Typical
KBPCKBPC
Terminals/PlasticTerminals/Plastic
Lead/PlasticLead/Plastic
KBPC-WKBPC-W
KBPC-SKBPC-S
- “S” Suffix Designates Single In-Line
- “W” Suffix Designates Wire Leads
- No Suffix Designates Faston Terminals
Single In-Line/PlasticSingle In-Line/Plastic
Dim Min Max
A 28.40 28.70
B 10.97 11.23
C 13.90 -
D 19.10 -
E 5.10 -
G
H 3.05 3.60
KBPC-S
All Dimensions in mm
1.20 Ø Typical
Weight: 30 grams (approx.)
