September 2010 Doc ID 16261 Rev 3 1/33
AN3063
Application note
100 W transition-mode PFC pre-regulator with the L6563H
Introduction
This application note describes a demonstration board based on the transition-mode PFC
controller L6563H and presents the results of its bench demonstration. The board
implements a 100 W, wide-range mains input, PFC pre-conditioner suitable for ballast,
adapters, flatscreen displays, and all SMPS having to meet the IEC61000-3-2 or the JEITA-
MITI regulation.
The L6563H is a current-mode PFC controller operating in transition mode (TM) and
implementing an internal high-voltage startup circuitry.

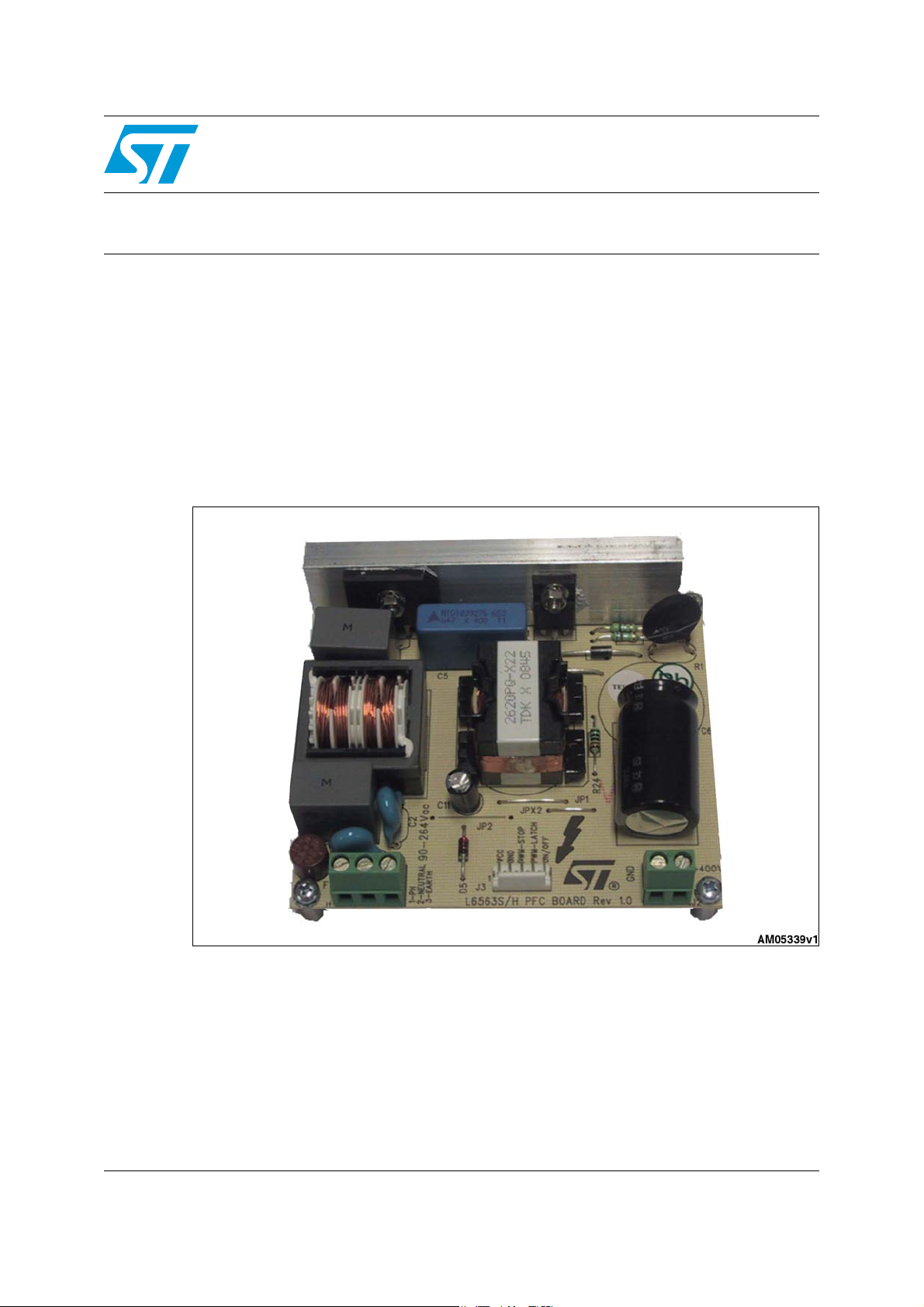

Figure 1. EVL6563H-100W: L6563H 100 W TM PFC demonstration board
