LM3501 Synchronous Step-up DC/DC Converter for White LED Applications
Check for Samples: LM3501
1
FEATURES
APPLICATIONS
2
• Synchronous Rectification, High Efficiency
• LCD Bias Supplies
and no External Schottky Diode required
• White LED Back-Lighting
• Uses Small Surface Mount Components
• Handheld Devices
• Can Drive 2-5 White LEDs in Series (May
• Digital Cameras
Function with More Low V
F
LEDs)
• Portable Applications
• 2.7V to 7V Input Range
• True Shutdown Isolation, no LED Leakage DESCRIPTION
Current
The LM3501 is a fixed-frequency step-up DC/DC
converter that is ideal for driving white LEDs for
• DC Voltage LED Current Control
display backlighting and other lighting functions. With
• Input Undervoltage Lockout
fully integrated synchronous switching (no external
• Internal Output Over-Voltage Protection (OVP)
schottky diode required) and a low feedback voltage
Circuitry, with no External Zener Diode
(515 mV), power efficiency of the LM3501 circuit has
Required LM3501-16: 15.5V OVP; LM3501-21:
been optimized for lighting applications in wireless
phones and other portable products (single cell Li-Ion
20.5V OVP.
or 3-cell NiMH battery supplies). The LM3501
• Requires Only a Small 16V (LM3501-16) or 25V
operates with a fixed 1 MHz switching frequency.
(LM3501-21) Ceramic Capacitor at the Input
When used with ceramic input and output capacitors,
and Output
the LM3501 provides a small, low-noise, low-cost
• Thermal Shutdown
solution.
• 0.1µA shutdown Current
• Small 8-Bump Thin DSBGA Package

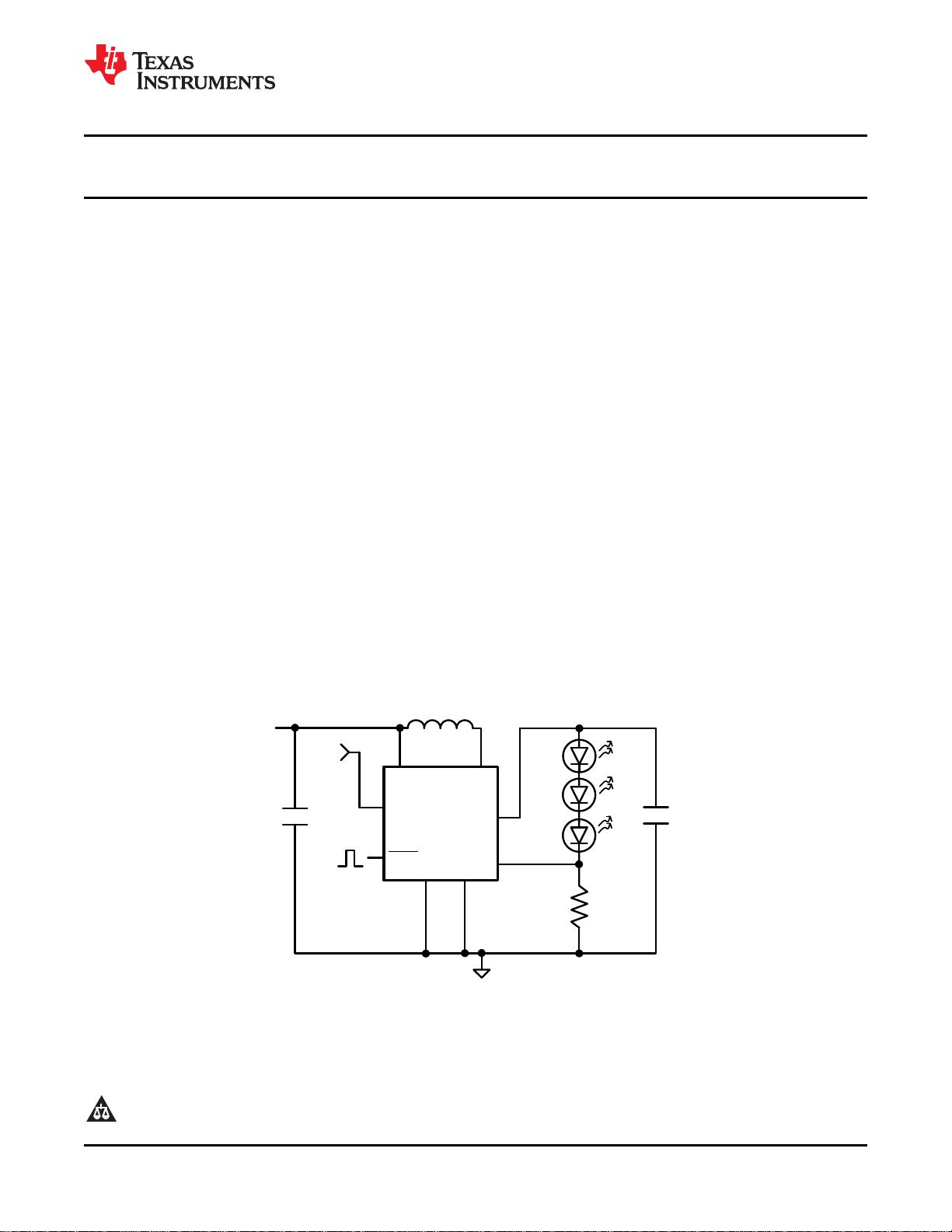

Typical Application Circuit
Figure 1. Typical 3 LED Application
