http://onsemi.com
Semiconductor Components Industries, LLC, 2013
December, 2013
3 12456
9
7
8
10
11
12
16 1817151413
22
24
23
21
20
19
VCC IN2 IN1 EN1 EXTRA SGND
(NC)
VM
VM
VG
C1H
C1L
OUT4 OUT3 PGND PGND OUT2 OUT1
(NC)
VM
VM
IN4
IN3
EN2
0.1uF
+
10uF
C2
C1
LV8402GP
C4
0.1uF
C3
0.01uF
CPU
＋Vmotor
＋Vcc
M
LV8402GP
Overview
LV8402GP is a 2ch forward/reverse motor driver IC using D-MOS FET for output stage. As MOS circuit is
used, it supports the PWM input. Its features are that the on resistance (0.75 typ) and current dissipation
are low.
It also provides protection functions such as heat protection circuit and reduced voltage detection and is
optimal for the motors that need high-current.
Function
2ch forward/reverse motor driver.
Low power consumption
Low-ON resistance 0.75.
Built-in EXTRA mode for PWM port reduction when a motor drives by two phase excitation.
Built-in low voltage reset and thermal shutdown circuit.
4 mode function forward/reverse, brake and standby
Built-in charge pump.
Typical Applications
SLR-Camera lens anti-shake/Iris /auto focus control
LCD projector lens focus /pan-tilt drive
Battery powered toys and games
Portable printers/scanners
Robotic actuators and pumps

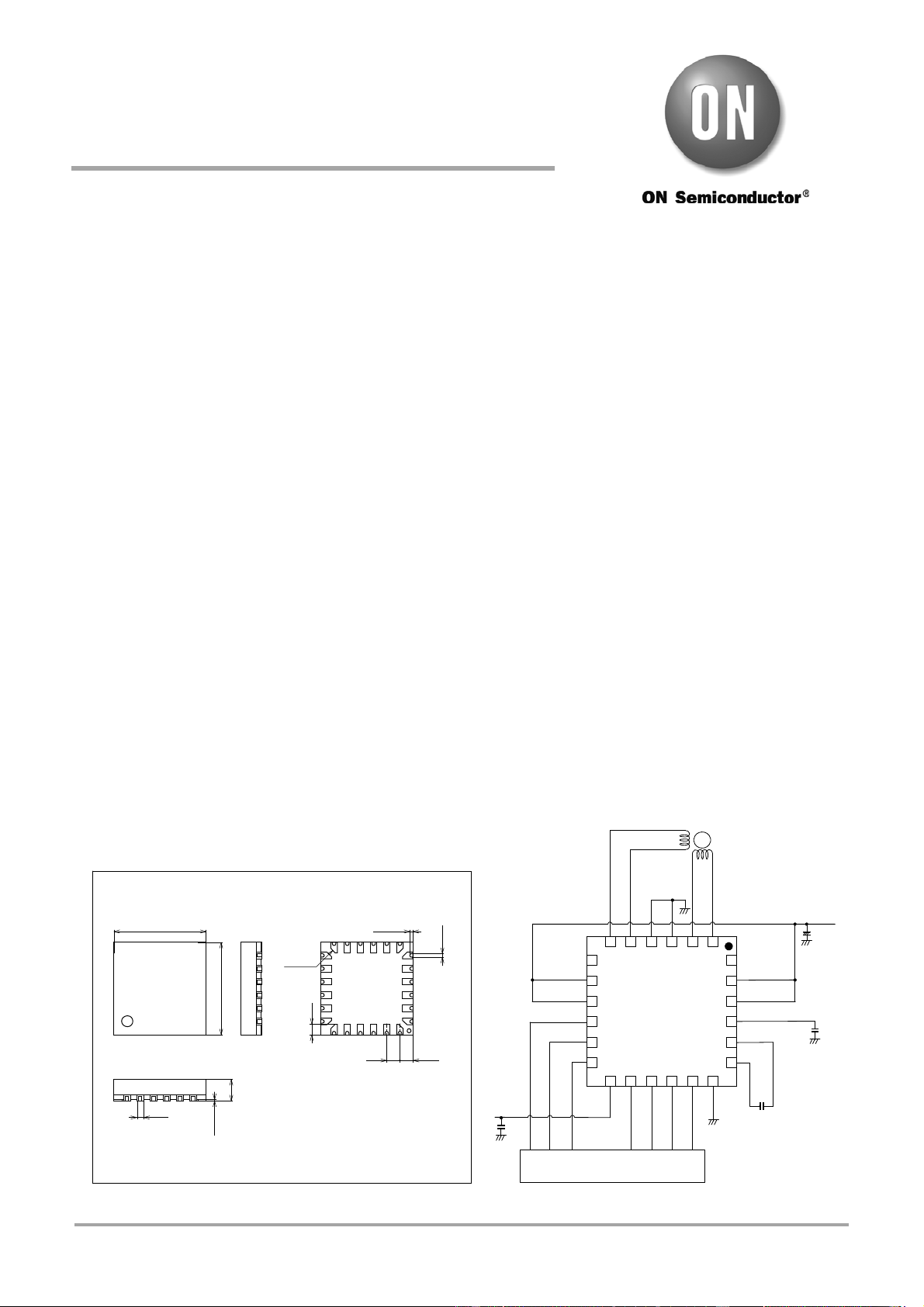

Package Dimensions
unit : mm (typ)
Bi-CMOS IC
2ch Forward/Reverse
Motor Driver
Application Note
SANYO : VCT24(3.5X3.5)
3.5
3.5
0.4
0.8
(0.035)
12
24
0.5
(0.5)
TOP VIEW SIDE VIEW
SIDE VIEW
BOTTOM VIEW
(0.125)
(C0.17)
(0.13)
0.25
