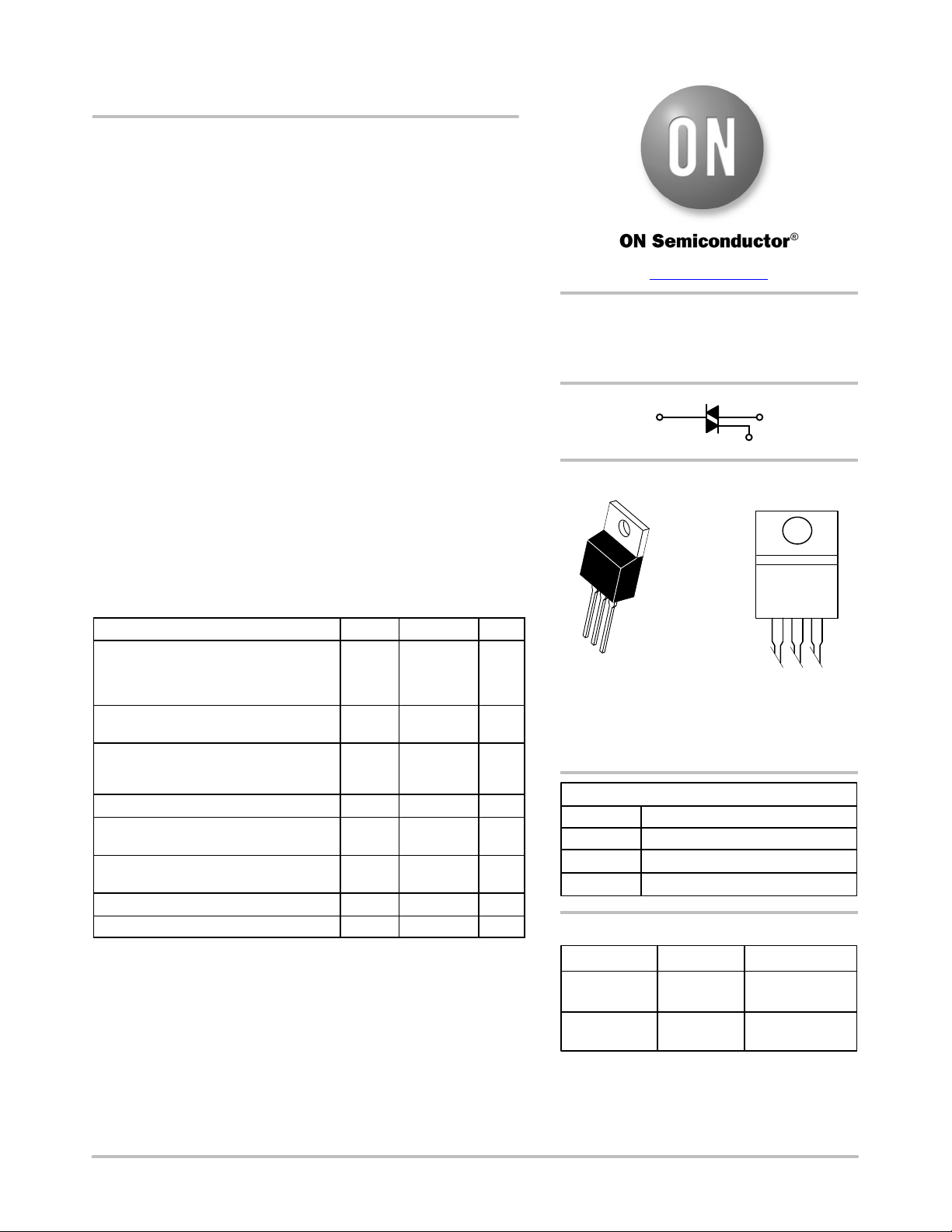

© Semiconductor Components Industries, LLC, 2014
November, 2014 − Rev. 4
1 Publication Order Number:
MAC12SM/D
MAC12SM, MAC12SN
Sensitive Gate Triacs
Silicon Bidirectional Thyristors
Designed for industrial and consumer applications for full wave
control of AC loads such as appliance controls, heater controls, motor
controls, and other power switching applications.
Features
• Sensitive Gate Allows Triggering by Microcontrollers and other
Logic Circuits
• Blocking Voltage to 800 Volts
• On-State Current Rating of 12 Amperes RMS at 70°C
• High Surge Current Capability − 90 Amperes
• Rugged, Economical TO−220AB Package
• Glass Passivated Junctions for Reliability and Uniformity
• Maximum Values of I
GT
, V
GT
and I
H
Specified for Ease of Design
• High Commutating di/dt − 8.0 A/ms Minimum at 110°C
• Immunity to dV/dt − 15 V/msec Minimum at 110°C
• Operational in Three Quadrants: Q1, Q2, and Q3
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS (T
J
= 25°C unless otherwise noted)
Rating
Symbol Value Unit
Peak Repetitive Off−State Voltage (Note 1)
(T
J
= −40 to 110°C, Sine Wave,
50 to 60 Hz, Gate Open) MAC12SM
MAC12SN
V
DRM,
V
RRM
600
800
V
On-State RMS Current
(All Conduction Angles; T
C
= 70°C)
I
T(RMS)
12 A
Peak Non-Repetitive Surge Current
(One Full Cycle Sine Wave, 60 Hz,
T
J
= 110°C)
I
TSM
90 A
Circuit Fusing Consideration (t = 8.33 ms) I
2
t 33 A
2
sec
Peak Gate Power
(Pulse Width = 1.0 msec, T
C
= 70°C)
P
GM
16 W
Average Gate Power
(t = 8.3 msec, T
C
= 70°C)
P
G(AV)
0.35 W
Operating Junction Temperature Range T
J
−40 to 110 °C
Storage Temperature Range T
stg
−40 to 150 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. (V
DRM
and V
RRM
for all types can be applied on a continuous basis. Blocking
voltages shall not be tested with a constant current source such that the
voltage ratings of the devices are exceeded.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
TRIACS
12 AMPERES RMS
600 thru 800 VOLTS
TO−220
CASE 221A
STYLE 4
1
www.onsemi.com
MAC12SxG
AYWW
MARKING
DIAGRAM
x = M, or N
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
2
3
Device Package Shipping
ORDERING INFORMATION
MAC12SNG TO−220
(Pb−Free)
50 Units / Rail
MAC12SMG TO−220
(Pb−Free)
50 Units / Rail
MT1
G
MT2
PIN ASSIGNMENT
1
2
3 Gate
Main Terminal 1
Main Terminal 2
4
Main Terminal 2
