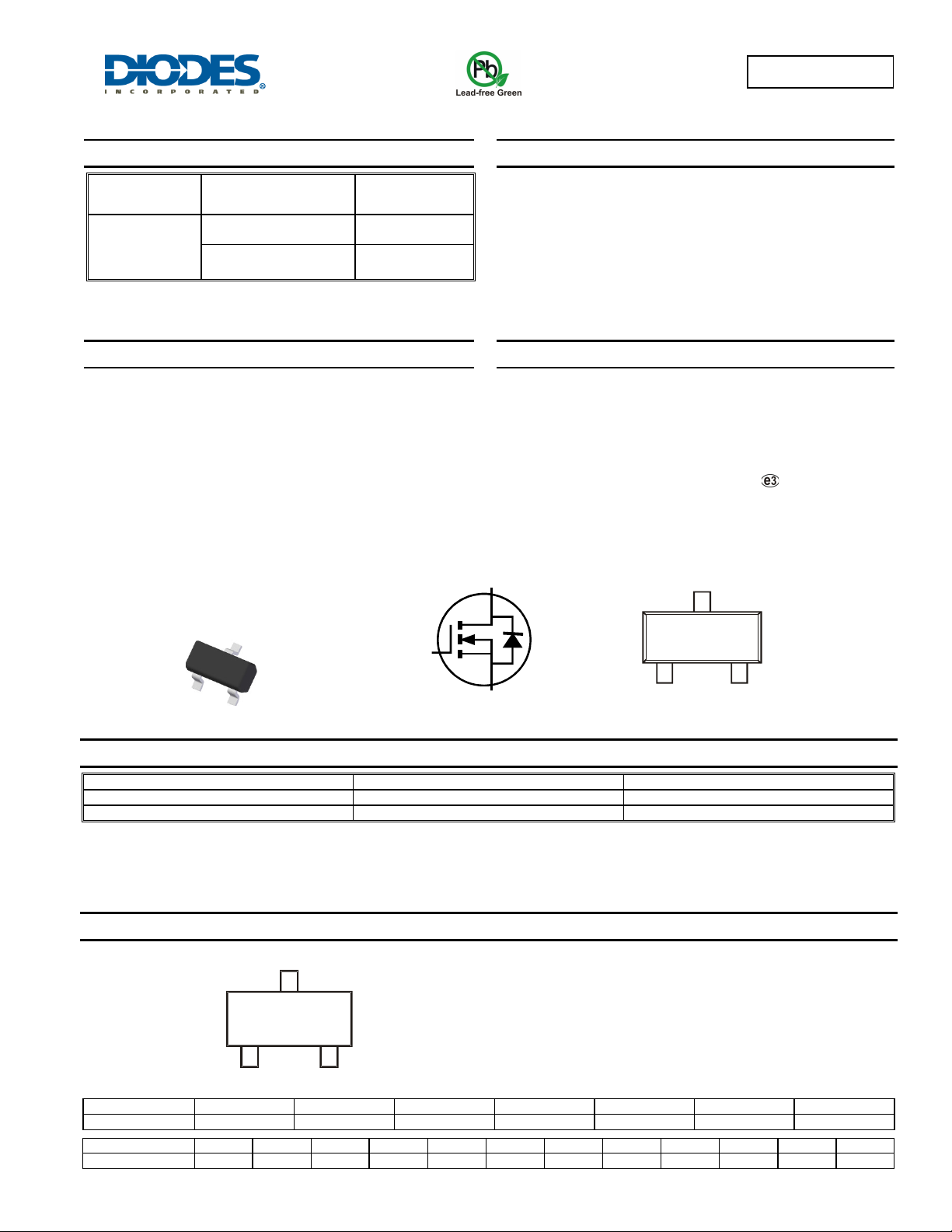

DMN3042L
Document number: DS37539 Rev. 2- 2
1 of 6
www.diodes.com
January 2015
© Diodes Incorporated
DM
N3042
L
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max I
D
max
30V
26.5mΩ @ V
GS
= 10V
5.8A
32mΩ @ V
GS
= 4.5V
5.0A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
• Battery Charging
• Power Management Functions
• DC-DC Converters
• Portable Power Adaptors
Features and Benefits
• Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Output Leakage
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Terminals Connections: See Diagram Below
• Weight: 0.008 grams (Approximate)
SOT23
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN3042L-7 SOT23 3,000/Tape & Reel
DMN3042L-13 SOT23 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
SOT23
Date Code Key
Year
2009
2010
2011
2012
2013
2014
2015
Code
W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Ju
l
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Top View
Internal Schematic
Top View
D
G
S
4L = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
D
S
G
4L
YM
