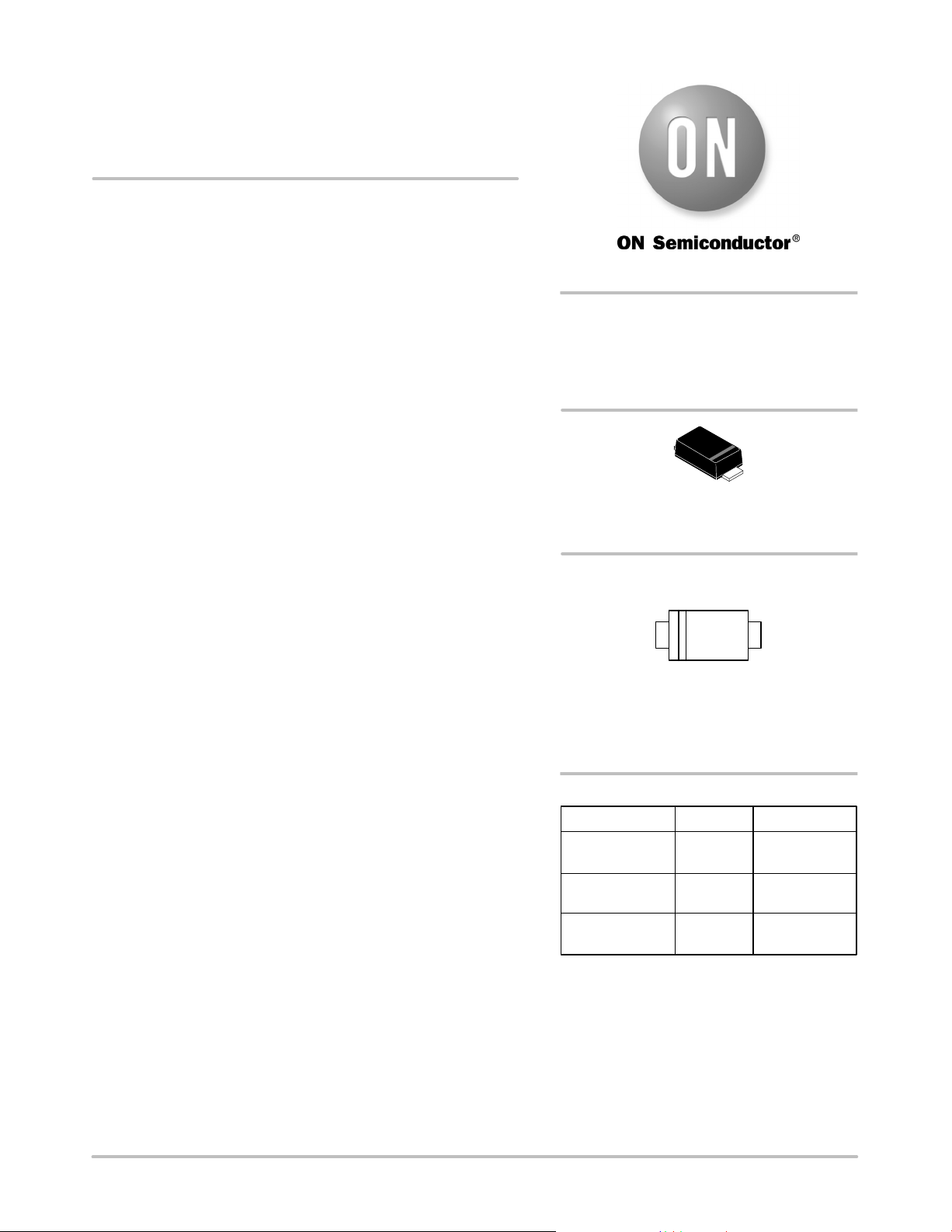

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 3
1 Publication Order Number:
MBR120LSFT1/D
MBR120LSFT1G,
NRVB120LSFT1G,
MBR120LSFT3G
Surface Mount
Schottky Power Rectifier
Plastic SOD−123 Package
This device uses the Schottky Barrier principle with a large area
metal−to−silicon power diode. Ideally suited for low voltage, high
frequency rectification or as free wheeling and polarity protection
diodes in surface mount applications where compact size and weight
are critical to the system. This package also provides an easy to work
with alternative to leadless 34 package style. Because of its small size,
it is ideal for use in portable and battery powered products such as
cellular and cordless phones, chargers, notebook computers, printers,
PDAs and PCMCIA cards. Typical applications are AC−DC and
DC−DC converters, reverse battery protection, and “Oring” of
multiple supply voltages and any other application where performance
and size are critical.
Features
Guardring for Stress Protection
Low Forward Voltage
125C Operating Junction Temperature
Epoxy Meets UL 94 V−0 @ 0.125 in
Package Designed for Optimal Automated Board Assembly
ESD Rating:
Human Body Model = 3B
Machine Model = C
AEC−Q101 Qualified and PPAP Capable
NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
All Packages are Pb−Free*
Mechanical Characteristics
Device Marking: L2L
Polarity Designator: Cathode Band
Weight: 11.7 mg (approximately)
Case: Epoxy, Molded
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
SOD−123FL
CASE 498
PLASTIC
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERES
20 VOLTS
http://onsemi.com
L2L
M
G
G
MARKING DIAGRAM
L2L = Specific Device Code
M = Date Code
G = Pb−Free Package
MBR120LSFT1G SOD−123FL
(Pb−Free)
3,000 /
Tape & Reel **
MBR120LSFT3G SOD−123FL
(Pb−Free)
10,000 /
Tape & Reel ***
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
(Note: Microdot may be in either location)
NRVB120LSFT1G SOD−123FL
(Pb−Free)
3,000 /
Tape & Reel **
** 8 mm Tape, 7” Reel
*** 8 mm Tape, 13” Reel
