Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 7
1 Publication Order Number:
MBRS120T3/D

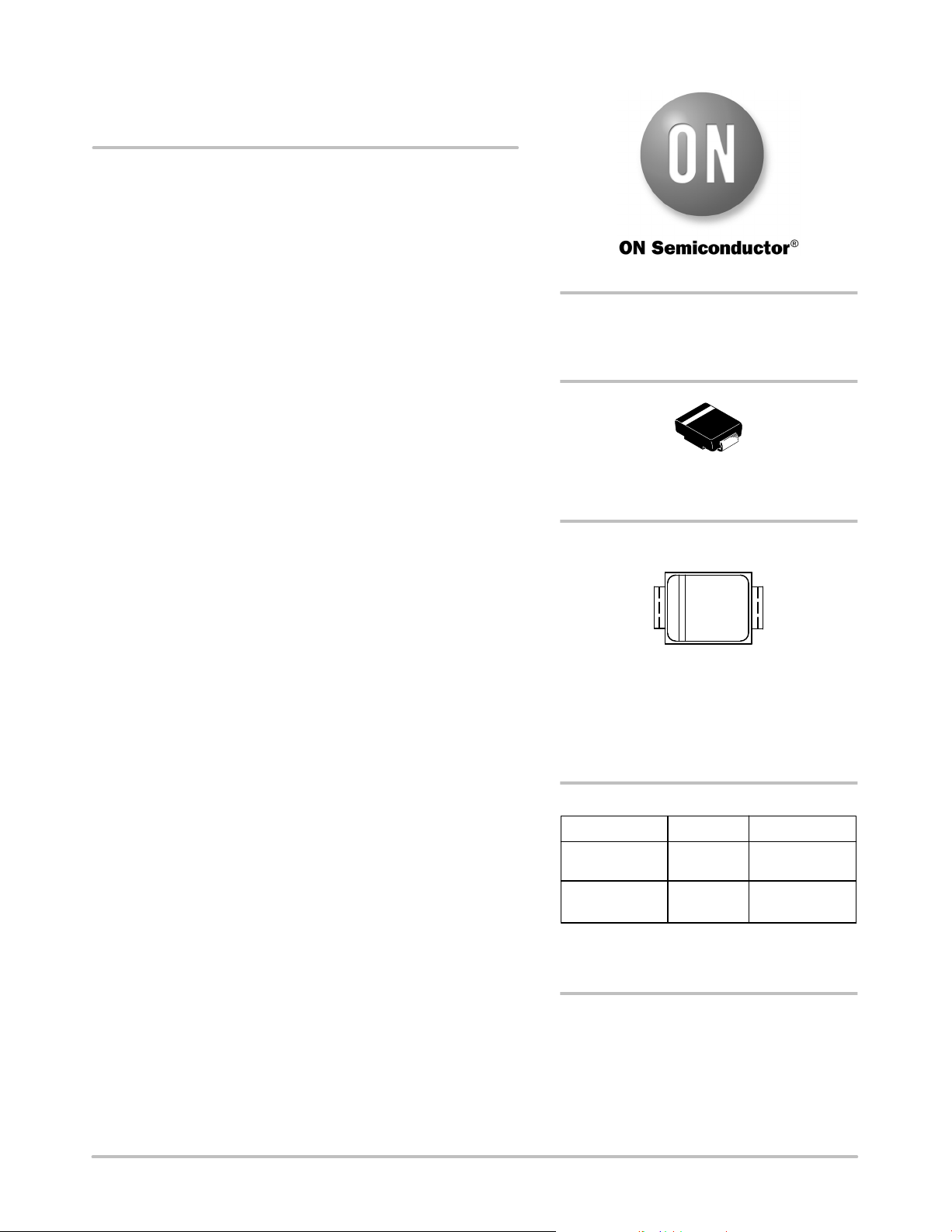

MBRS120T3G,
SBRS8120T3G
Preferred Device
Surface Mount
Schottky Power Rectifier
This device employs the Schottky Barrier principle in a large area
metal−to−silicon power diode. State−of−the−art geometry features
epitaxial construction with oxide passivation and metal overlay
contact. Ideally suited for low voltage, high frequency rectification, or
as free wheeling and polarity protection diodes in surface mount
applications where compact size and weight are critical to the system.
Features
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
Highly Stable Oxide Passivated Junction
Very Low Forward Voltage Drop (0.55 Volts Max @ 1.0 A, T
J
= 25C)
Excellent Ability to Withstand Reverse Avalanche Energy Transients
Guard−Ring for Stress Protection
ESD Ratings:
Human Body Model = 3B (> 16000 V)
Machine Model = C (> 400 V)
AEC−Q101 Qualified and PPAP Capable
SBRS8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
All Packages are Pb−Free*
Mechanical Characteristics
Case: Epoxy, Molded
Weight: 95 mg (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Cathode Polarity Band
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
SMB
CASE 403A
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERE, 20 VOLTS
Preferred devices are recommended choices for future use
and best overall value.
MARKING DIAGRAM
B12 = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
AYWW
B12G
G
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
MBRS120T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
http://onsemi.com
(Note: Microdot may be in either location)
SBRS8120T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
