MC100LVEL58
3.3V ECL 2:1 Multiplexer
Description
The MC100LVEL58 is a 2:1 multiplexer. The device is pin and
functionally equivalent to the EL58 and works from a 3.3 V supply.
With AC performance similar to the EL58 device, the LVEL58 is ideal
for low voltage applications which require the ultimate in AC
performance.
Features
• 440 ps Typical Propagation Delays
• ESD Protection: > 4 kV Human Body Model,
> 200 V Machine Model
• The 100 Series Contains Temperature Compensation
• PECL Mode Operating Range: V
CC
= 3.0 V to 3.8 V
with V
EE
= 0 V
• NECL Mode Operating Range: V
CC
= 0 V
with V
EE
= −3.0 V to −3.8 V
• Internal Input Pulldown Resistors
• Q Output will Default LOW with Inputs Open or at V
EE
• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
• Moisture Sensitivity Level
♦ Level 1 for SOIC−8 NB
♦ Level 3 for TSSOP−8
♦ For Additional Information, see Application Note AND8003/D
• Flammability Rating: UL 94 V−0 @ 0.125 in,
Oxygen Index: 28 to 34
• Transistor Count = 93 devices
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
*For additional marking information, refer to
Application Note AND8002/D
.

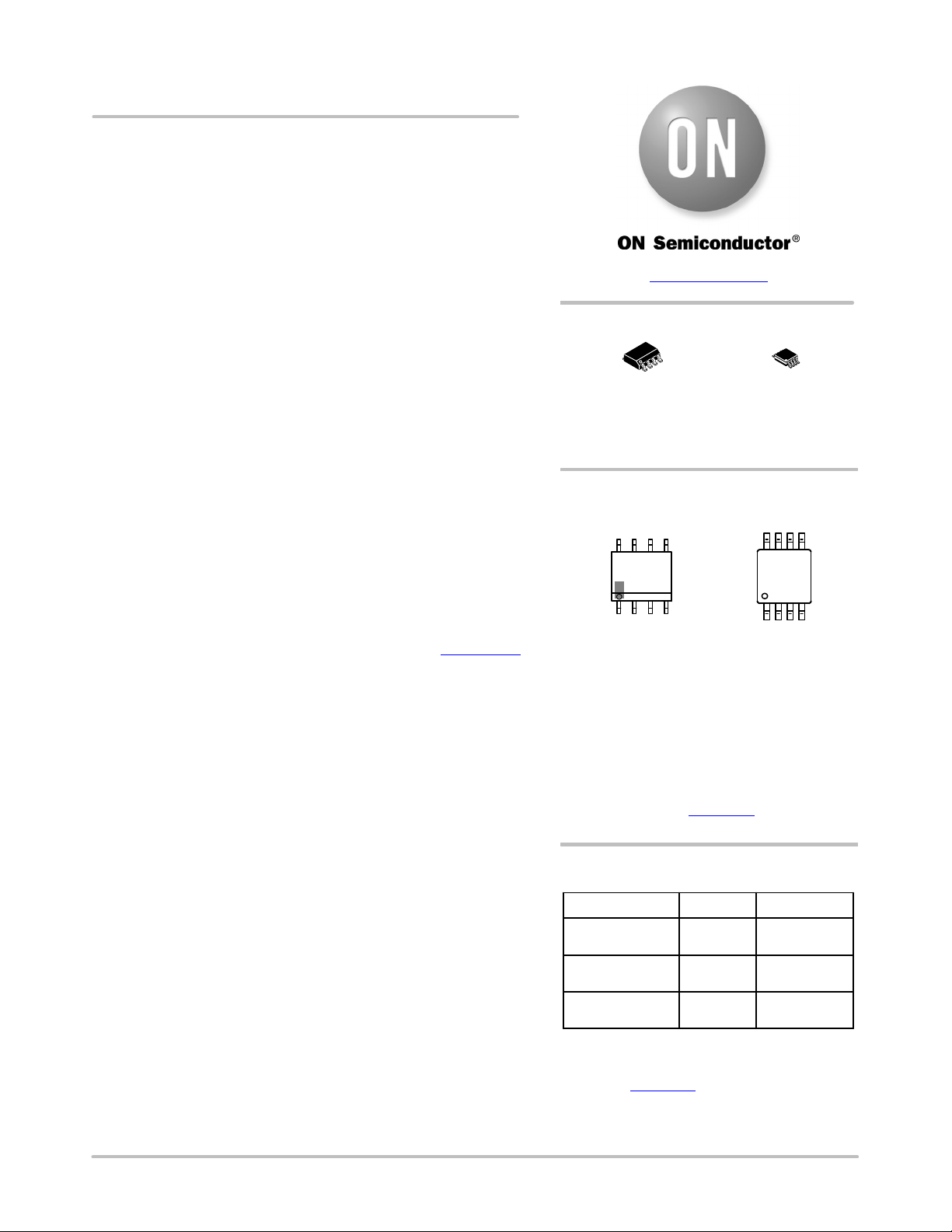

MARKINGDIAGRAMS*
KV58
ALYWG
G
SOIC−8 NB
D SUFFIX
CASE 751
1
8
TSSOP−8
DT SUFFIX
CASE 948R
1
8
1
8
www.onsemi.com
KVL58
ALYW
G
1
8
(Note: Microdot may be in either location)
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
G = Pb-Free Package
SOIC−8 NB TSSOP−8
ORDERING INFORMATION
Device Package Shipping
†
MC100LVEL58DG SOIC−8 NB
(Pb-Free)
98 Units/Tube
MC100LVEL58DTG TSSOP−8
(Pb-Free)
100 Units/Tube
TSSOP−8
(Pb-Free)
MC100LVEL58DTR2G 2500/Tape & Reel
†For information on tape and reel specifications, in-
cluding part orientation and tape sizes, please refer
to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D
.
