Document Number: MC13892
Rev. 19.0, 4/2014
Freescale Semiconductor
Technical Data
© Freescale Semiconductor, Inc., 2010 - 2014. All rights reserved.
Power Management Integrated
Circuit (PMIC) for i.MX35/51
The MC13892 is a Power Management Integrated Circuit (PMIC)
designed specifically for use with the Freescale i.MX35 and i.MX51
families. It is also compatible with the i.MX27, i.MX31, and i.MX37
application processors targeting netbooks, ebooks, smart mobile
devices, smart phones, personal media players, and portable
navigation devices. This device is powered by SMARTMOS
technology.
Features
• Battery charger system for wall charging and USB charging
• 10-bit ADC for monitoring battery and other inputs, plus a coulomb
counter support module
• Four adjustable output buck regulators for direct supply of the
processor core and memory
• 12 adjustable output LDOs with internal and external pass devices
• Boost regulator for supplying RGB LEDs
• Serial backlight drivers for displays and keypad, plus RGB LED
drivers
• Power control logic with processor interface and event detection
• Real time clock and crystal oscillator circuitry, with coin cell backup
and support for external secure real time clock on a companion
system processor IC
• Touch screen interface
• SPI/I
2
C bus interface for control and register access

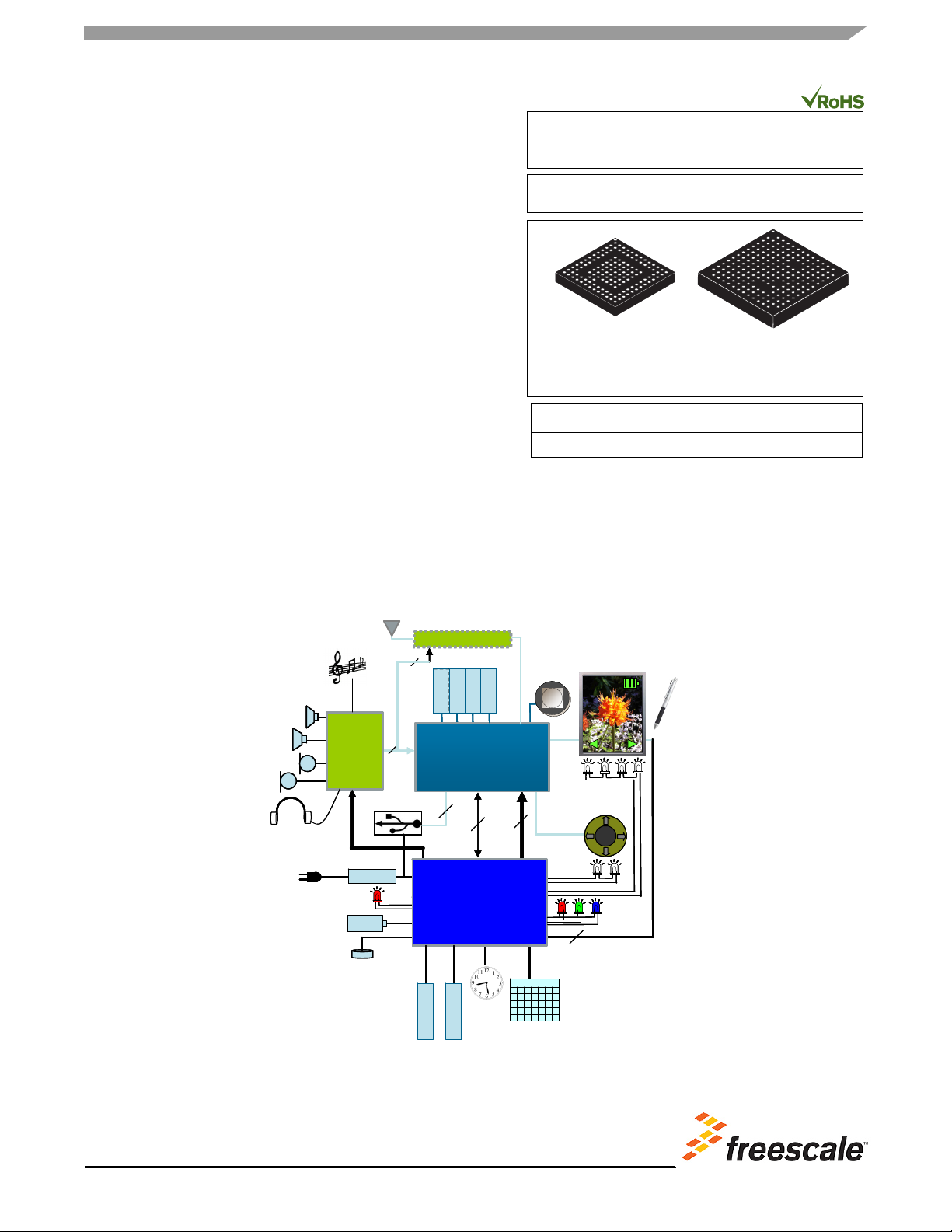

Figure 1. MC13892 Typical Operating Circuit
POWER MANAGEMENT
13892
VK SUFFIX
98ASA10820D
139-PIN 7X7MM BGA
VL SUFFIX
98ASA10849D
186-PIN 12X12MM BGA
ORDERING INFORMATION
See Device Variation Table on Page 2.
CALENDAR
USB
Li Ion
Battery
Adapter
IRDA
Camera
AP
Aud& Pwr Mgmt
TV Out
Camera
MC13892
Power Mgmt &
User Interface
i.MX51
Apps Processor
NVR
DRAM
BT (+FM)
Display
Backlight
SPI/I2C
SSI
UI
RTC
Touch
Screen
MMC
AP
Aud
Audio
IC
Mic Inputs
Stereo
Loudspeakers
Line
In/Out
UI
Backlight
Stereo
headphones
Light Sensor
Thermistor
Power
Power
Coin Cell
Battery
Charger LED
RGB
Color
Indicators
CALENDARCALENDAR
USB
Li Ion
Battery
Adapter
IRDA
Camera
AP
Aud& Pwr Mgmt
TV Out
Camera
MC13892
Power Mgmt &
User Interface
i.MX51
Apps Processor
NVR
DRAM
BT (+FM)
Display
Backlight
SPI/I2C
SSI
UIUI
RTC
Touch
Screen
MMC
AP
Aud
Audio
IC
Mic Inputs
Stereo
Loudspeakers
Line
In/Out
UI
Backlight
Stereo
headphones
Light Sensor
Thermistor
Power
Power
Coin Cell
Battery
Charger LED
RGB
Color
Indicators
Integrated Circuit
MC13892
Power Management
Verzeichnis
- ・ Konfiguration des Pinbelegungsdiagramms on Seite 4 Seite 5 Seite 6 Seite 7 Seite 8
- ・ Abmessungen des Paketumrisses on Seite 152 Seite 153 Seite 154 Seite 155
- ・ Teilenummerierungssystem on Seite 1
- ・ Blockdiagramm on Seite 3 Seite 89 Seite 109
- ・ Typisches Anwendungsschaltbild on Seite 71 Seite 72 Seite 106 Seite 151
- ・ Beschreibung der Funktionen on Seite 6 Seite 7 Seite 8 Seite 9 Seite 10
- ・ Technische Daten on Seite 1 Seite 43 Seite 49 Seite 51 Seite 53
- ・ Anwendungsbereich on Seite 6 Seite 17 Seite 103 Seite 151
- ・ Elektrische Spezifikation on Seite 11 Seite 12 Seite 13 Seite 14 Seite 15
