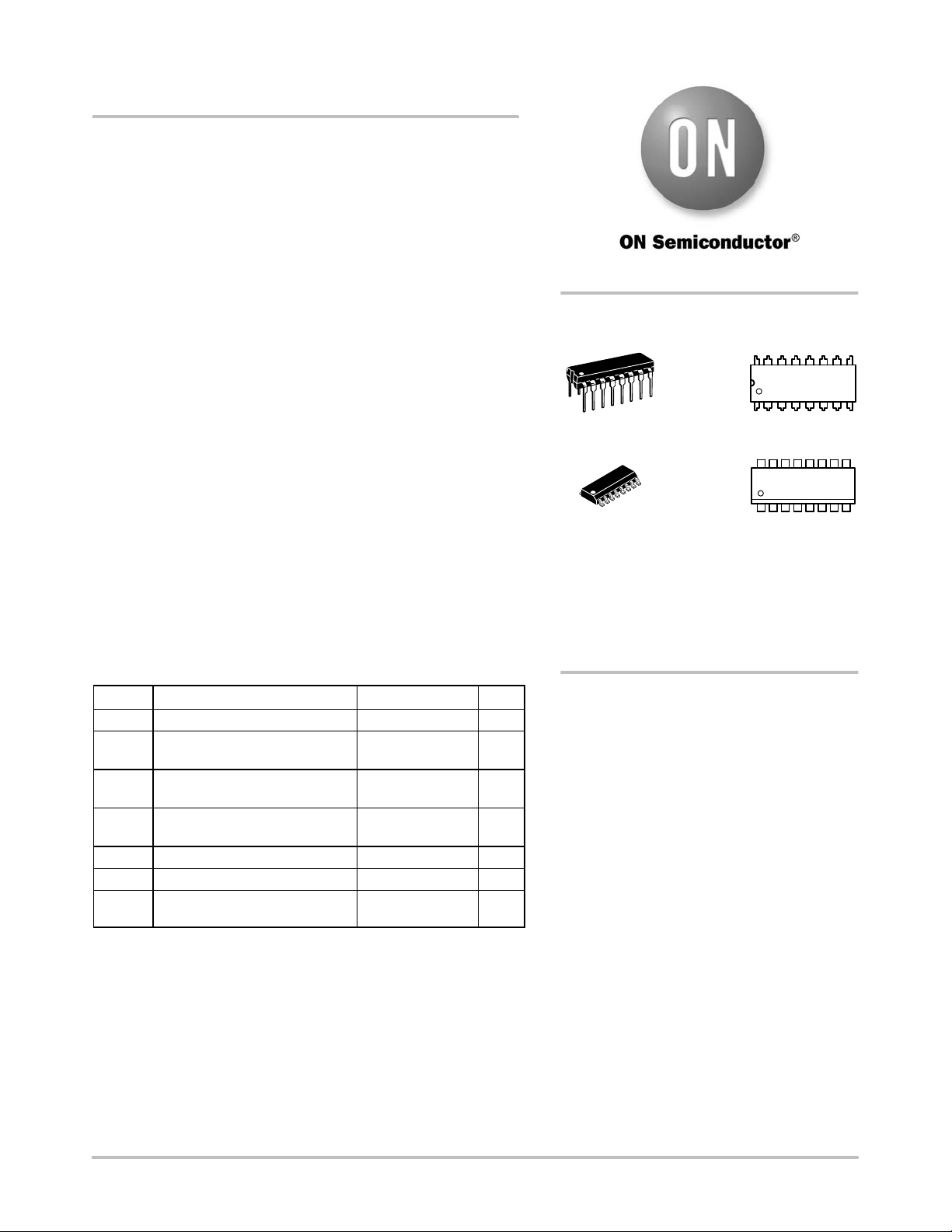

© Semiconductor Components Industries, LLC, 2013
April, 2013 − Rev. 8
1 Publication Order Number:
MC14014B/D
MC14014B, MC14021B
8-Bit Static Shift Register
The MC14014B and MC14021B 8−bit static shift registers are
constructed with MOS P−channel and N−channel enhancement mode
devices in a single monolithic structure. These shift registers find primary
use in parallel−to−serial data conversion, synchronous and asynchronous
parallel input, serial output data queueing; and other general purpose
register applications requiring low power and/or high noise immunity.
Features
• Synchronous Parallel Input/Serial Output (MC14014B)
• Asynchronous Parallel Input/Serial Output (MC14021B)
• Synchronous Serial Input/Serial Output
• Full Static Operation
• “Q” Outputs from Sixth, Seventh, and Eighth Stages
• Double Diode Input Protection
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low−power TTL Loads or One Low−power
Schottky TTL Load Over the Rated Temperature Range
• MC14014B Pin−for−Pin Replacement for CD4014B
• MC14021B Pin−for−Pin Replacement for CD4021B
• These Devices are Pb−Free and are RoHS Compliant
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
MAXIMUM RATINGS (Voltages Referenced to V
SS
)
Symbol
Parameter Value Unit
V
DD
DC Supply Voltage Range −0.5 to +18.0 V
V
in
, V
out
Input or Output Voltage Range
(DC or Transient)
−0.5 to V
DD
+ 0.5 V
I
in
, I
out
Input or Output Current
(DC or Transient) per Pin
± 10 mA
P
D
Power Dissipation, per Package
(Note 1)
500 mW
T
A
Ambient Temperature Range −55 to +125 °C
T
stg
Storage Temperature Range −65 to +150 °C
T
L
Lead Temperature
(8−Second Soldering)
260 °C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Temperature Derating:
Plastic “P and D/DW” Packages: – 7.0 mW/_C From 65_C To 125_C
This device contains protection circuitry to guard against damage due to high
static voltages or electric fields. However, precautions must be taken to avoid
applications of any voltage higher than maximum rated voltages to this
high−impedance circuit. For proper operation, V
in
and V
out
should be constrained
to the range V
SS
v (V
in
or V
out
) v V
DD
.
Unused inputs must always be tied to an appropriate logic voltage level
(e.g., either V
SS
or V
DD
). Unused outputs must be left open.
http://onsemi.com
MARKING
DIAGRAMS
PDIP−16
P SUFFIX
CASE 648
MC140xxBCP
AWLYYWWG
SOIC−16
D SUFFIX
CASE 751B
140xxBG
AWLYWW
xx = Specific Device Code
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G = Pb−Free Indicator
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
ORDERING INFORMATION
16
1
1
16
