MC14060B
14-Bit Binary Counter and
Oscillator
The MC14060B is a 14−stage binary ripple counter with an on−chip
oscillator buffer. The oscillator configuration allows design of either
RC or crystal oscillator circuits. Also included on the chip is a reset
function which places all outputs into the zero state and disables the
oscillator. A negative transition on Clock will advance the counter to
the next state. Schmitt trigger action on the input line permits very
slow input rise and fall times. Applications include time delay circuits,
counter controls, and frequency dividing circuits.
This device contains protection circuitry to guard against damage due
to high static voltages or electric fields. However, precautions must be
taken to avoid applications of any voltage higher than maximum rated
voltages to this high−impedance circuit. For proper operation, V
in
and
V
out
should be constrained to the range V
SS
v (V
in
or V
out
) v V
DD
.
Unused inputs must always be tied to an appropriate logic voltage
level (e.g., either V
SS
or V
DD
). Unused outputs must be left open.
Features
• Fully Static Operation
• Diode Protection on All Inputs
• Supply Voltage Range = 3.0 V to 18 V
• Capable of Driving Two Low−power TTL Loads or One
Low−power Schottky TTL Load Over the Rated Temperature
Range
• Buffered Outputs Available from Stages 4 Through 10 and
12 Through 14
• Common Reset Line
• Pin−for−Pin Replacement for CD4060B
• These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS (Voltages Referenced to V
SS
)
Symbol
Parameter Value Unit
V
DD
DC Supply Voltage Range −0.5 to +18.0 V
V
in
,
V
out
Input or Output Voltage Range
(DC or Transient)
−0.5 to V
DD
+0.5
V
I
in
,
I
out
Input or Output Current
(DC or Transient) per Pin
±10 mA
P
D
Power Dissipation, per Package
(Note 1)
500 mW
T
A
Ambient Temperature Range −55 to +125 °C
T
stg
Storage Temperature Range −65 to +150 °C
T
L
Lead Temperature (8 Second Soldering) 260 °C
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
1. Temperature Derating: Plastic “P and D/DW” Packages: –7.0 mW/°C from
65°C To 125°C.
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION

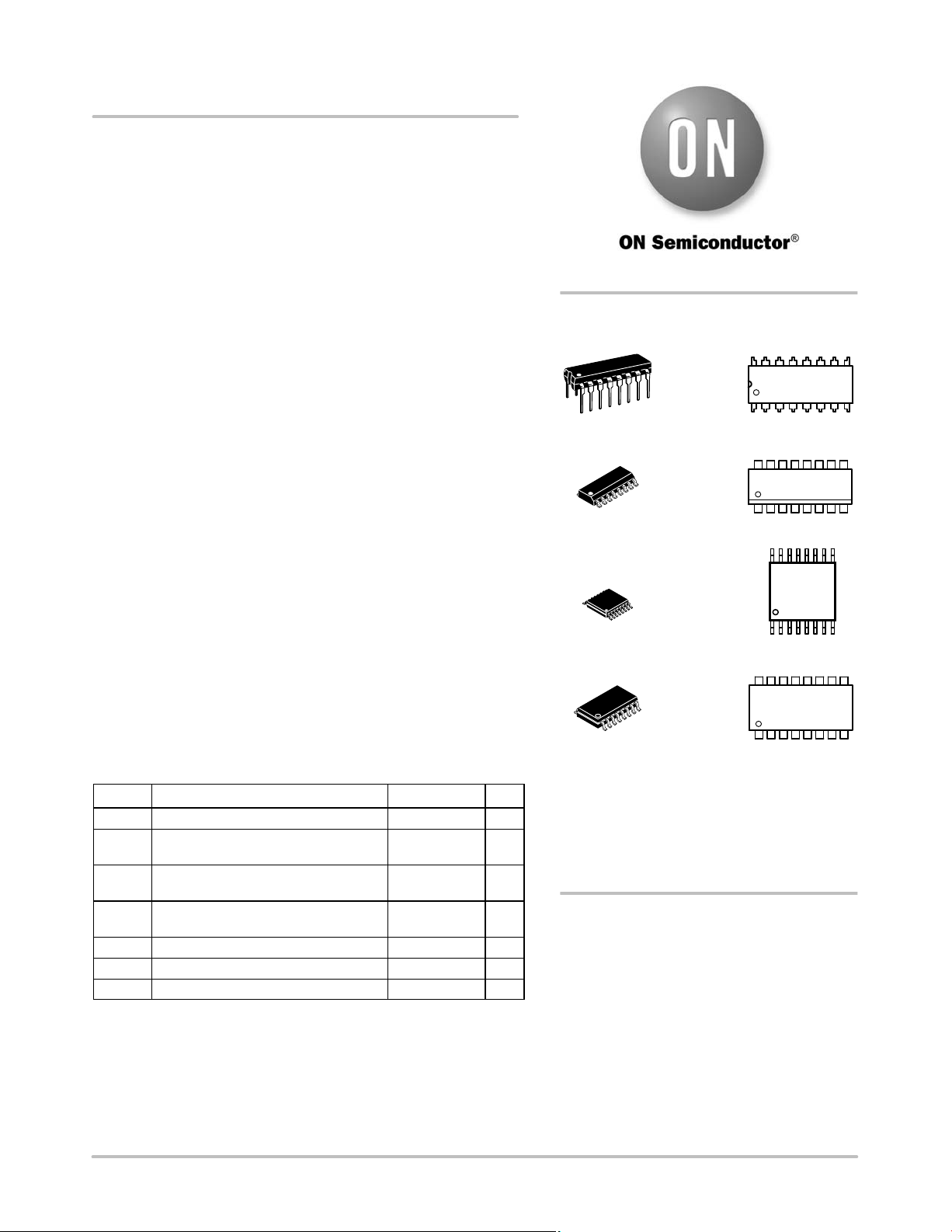

MARKING
DIAGRAMS
PDIP−16
P SUFFIX
CASE 648
MC14060BCP
AWLYYWWG
SOIC−16
D SUFFIX
CASE 751B
TSSOP−16
DT SUFFIX
CASE 948F
14060BG
AWLYWW
SOEIAJ−16
F SUFFIX
CASE 966
MC14060B
ALYWG
16
1
1
16
1
16
14
060B
ALYW G
G
1
16
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G or G = Pb−Free Package
(Note: Microdot may be in either location)
