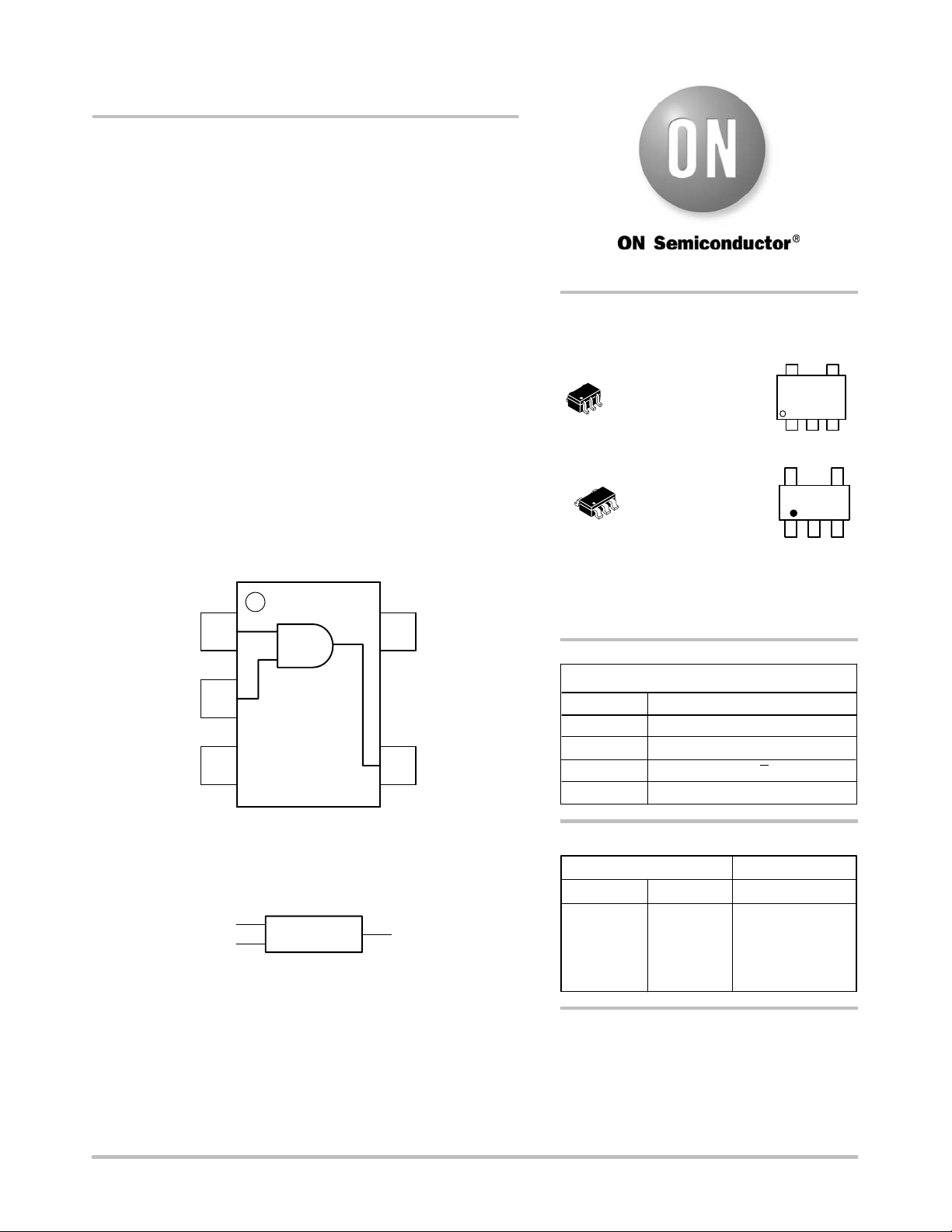

MC74VHC1G08
Single 2−Input AND Gate
The MC74VHC1G08 is an advanced high speed CMOS 2−input
AND gate fabricated with silicon gate CMOS technology.
The internal circuit is composed of multiple stages, including a
buffer output which provides high noise immunity and stable output.
The MC74VHC1G08 input structure provides protection when
voltages up to 7.0 V are applied, regardless of the supply voltage. This
allows the MC74VHC1G08 to be used to interface 5.0 V circuits to
3.0 V circuits.
Features
• High Speed: t
PD
= 3.5 ns (Typ) at V
CC
= 5.0 V
• Low Power Dissipation: I
CC
= 1.0 mA (Max) at T
A
= 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Chip Complexity: FETs = 62
• Pb−Free Packages are Available
V
CC
IN B
IN A
OUT Y
GND
IN A
IN B
OUT Y
&
Figure 1. Pinout (Top View)
Figure 2. Logic Symbol
1
2
3
4
5
MARKING
DIAGRAMS
http://onsemi.com
SC−88A/SOT−353/SC−70
DF SUFFIX
CASE 419A
TSOP−5/SOT−23/SC−59
DT SUFFIX
CASE 483
1
5
V2 M G
G
1
5
V2 M G
G
V2 = Device Code
M = Date Code
G = Pb−Free Package
L
L
H
H
L
H
L
H
FUNCTION TABLE
Inputs Output
AB
L
L
L
H
Y
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
PIN ASSIGNMENT
1
2
3 GND
IN B
IN A
4
5V
CC
OUT Y
(Note: Microdot may be in either location)
1
5
