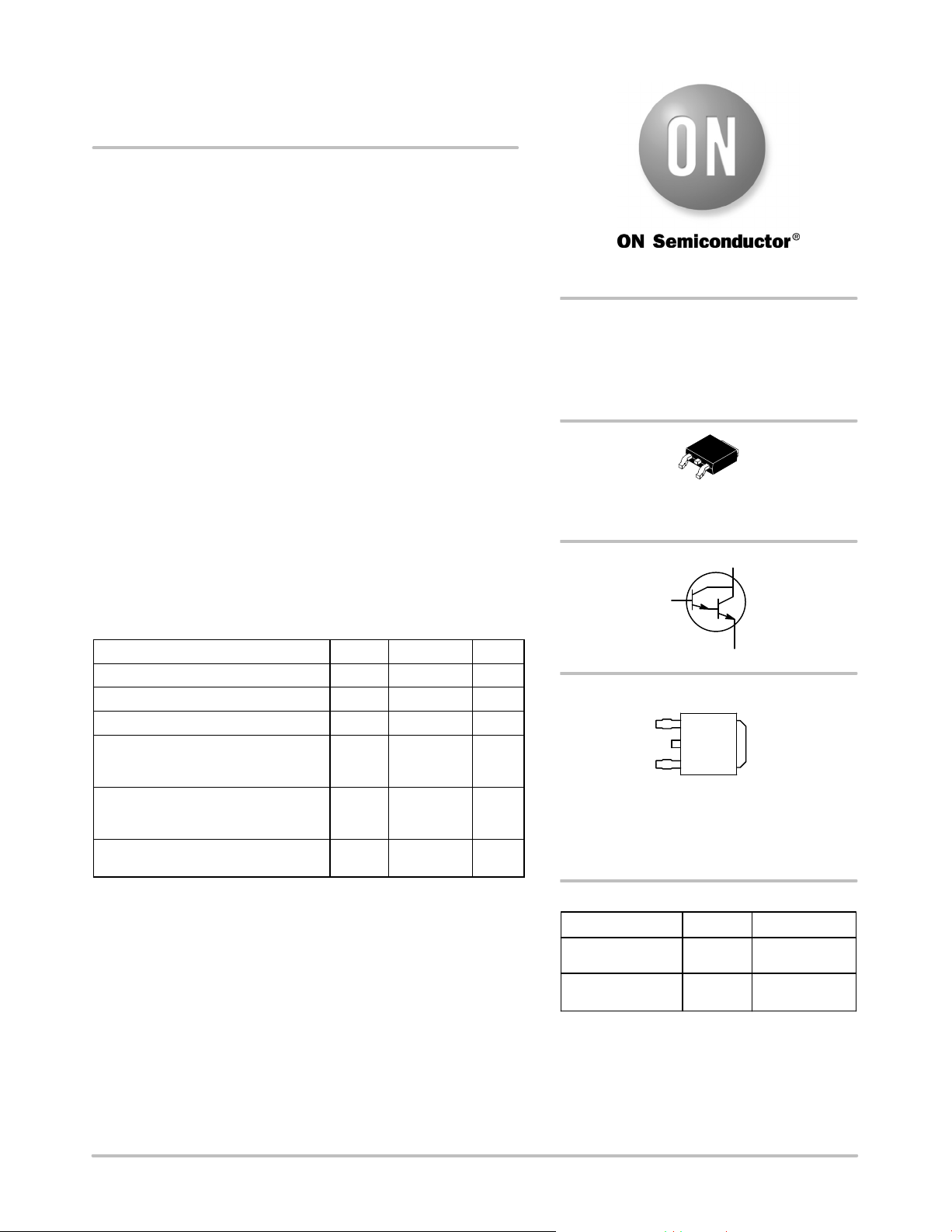

Semiconductor Components Industries, LLC, 2012
February, 2012 − Rev. 10
1 Publication Order Number:
MJD44E3/D
MJD44E3,
NJVMJD44E3T4G
Darlington Power Transistor
DPAK For Surface Mount Applications
Designed for general purpose power and switching output or driver
stages in applications such as switching regulators, converters, and
power amplifiers.
Features
Electrically Similar to Popular D44E3 Device
High DC Gain − 1000 Min @ 5.0 Adc
Low Sat. Voltage − 1.5 V @ 5.0 Adc
Compatible With Existing Automatic Pick and Place Equipment
Epoxy Meets UL 94 V−0 @ 0.125 in
ESD Ratings:
Human Body Model, 3B > 8000 V
Machine Model, C > 400 V
NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
These are Pb−Free Packages*
MAXIMUM RATINGS
Rating Symbol Max Unit
Collector−Emitter Voltage V
CEO
80 Vdc
Emitter−Base Voltage V
EB
7 Vdc
Collector Current − Continuous I
C
10 Adc
Total Power Dissipation
@ T
C
= 25C
Derate above 25C
P
D
20
0.16
W
W/C
Total Power Dissipation (Note 1)
@ T
A
= 25C
Derate above 25C
P
D
1.75
0.014
W
W/C
Operating and Storage Junction
Temperature Range
T
J
, T
stg
−55 to +150 C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. These ratings are applicable when surface mounted on the minimum pad
sizes recommended.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
NPN DARLINGTON SILICON
POWER TRANSISTORS
10 AMPERES
80 VOLTS, 20 WATTS
MARKING DIAGRAM
A = Assembly Location
Y = Year
WW = Work Week
J44E3 = Device Code
G = Pb−Free Package
Device Package Shipping
†
ORDERING INFORMATION
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
http://onsemi.com
DPAK
CASE 369C
STYLE 1
AYWW
J
44E3G
MJD44E3T4G DPAK
(Pb−Free)
2,500 /
Tape & Reel
COLLECTOR 2,4
BASE
1
EMITTER 3
NJVMJD44E3T4G DPAK
(Pb−Free)
2,500 /
Tape & Reel
