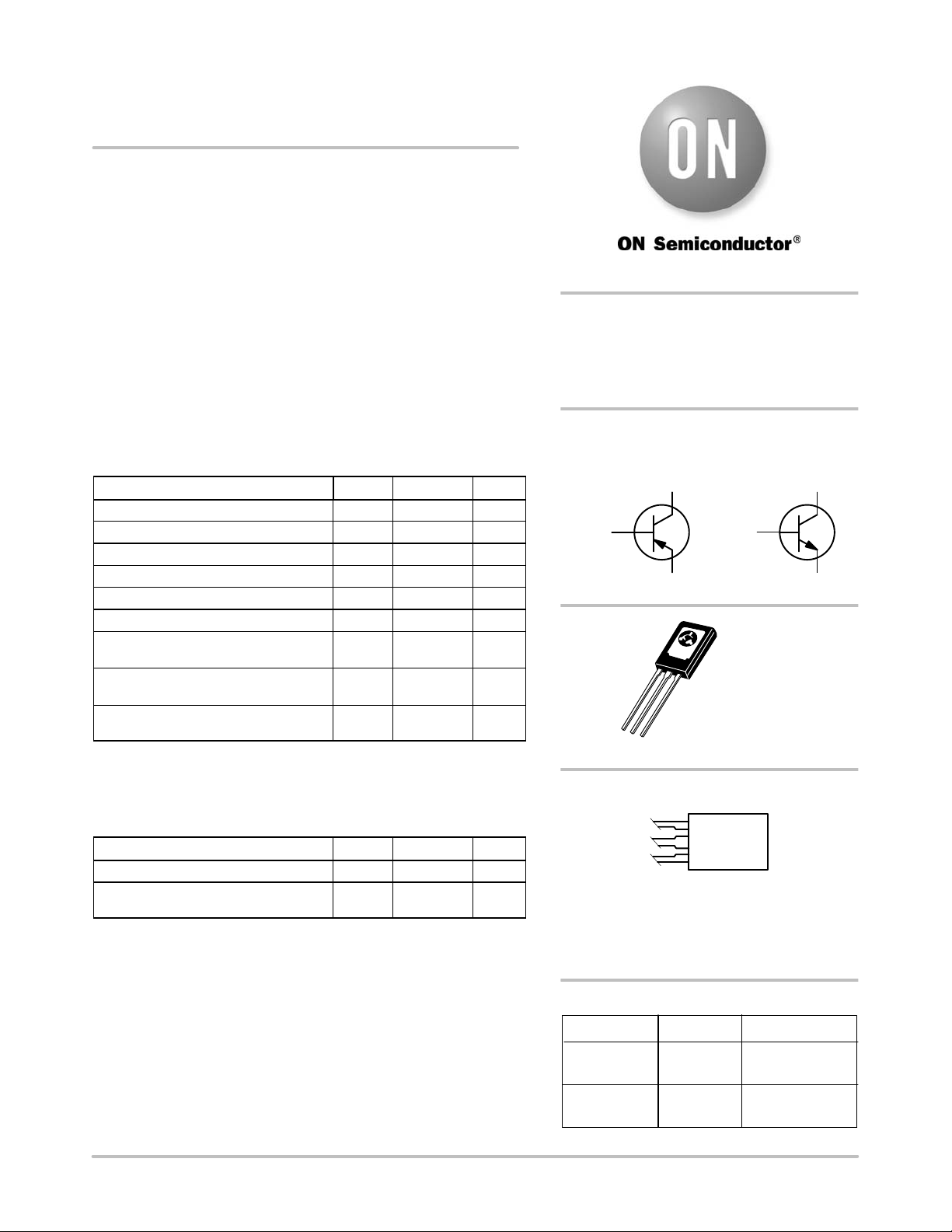

© Semiconductor Components Industries, LLC, 2013
September, 2013 − Rev. 14
1 Publication Order Number:
MJE243/D
MJE243 (NPN),
MJE253(PNP)
Complementary Silicon
Power Plastic Transistors
These devices are designed for low power audio amplifier and
low−current, high−speed switching applications.
Features
• High Collector−Emitter Sustaining Voltage
• High DC Current Gain
• Low Collector−Emitter Saturation Voltage
• High Current Gain Bandwidth Product
• Annular Construction for Low Leakages
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage V
CEO
100 Vdc
Collector−Base Voltage V
CB
100 Vdc
Emitter−Base Voltage V
EB
7.0 Vdc
Collector Current − Continuous I
C
4.0 Adc
Collector Current − Peak I
CM
8.0 Adc
Base Current I
B
10 Adc
Total Power Dissipation @ T
C
= 25_C
Derate above 25_C
P
D
15
120
W
mW/_C
Total Power Dissipation @ T
A
= 25_C
Derate above 25_C
P
D
1.5
12
W
mW/_C
Operating and Storage Junction
Temperature Range
T
J
, T
stg
–65 to +150
_C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Case
q
JC
8.34
_C/W
Thermal Resistance,
Junction−to−Ambient
q
JA
83.4
_C/W
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
ORDERING INFORMATION
4.0 AMPERES
POWER TRANSISTORS
COMPLEMENTARY SILICON
100 VOLTS, 15 WATTS
http://onsemi.com
MJE243G
TO−225
(Pb−Free)
500 Units/Box
MARKING DIAGRAM
YWW
JE2x3G
Y = Year
WW = Work Week
JE2x3 = Device Code
x = 4 or 5
G=Pb−Free Package
MJE253G
TO−225
(Pb−Free)
500 Units/Box
TO−225
CASE 77−09
STYLE 1
2
1
3
4
SCHEMATIC
3
BASE
EMITTER 1
COLLECTOR 2, 4
3
BASE
EMITTER 1
COLLECTOR 2, 4
PNP
NPN
