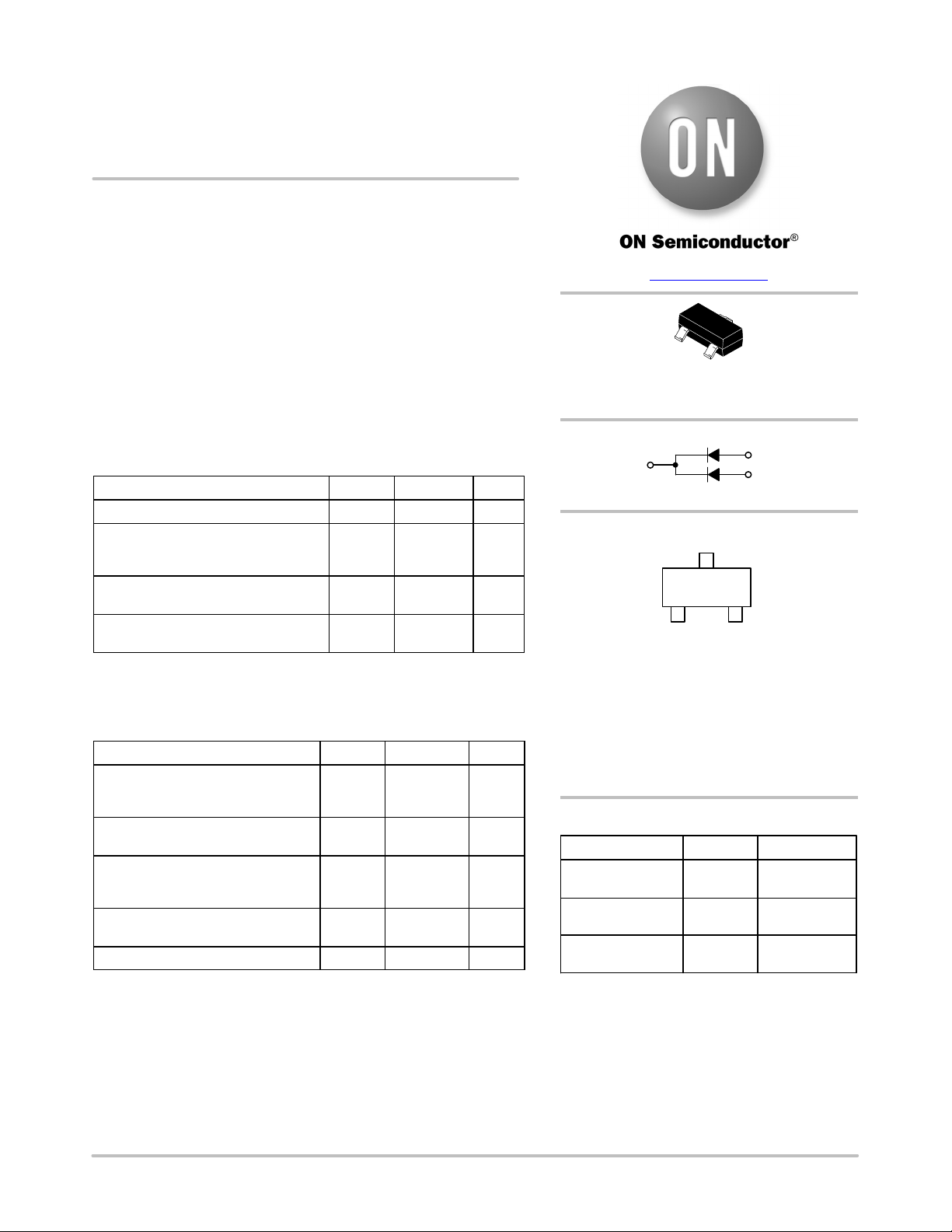

© Semiconductor Components Industries, LLC, 1994
October, 2016 − Rev. 8
1 Publication Order Number:
MMBD2837LT1/D
MMBD2837LT1G,
MMBD2838LT1G,
SMMBD2837LT1G
Monolithic Dual Switching
Diodes
Features
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS (EACH DIODE)
Rating Symbol Value Unit
Peak Reverse Voltage V
RM
75 Vdc
D.C. Reverse Voltage
MMBD2837LT1G, SMMBD2837LT1G
MMBD2838LT1G
V
R
30
50
Vdc
Peak Forward Current I
FM
450
300
mAdc
Average Rectified Current I
O
150
100
mAdc
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS
Rating Symbol Value Unit
Total Device Dissipation FR− 5 Board
(Note 1) T
A
= 25°C
Derate above 25°C
P
D
225
1.8
mW
mW/°C
Thermal Resistance,
Junction−to−Ambient
R
q
JA
556
°C/W
Total Device Dissipation Alumina
Substrate, (Note 2) T
A
= 25°C
Derate above 25°C
P
D
300
2.4
mW
mW/°C
Thermal Resistance,
Junction−to−Ambient
R
q
JA
417
°C/W
Junction and Storage Temperature T
J
, T
stg
−55 to +150 °C
1. FR−5 = 1.0 0.75 0.062 in.
2. Alumina = 0.4 0.3 0.024 in. 99.5% alumina.
www.onsemi.com
SOT−23 (TO−236AB)
CASE 318
STYLE 9
MARKING DIAGRAM
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
3
CATHODE
2
ANODE
ANODE
1
xxx = Specific Device Code
A5 = MMBD2837LT1G,
SMMBD2837LT1G
MA6 = MMBD2838LT1G
M = Date Code*
G = Pb−Free Package
Device Package Shipping
†
ORDERING INFORMATION
MMBD2837LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
MMBD2838LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
1
xxx M G
G
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
(Note: Microdot may be in either location)
SMMBD2837LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
