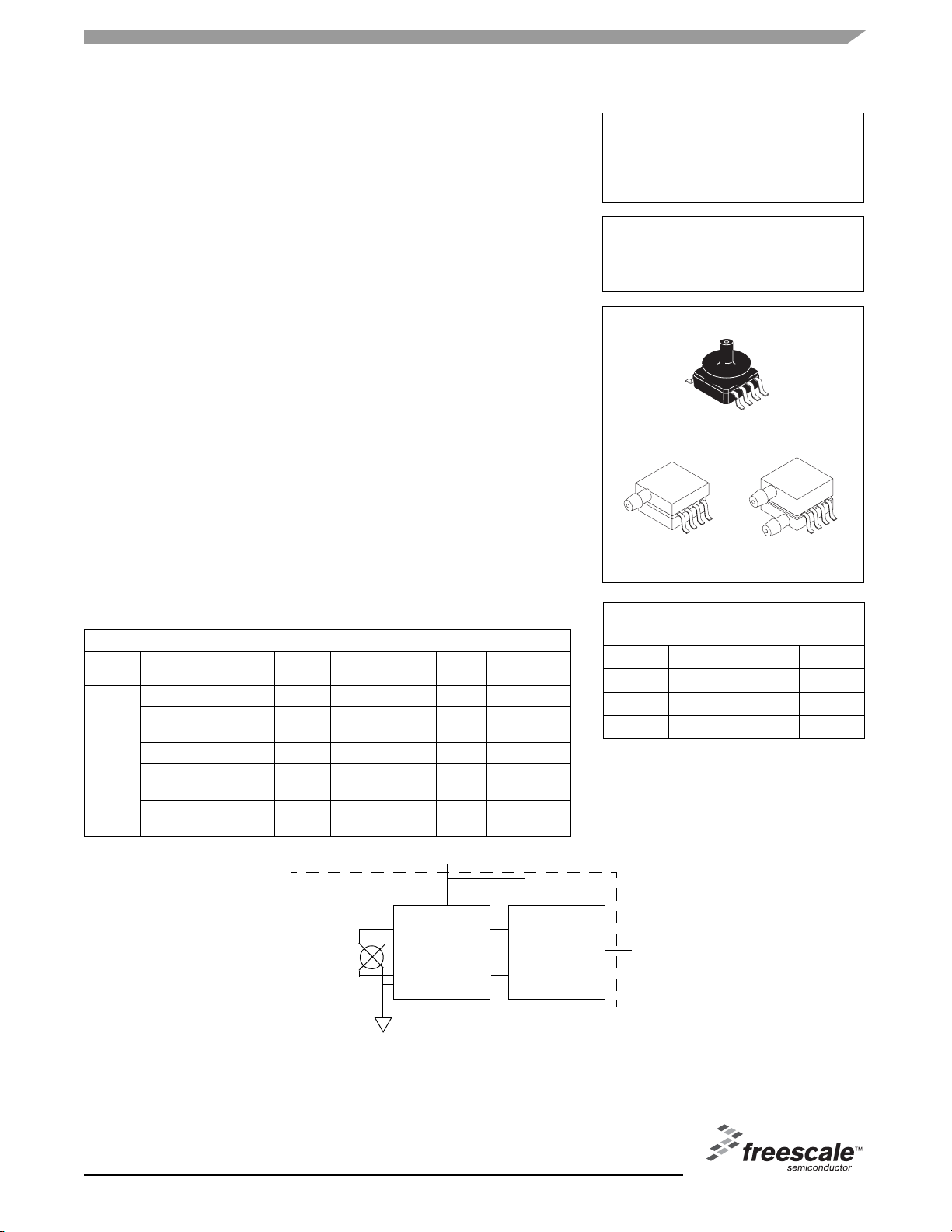

MPXV7002
Rev 1.0, 09/2008
Freescale Semiconductor
Technical Data
© Freescale Semiconductor, Inc., 2005, 2008. All rights reserved.
Integrated Silicon Pressure Sensor
On-Chip Signal Conditioned,
Temperature Compensated and
Calibrated
The MPXV7002 series piezoresistive transducers are state-of-the-art
monolithic silicon pressure sensors designed for a wide range of applications, but
particularly those employing a microcontroller or microprocessor with A/D inputs.
This transducer combines advanced micromachining techniques, thin-film
metallization, and bipolar processing to provide an accurate, high level analog
output signal that is proportional to the applied pressure.
Features
• 2.5% Typical Error over +10°C to +60°C with Auto Zero
• 6.25% Maximum Error over +10°C to +60°C without Auto Zero
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Thermoplastic (PPS) Surface Mount Package
• Temperature Compensated over +10° to +60°C
• Patented Silicon Shear Stress Strain Gauge
• Available in Differential and Gauge Configurations
Typical Applications
• Hospital Beds
•HVAC
• Respiratory Systems
• Process Control
Figure 1. Fully Integrated Pressure Sensor Schematic
ORDERING INFORMATION
Device
Type
Options
Case
No.
MPX Series
Order No.
Packing
Options
Device
Marking
Ported
Elements
Gauge, Axial Port, SMT 482A
MPXV7002GC6U
Rails MPXV
7002G
Gauge, Axial Port, SMT 482A
MPXV
7002G
C6T1
Tape &
Reel
MPXV
7002G
Gauge, Side Port, SMT 1369 MPXV
7002G
P Trays MPXV
7002G
Differential, Dual Port,
SMT
1351 MPXV
7002
DP Trays MPXV
7002DP
Differential, Dual Port,
SMT
1351 MPXV7002DPT1 Tape &
Reel
MPXV7002DP
MPXV7002
SERIES
INTEGRATED
PRESSURE SENSOR
-2 to 2 kPa (-0.3 to 0.3 psi)
0.5 to 4.5 V OUTPUT
SMALL OUTLINE PACKAGE
PIN NUMBERS
(1)
1. Pins 1, 5, 6, 7, and 8 are internal device
connections. Do not connect to external
circuitry or ground. Pin 1 is noted by the
notch in the lead.
1 N/C 5 N/C
2 V
S
6 N/C
3 Gnd 7 N/C
4 V
out
8 N/C
MPXV7002DP
CASE 1351-01
MPXV7002GP
CASE 1369-01
SMALL OUTLINE PACKAGE
MPXV7002GC6U
CASE 482A-01
Sensing
Element
Thin Film
Temperature
Compensation
and
Gain Stage #1
Gain Stage #2
and
Ground
Reference
Shift Circuitry
V
S
V
out
GND
Pins 1 and 5 through 8 are NO CONNECTS
for surface mount package
