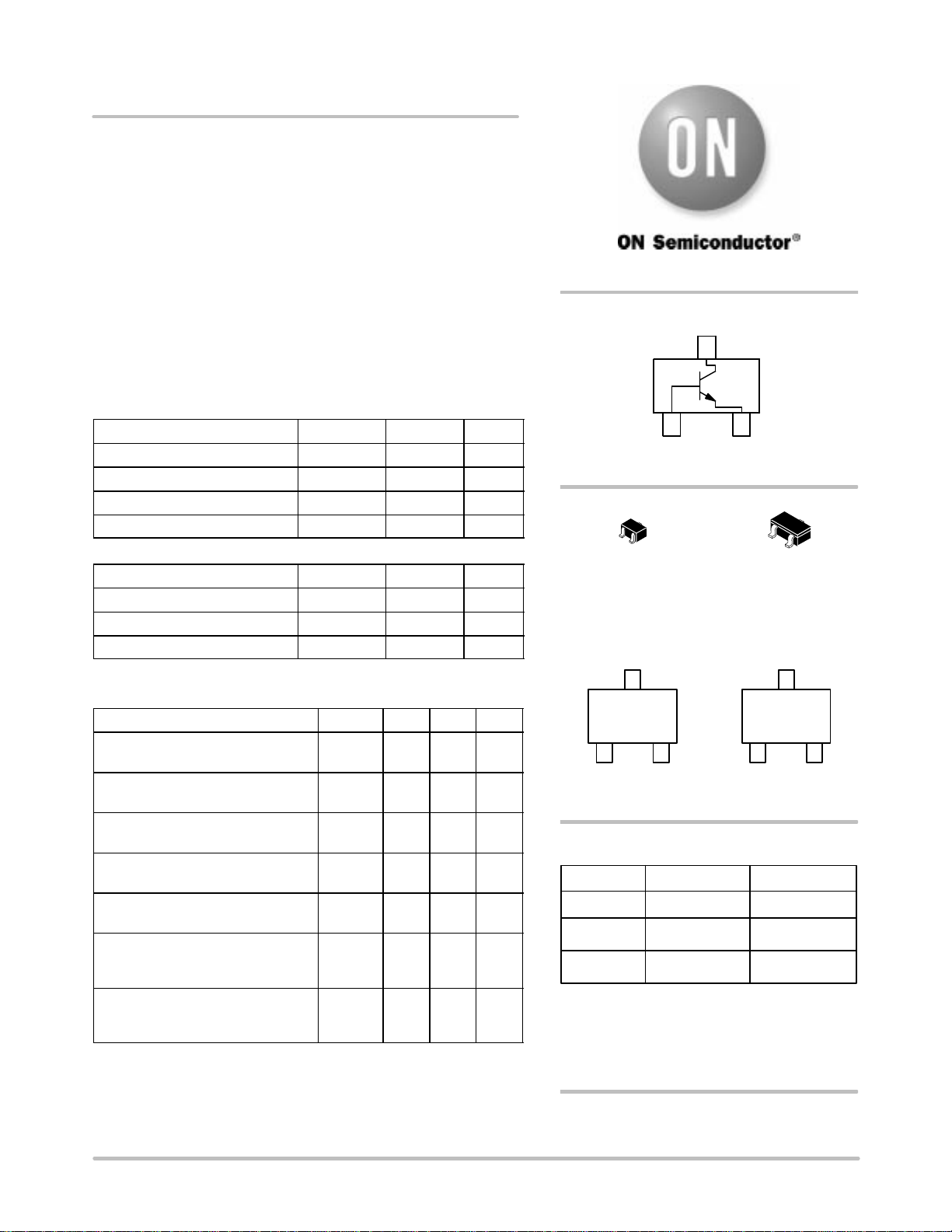

Semiconductor Components Industries, LLC, 2004
January, 2004 − Rev. 6
1 Publication Order Number:
MSD42WT1/D
MSD42WT1, MSD42T1
Preferred Device
NPN Silicon General
Purpose High Voltage
Transistors
This NPN Silicon Planar Transistor is designed for general purpose
amplifier applications. This device is housed in the SC-70/SOT-323 and
SC−59 packages which are designed for low power surface mount
applications.
Features
• Pb−Free Package is Available
MAXIMUM RATINGS (T
A
= 25°C)
Rating Symbol Value Unit
Collector-Base Voltage V
(BR)CBO
300 Vdc
Collector-Emitter Voltage V
(BR)CEO
300 Vdc
Emitter-Base Voltage V
(BR)EBO
6.0 Vdc
Collector Current − Continuous I
C
150 mAdc
THERMAL CHARACTERISTICS
Rating Symbol Max Unit
Power Dissipation (Note 1) P
D
150 mW
Junction Temperature T
J
150 °C
Storage Temperature Range T
stg
−55+150 °C
ELECTRICAL CHARACTERISTICS
Characteristic Symbol Min Max Unit
Collector-Emitter Breakdown Voltage
(I
C
= 1.0 mAdc, I
B
= 0)
V
(BR)CEO
300 − Vdc
Collector-Base Breakdown Voltage
(I
C
= 100 Adc, I
E
= 0)
V
(BR)CBO
300 − Vdc
Emitter-Base Breakdown Voltage
(I
E
= 100 Adc, I
E
= 0)
V
(BR)EBO
6.0 − Vdc
Collector-Base Cutoff Current
(V
CB
= 200 Vdc, I
E
= 0)
I
CBO
− 0.1 A
Emitter−Base Cutoff Current
(V
EB
= 6.0 Vdc, I
B
= 0)
I
EBO
− 0.1 A
DC Current Gain (Note 2)
(V
CE
= 10 Vdc, I
C
= 1.0 mAdc)
(V
CE
= 10 Vdc, I
C
= 30 mAdc)
h
FE1
h
FE2
25
40
−
−
−
Collector-Emitter Saturation Voltage
(Note 2) (I
C
= 20 mAdc,
I
B
= 2.0 mAdc)
V
CE(sat)
− 0.5 Vdc
1. Device mounted on a FR-4 glass epoxy printed circuit board using the minimum
recommended footprint.
2. Pulse Test: Pulse Width ≤ 300 s, D.C. ≤ 2%.
SC−70 (SOT−323)
CASE 419
(SCALE 2:1)
MARKING DIAGRAMS
3
1D M
1
2
Device Package Shipping
†
ORDERING INFORMATION
MSD42WT1 SC−70/SOT−323 3000/Tape & Reel
1D = Device Marking Code
M = Date Code
Preferred devices are recommended choices for future use
and best overall value.
COLLECTOR
3
1
BASE
2
EMITTER
http://onsemi.com
3
1
2
SC−59
CASE 318D
(SCALE 2:1)
J1D M
MSD42T1 SC−59 3000/Tape & Reel
MSD42WT1G 3000/Tape & ReelSC−70/SOT−323
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
