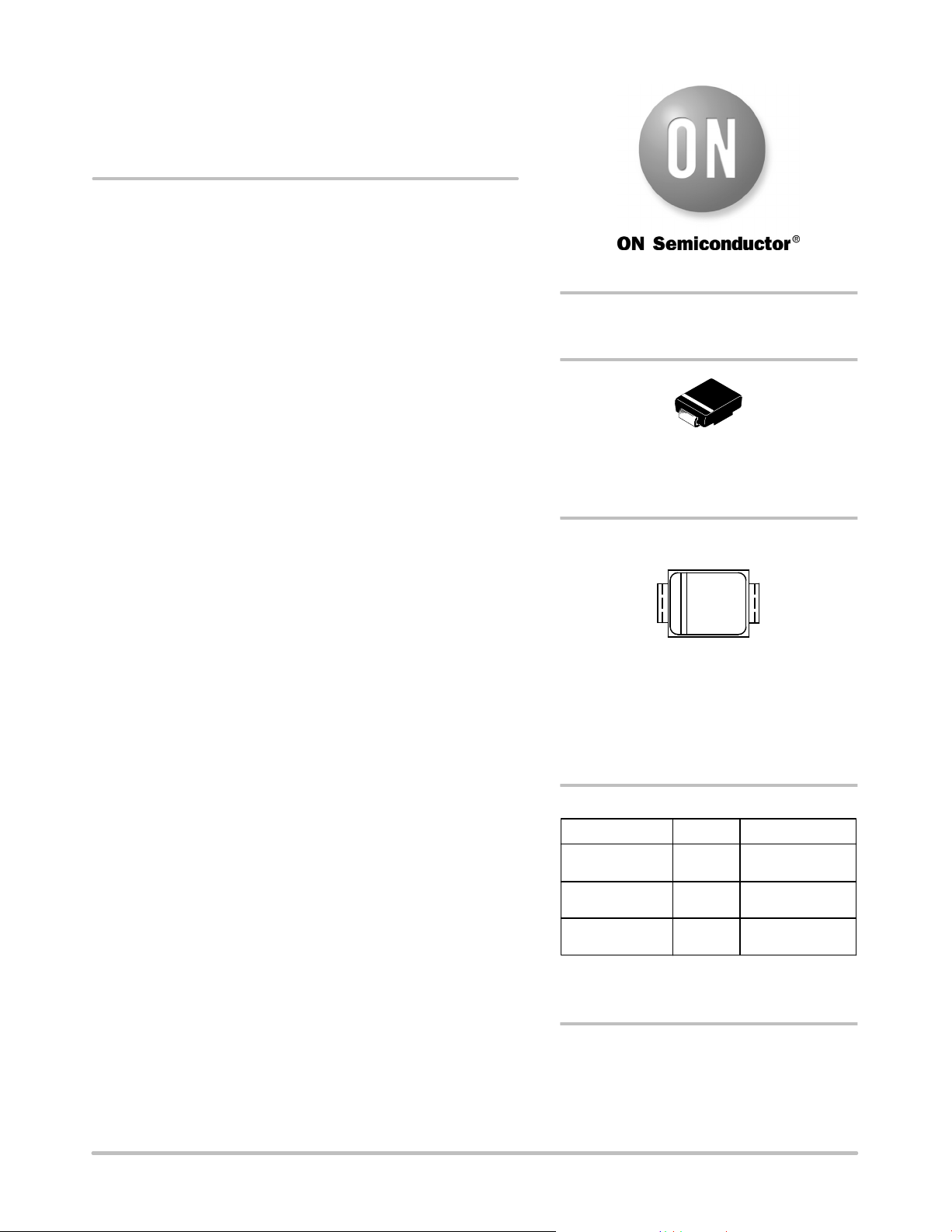

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 4
1 Publication Order Number:
MURA230T3/D
MURA230T3G,
MURA240T3G,
SURA8240T3G
Preferred Devices
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop (0.95 V Max @ 2.0 A, T
J
= 150C)
AEC−Q101 Qualified and PPAP Capable
SURA8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
All Packages are Pb-Free*
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 70 mg (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Polarity: Polarity Band Indicates Cathode Lead
ESD Protection:
Human Body Model > 4000 V (Class 3)
Machine Model > 400 V (Class C)
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
ULTRAFAST RECTIFIERS
2 AMPERES, 300−400 VOLTS
SMA
CASE 403D
STYLE 1
PLASTIC
MARKING DIAGRAM
Preferred devices are recommended choices for future use
and best overall value.
U5Fx = Device Code
x = F for MURA230T3
G for MURA240T3
A = Assembly Location
Y = Year
WW = Work Week
G =Pb−Free Package
http://onsemi.com
SURA8240T3G SMA
(Pb−Free)
5,000/Tape & Reel
MURA230T3G SMA
(Pb−Free)
5,000/Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
U5x
AYWW G
MURA240T3G SMA
(Pb−Free)
5,000/Tape & Reel
