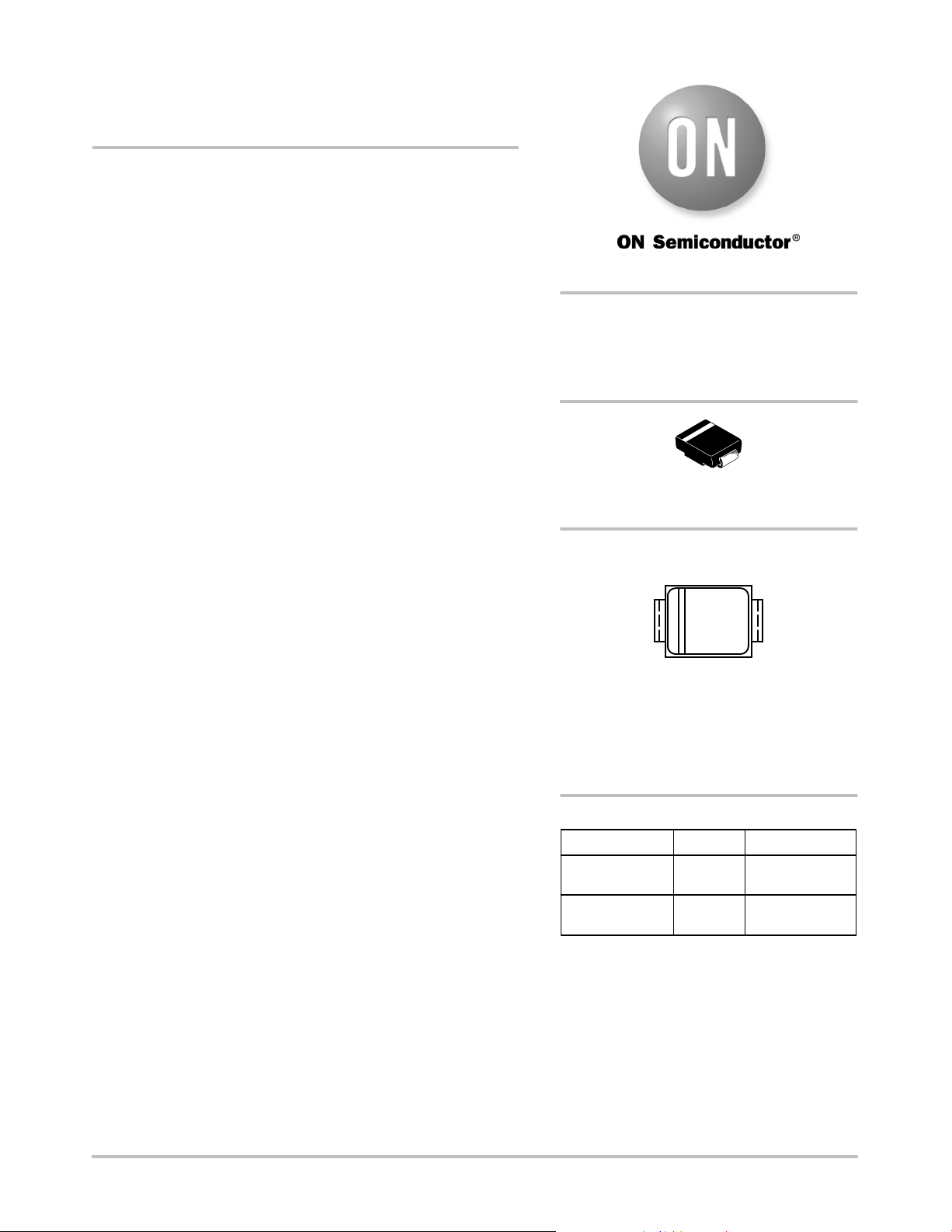

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 3
1 Publication Order Number:
MURS220T3/D
MURS220T3G,
SURS8220T3G
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop
(0.77 Volts Max @ 2.0 A, T
J
= 150C)
AEC−Q101 Qualified and PPAP Capable
SURS8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 95 mg (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Shipped in 12 mm Tape and Reel, 2500 units per reel
Polarity: Polarity Band Indicates Cathode Lead
Marking: U2D
These Packages are Pb-Free*
ESD Ratings:
Machine Model = C (> 400 V)
Human Body Model = 3B (> 8 kV)
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ULTRAFAST RECTIFIERS
2 AMPERES
200 VOLTS
Device Package Shipping
†
ORDERING INFORMATION
SMB
CASE 403A
MARKING DIAGRAM
U2D = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb-Free Package
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
MURS220T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
SURS8220T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
(Note: Microdot may be in either location)
AYWW
U2DG
G
