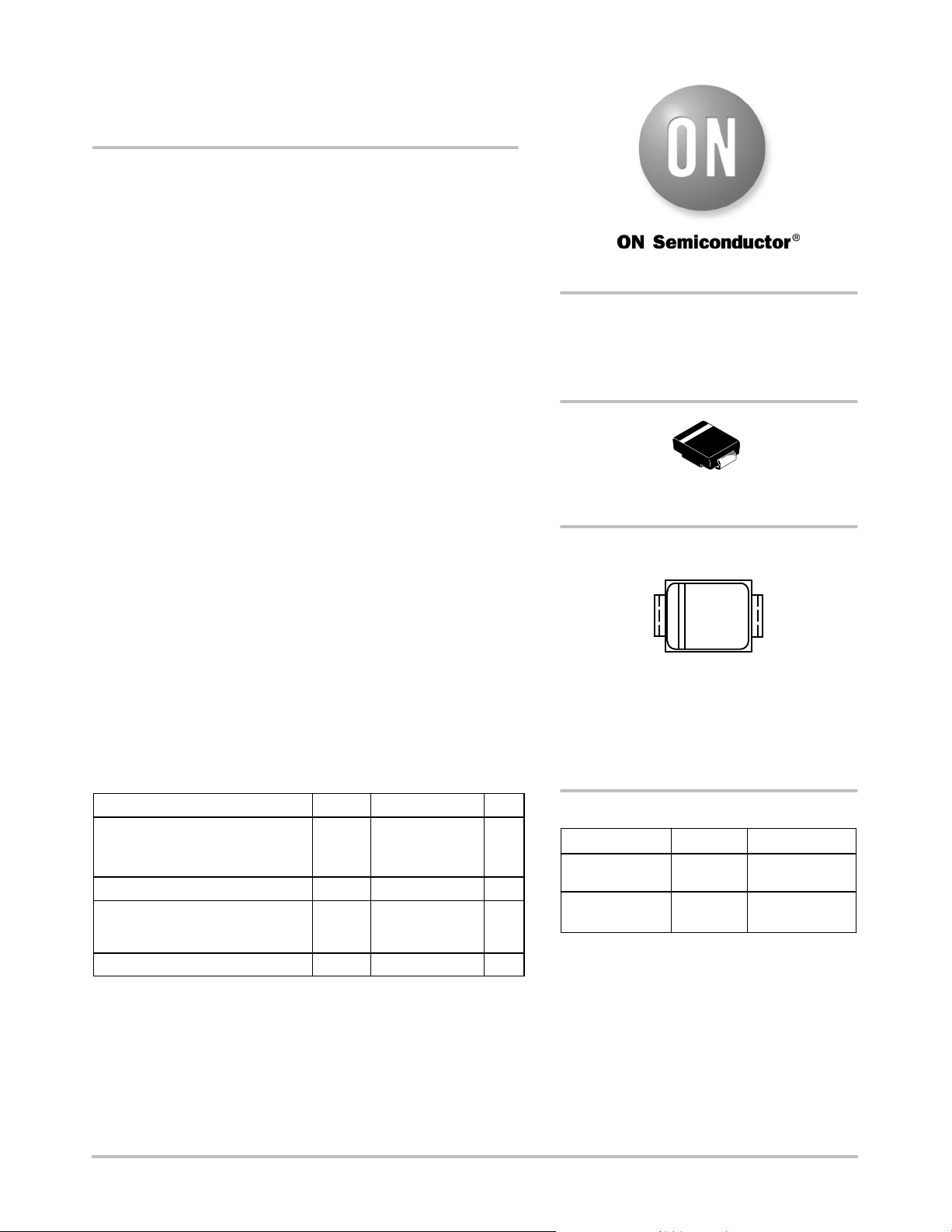

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 3
1 Publication Order Number:
MURS260T3/D
MURS260T3G,
SURS8260T3G
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
Pb−Free Package*
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop (1.20 Volts Max @ 2.0 A, T
J
= 150C)
AEC−Q101 Qualified and PPAP Capable
SURS8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
Mechanical Characteristics
Case: Epoxy, Molded
Weight: 95 mg (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Polarity: Polarity Band Indicates Cathode Lead
ESD Ratings:
Machine Model = C (> 400 V)
Human Body Model = 3B (> 8 kV)
MAXIMUM RATINGS
Rating Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
600 V
Average Rectified Forward Current I
F(AV)
2.0 @ T
L
= 125C A
Non−Repetitive Peak Surge Current
(Surge applied at rated load conditions
halfwave, single phase, 60 Hz)
I
FSM
35 A
Operating Junction Temperature T
J
*65 to +175 C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ULTRAFAST RECTIFIERS
2 AMPERES
600 VOLTS
Device Package Shipping
†
ORDERING INFORMATION
MARKING DIAGRAM
SMB
CASE 403A
http://onsemi.com
MURS260T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
U2J = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb-Free Package
(Note: Microdot may be in either location)
AYWW
U2JG
G
SURS8260T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
