© Semiconductor Components Industries, LLC, 2009
October, 2009 − Rev. 3
1 Publication Order Number:
NBXDBB018/D

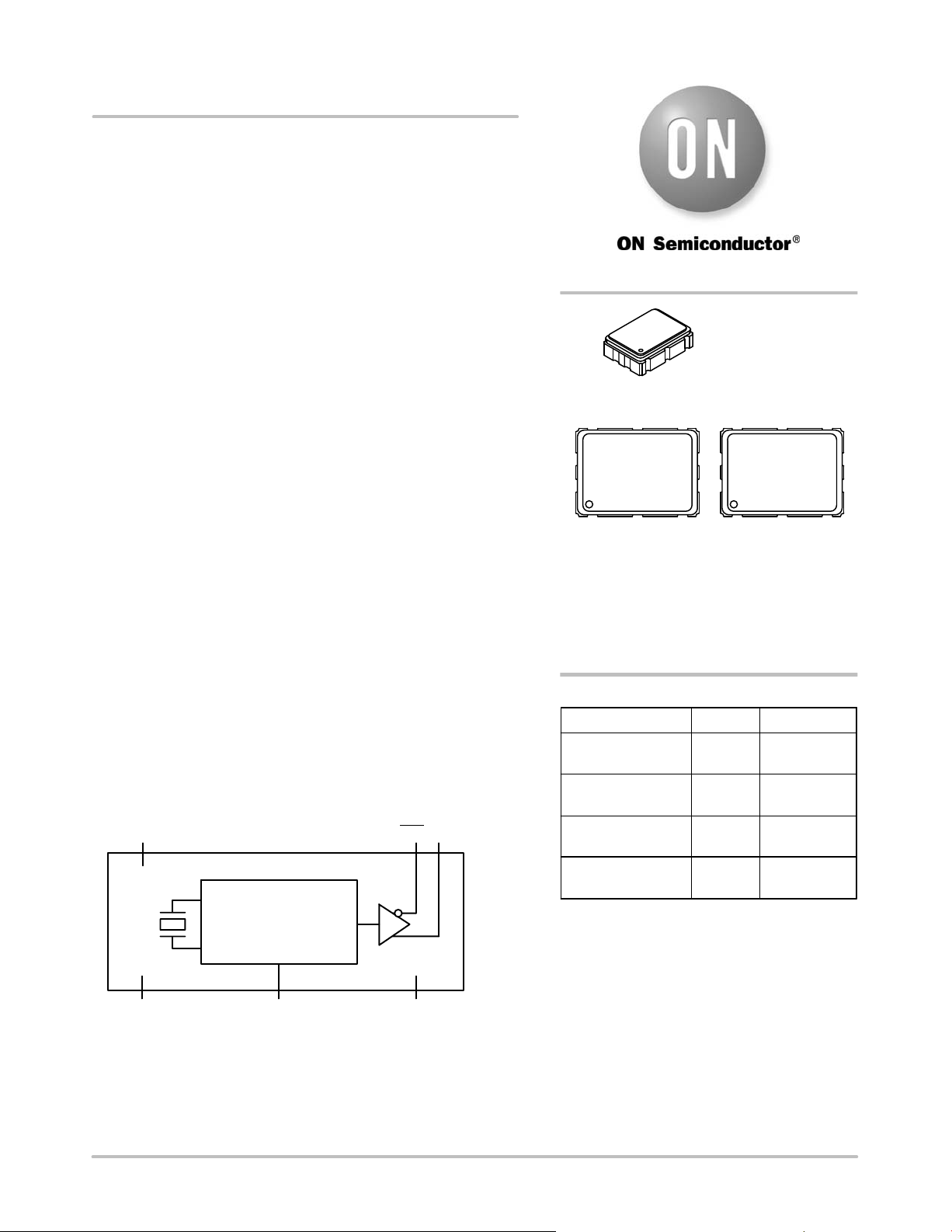

NBXDBB018, NBXDBA018
3.3 V, 155.52 MHz /
311.04MHz LVPECL Clock
Oscillator
The NBXDBB018 dual frequency crystal oscillator (XO) is
designed to meet today’s requirements for 3.3 V LVPECL clock
generation applications. The device uses a high Q fundamental crystal
and Phase Lock Loop (PLL) multiplier to provide selectable 155.52
MHz or 311.04 MHz, ultra low jitter and phase noise LVPECL
differential output.
This device is a member of ON Semiconductor’s PureEdget clock
family that provides accurate and precision clock solutions.
Available in 5 mm x 7 mm SMD (CLCC) package on 16 mm tape
and reel in quantities of 1000. Frequency stability options available as
either 50 PPM NBXDBA018 (Industrial Temperature Range) or
20 PPM NBXDBB018 (Commercial Temperature Range).
Features
• LVPECL Differential Output
• Uses High Q Fundamental Mode Crystal and PLL Multiplier
• Ultra Low Jitter and Phase Noise − 0.4 ps (12 kHz − 20 MHz)
• Selectable Output Frequency − 155.52 MHz (default) / 311.04 MHz
• Hermetically Sealed Ceramic SMD Package
• RoHS Compliant
• Operating Range 3.3 V ±10%
• Total Frequency Stability − ±20 PPM or ±50 PPM
• This is a Pb−Free Device
Applications
• Networking
• SONET
• SDH
Figure 1. Simplified Logic Diagram
PLL
Clock
Multiplier
Crystal
GNDFSELOE
CLK CLKV
DD
654
123
http://onsemi.com
Device Package Shipping
†
ORDERING INFORMATION
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
NBXDBB018LN1TAG CLCC−6
(Pb−Free)
1000/
Tape & Reel
MARKING DIAGRAM
NBXDBA018 = NBXDBA018 (±50 PPM)
NBXDBB018 = NBXDBB018 (±20 PPM)
155.52/311.04 = Output Frequency (MHz)
AA = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G = Pb−Free Package
6 PIN CLCC
LN SUFFIX
CASE 848AB
NBXDBB018
155.52/311.04
AAWLYYWWG
NBXDBA018LN1TAG CLCC−6
(Pb−Free)
1000/
Tape & Reel
NBXDBA018
155.52/311.04
AAWLYYWWG
NBXDBB018LNHTAG CLCC−6
(Pb−Free)
100/
Tape & Reel
NBXDBA018LNHTAG CLCC−6
(Pb−Free)
100/
Tape & Reel
