MBRS130T3G,
NRVBS130T3G
Surface Mount
Schottky Power Rectifier
This device employs the Schottky Barrier principle in a large area
metal−to−silicon power diode. State−of−the−art geometry features
epitaxial construction with oxide passivation and metal overlay
contact. Ideally suited for low voltage, high frequency rectification, or
as free wheeling and polarity protection diodes in surface mount
applications where compact size and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop (0.6 Volts Max @ 1.0 A, T
J
= 25°C)
• Excellent Ability to Withstand Reverse Avalanche Energy Transients
• Guardring for Stress Protection
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable*
• These are Pb−Free Devices
Mechanical Characteristics
• Case: Epoxy, Molded
• Weight: 95 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Shipped in 12 mm Tape and Reel, 2500 units per reel
• Cathode Polarity Band
Device Package Shipping
†
ORDERING INFORMATION
www.
onsemi.com
MBRS130T3G SMB
(Pb−Free)
2500 / Tape & Reel
SCHOTTKY BARRIER
RECTIFIER
1.0 AMPERE
30 VOLTS

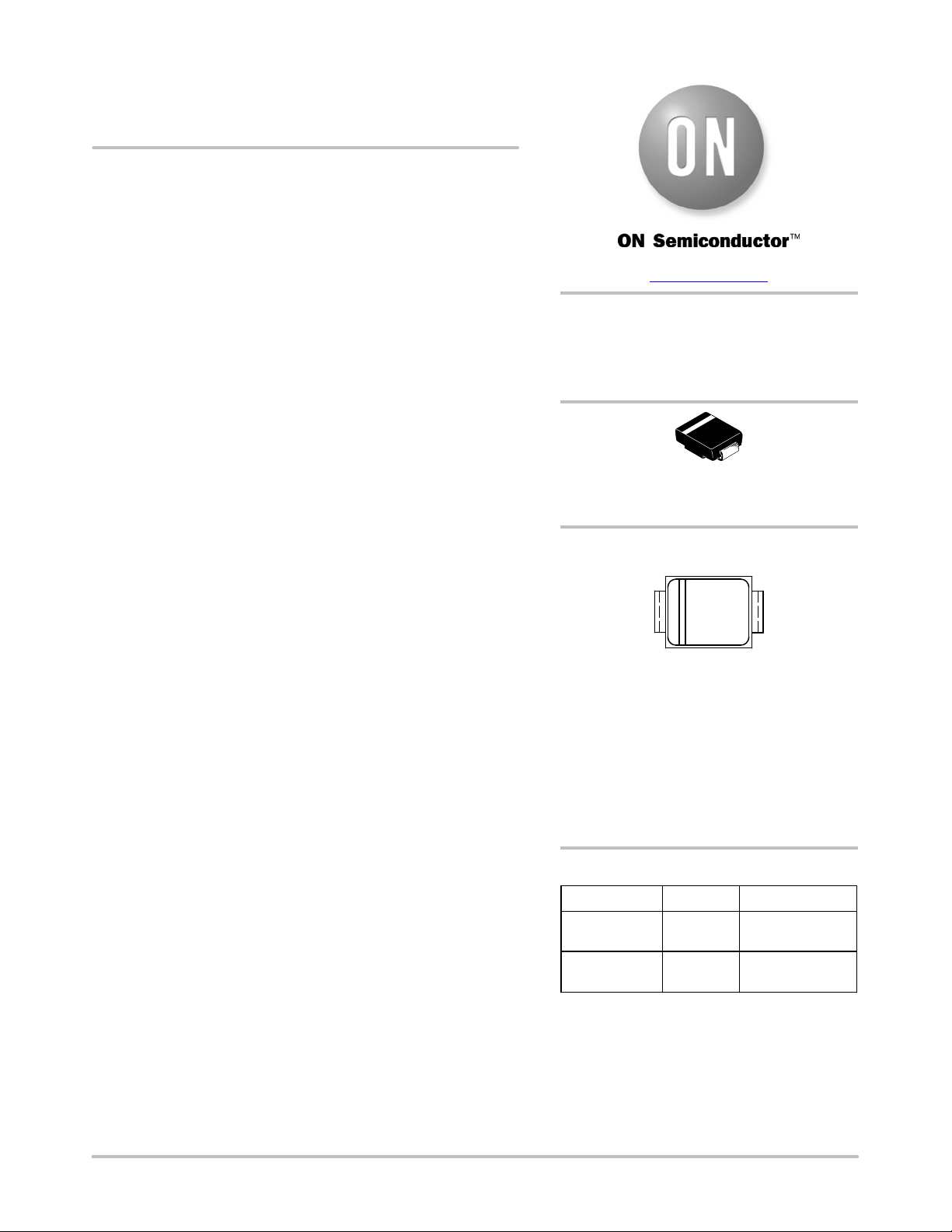

MARKING DIAGRAM
NRVBS130T3G* SMB
(Pb−Free)
2500 / Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
(Note: Microdot may be in either location)
**The Assembly Location code (A) is front side
optional. In cases where the Assembly Location is
stamped in the package bottom (molding ejecter pin),
the front side assembly code may be blank.
SMB
CASE 403A
A = Assembly Location**
Y = Year
WW = Work Week
G = Pb−Free Package
AYWW
B13G
G
