© Semiconductor Components Industries, LLC, 2009
October, 2017 − Rev. 6
1 Publication Order Number:
NSQA6V8AW5T2/D

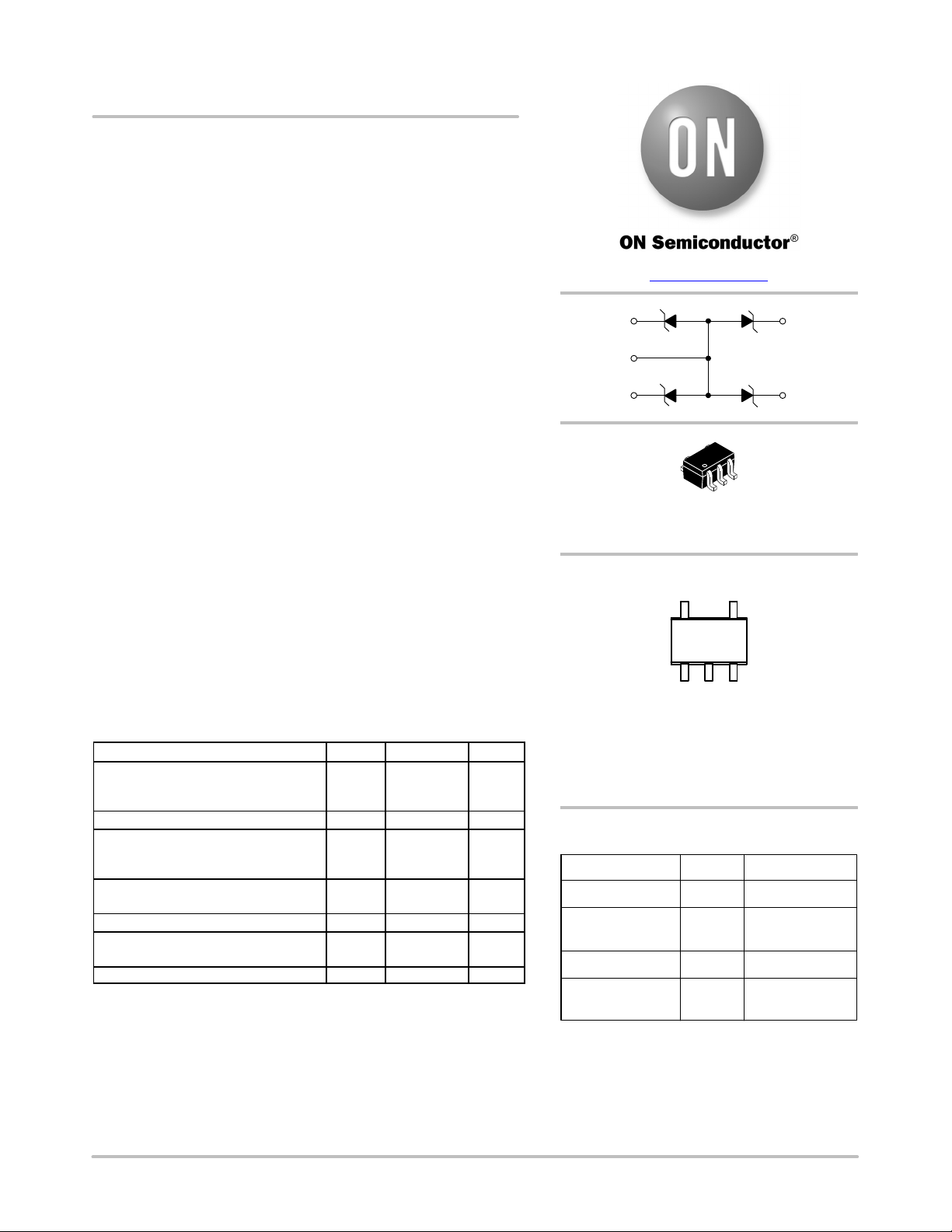

NSQA6V8AW5T2 Series
ESD Protection Diode
Single Line CAN/LIN Bus Protector
This integrated surge protection device (surge protection) is
designed for applications requiring transient overvoltage protection. It
is intended for use in sensitive equipment such as computers, printers,
business machines, communication systems, medical equipment, and
other applications. Its integrated design provides very effective and
reliable protection for four separate lines using only one package.
These devices are ideal for situations where board space is at a premium.
Features
• Low Clamping Voltage
• Small SC−88A SMT Package
• Stand Off Voltage: 5 V
• Low Leakage Current < 1 mA
• Four Separate Unidirectional Configurations for Protection
• ESD Protection: IEC61000−4−2: Level 4
MILSTD 883C − Method 3015−6: Class 3
• Pb−Free Packages are Available
Benefits
• Provides Protection for ESD Industry Standards: IEC 61000, HBM
• Minimize Power Consumption of the System
• Minimize PCB Board Space
Typical Applications
• Instrumentation Equipment
• Serial and Parallel Ports
• Microprocessor Based Equipment
• Notebooks, Desktops, Servers
• Cellular and Portable Equipment
MAXIMUM RATINGS (T
A
= 25°C unless otherwise noted)
Rating
Symbol Value Unit
Peak Power Dissipation
8 20 msec Double Exponential
Waveform (Note 1)
P
PK
20 W
Steady State Power − 1 Diode (Note 2) P
D
380 mW
Thermal Resistance −
Junction−to−Ambient
Above 25°C, Derate
R
q
JA
327
3.05
°C/W
mW/°C
Operating Junction Temperature
Range
T
J
−40 to +125 °C
Storage Temperature Range T
stg
−55 to +150 °C
Lead Solder Temperature − Maximum
10 Seconds Duration
T
L
260 °C
IEC ^1000−4−2 (ESD) Contact $8.0 kV
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Non−repetitive current pulse per Figure 6.
2. Only 1 diode under power. For all 4 diodes under power, P
D
will be 25%.
Mounted on FR4 board with min pad.
See Application Note AND8308/D for further description of survivability specs.
5
4
1
2
3
Device Package Shipping
†
ORDERING INFORMATION
NSQA6V8AW5T2 SC−88A 3000/Tape & Reel
x = H for NSQA6V8AW5T2
X for NSQA12VAW5T2
M = Date Code
G = Pb−Free Package
MARKING DIAGRAM
www.onsemi.com
SC−88A/SOT−353
CASE 419A−02
132
45
NSQA6V8AW5T2G SC−88A
(Pb−Free)
3000/Tape & Reel
NSQA12VAW5T2 3000/Tape & ReelSC−88A
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
NSQA12VAW5T2G 3000/Tape & ReelSC−88A
(Pb−Free)
6x MG
G
(Note: Microdot may be in either location)
