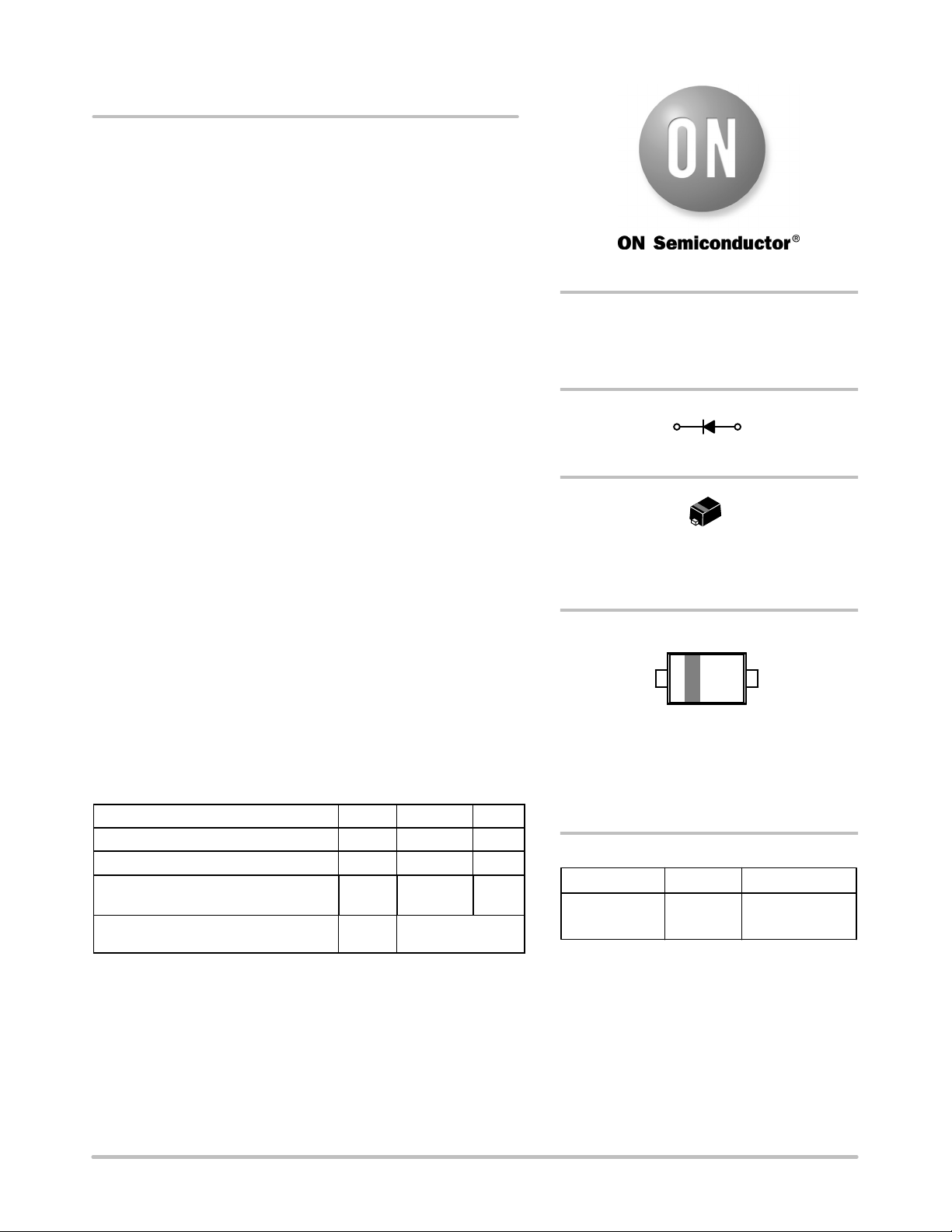

© Semiconductor Components Industries, LLC, 2008
July, 2008 − Rev. 1
1 Publication Order Number:
NSR0520V2T1/D
NSR0520V2T1G
Schottky Barrier Diode
Schottky barrier diodes are optimized for very low forward voltage
drop and low leakage current and are used in a wide range of dc−dc
converter, clamping and protection applications in portable devices.
NSR0520V2 in a SOD−523 miniature package enables designers to
meet the challenging task of achieving higher efficiency and meeting
reduced space requirements.
Features
• Very Low Forward Voltage Drop − 325 mV @ 100 mA
• Low Reverse Current − 8.0 mA @ 10 V
• Continuous Forward Current − 500 mA
• Power Dissipation with Minimum Trace − 170 mW
• Very High Switching Speed − 12 ns @ 10 mA
• Low Capacitance − 35 pF @ 1.0 V
• This is a Pb−Free Device
Typical Applications
• LCD and Keypad Backlighting
• Camera Photo Flash
• Buck and Boost dc−dc Converters
• Reverse Voltage and Current Protection
• Clamping and Protection
Markets
• Mobile Handsets
• MP3 Players
• Digital Camera and Camcorders
• Notebook PCs & PDAs
• GPS
MAXIMUM RATINGS
Rating Symbol Value Unit
Reverse Voltage V
R
20 Vdc
Forward Continuous Current (DC) I
F
500 mA
Non−Repetitive Peak Forward Surge
Current
I
FSM
2.0 A
ESD Rating: Human Body Model
Machine Model
ESD Class 3B
Class C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
20 VOLT SCHOTTKY
BARRIER DIODE
Device Package Shipping
†
ORDERING INFORMATION
1
CATHODE
2
ANODE
NSR0520V2T1G SOD−523*
(Pb−Free)
3000/Tape & Reel
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
SOD−523
CASE 502
PLASTIC
MARKING DIAGRAM
1
2
12
*This package is inherently Pb−Free.
AA = Device Code
M = Date Code*
G = Pb−Free Package
*Date Code orientation position may vary depending
upon manufacturing location.
(Note: Microdot may be in either location)
AA MG
G
